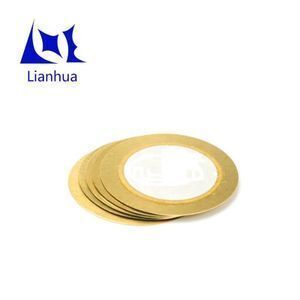

50mm piezo disc LFT-50T-3.0A1 piezo ceramic disc 50 mm piezo element
-
Supplier: Changzhou Wujin Lianhua Electronics Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Betty Wu -
Price: $0.12 /piece -
Min. Order: 1 piece
| Place of Origin: | Jiangsu China; | Packaging Detail: | 3K pieces per carton 50mm piezo disc LFT-50T-3.0A1 piezo ceramic disc 50 mm piezo element; |
| Model Number: | LFT-50T-3.0A1; | Port: | Shanghai,Ningbo,Qingdao,Shenzhen,Guangdong; |
| Brand Name: | Lianhua; | Supply Ability: | 300000 Piece/Pieces per Month 50mm piezo disc; |
| RoHS: | Yes; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Trade Assurance; |
| Type: | Piezoelectric Ceramics; | Material: | Brass; |
SPECIFICATION | |||
piezoelectric element | |||
1 | Model No. | FT-50T-3.0A1 | |
2 | Input Voltage (Vp-p) | 30 max | |
3 | Resonant Frequency (KHz) | 3.0±0.5 | |
4 | Resonant Impedance (Ω) | 500max | |
5 | Capacitance 1000Hz (PF) | 30000±30% | |
6 | Operating Temperature (°C) | -20~+70 | |
7 | Storage Temperature (°C) | -30~+80 | |
8 | Metal plate diameter (mm)"D" | φ50±0.1 | |
9 | Ceramic plate diameter (mm) “d” | Φ25±0.4 | |
9 | Metal plate Thickness (mm)"t" | 0.205±0.03 | |
10 | Total Thickness (mm)"T" | 0.43±0.04 | |
11 | Metal Material | Brass (H65) | |
*Applying rated voltage (Resonant frequency, Square wave) | |||

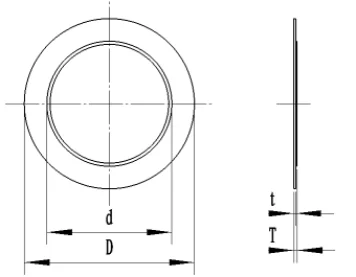

Dimensions | Unit: mm Tolerance: ±0.5mm Except Specified | ||
| |||
we can Supply FREE samples for customer test, develop new product to meet customer require, try our best to satisfy with customer, high quality,reasonable price and good service
Q: What is your MOQ of this item? |
A: 5000pcs. |
Q: Where is your loading port? |
A: Shanghai port or other port in China. |
Q: What is your payment term? |
A: TT in advance or LC at sight. |
Q: What is the lead time? |
A: Normally 20-30days. |
Q: What is your company’s available production capacity? |
A: 10000pcs/day |
Q: Could you provide sample? |
A: Of course,we are glad to provide free sample to you. |
