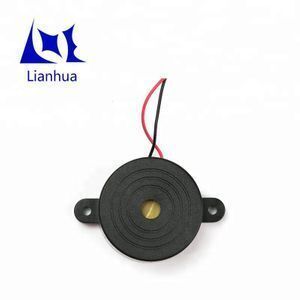

90dB 100dB 110dB Loud buzzer LPB4216SW DC 12V 24V alarm piezo buzzer
-
Supplier: Changzhou Wujin Lianhua Electronics Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Betty Wu -
Price: $0.45 / >=10 pieces -
Min. Order: 10 pieces
| Place of Origin: | Jiangsu China; | Model Number: | LPB4216SW-TA-12-2.8-R; |
| Type: | Buzzer; | Dimension: | 42*16MM; |
| Packaging Detail: | 1.250 PCS per box 2.Total 4 boxes per carton 3.Total 1000 PCS carton 4.Volume:52.5*45.5*22.5cm 90dB 100dB 110dB Loud buzzer LPB4216SW DC 12V 24V buzzer alarm piezo buzzer 5.Gross weight: 12.5kgs; | Resonant Frequency: | 2800 ± 500Hz; |
| RoHS: | Yes; | Color: | Black; |
| Operating Voltage: | 3~20 VDC; | SPL: | 100dB min.; |
| Port: | Shanghai; | Housing Material: | ABS; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Brand Name: | Lianhua; |
| Supply Ability: | 4000 Piece/Pieces per Day; | Rated Voltage: | 12V DC; |
| Tone: | Continuous; | MPQ: | 250PCS; |
1. Piezo Buzzer Description
Rated Voltage | (VDC) | 12 |
Operating Voltage | (VDC) | 3~20 |
*Rated Current | (mA) | ≤12 |
*Sound Output at 30cm | (dB) | ≥100 |
*Resonance Frequency | (KHz) | 2.8±0.5 |
Tone |
| Continuous |
Operating Temperature | (℃) | -20~+70 |
Storage Temperature | (℃) | -30~+80 |
Weight | (g) | 12 |
Housing Material |
| ABS |
RoHS |
| Yes |
*Value applying at rated voltage.
Test basic state: Temp(20±2℃) , Humidity(40~70%RH) , Air pressure(860~1060hPa).
2. Piezo Buzzer Dimensions
3. Piezo Buzzer Frequency Curve
4. Certifications
5. Piezo Buzzer FAQ
Q: What is your MOQ of this piezo buzzer? |
A: 1000pcs. |
Q: Where is your loading port? |
A: Shanghai port or other port in China. |
Q: What is your payment term? |
A: TT in advance or LC at sight. |
Q: What is the lead time? |
A: Normally 5 days. |
Q: What is your company’s available production capacity? |
A: 50000pcs/day |
Q: Could you provide sample? |
A: Of course,we are glad to provide free sample to you |
6. Contact Us
-
