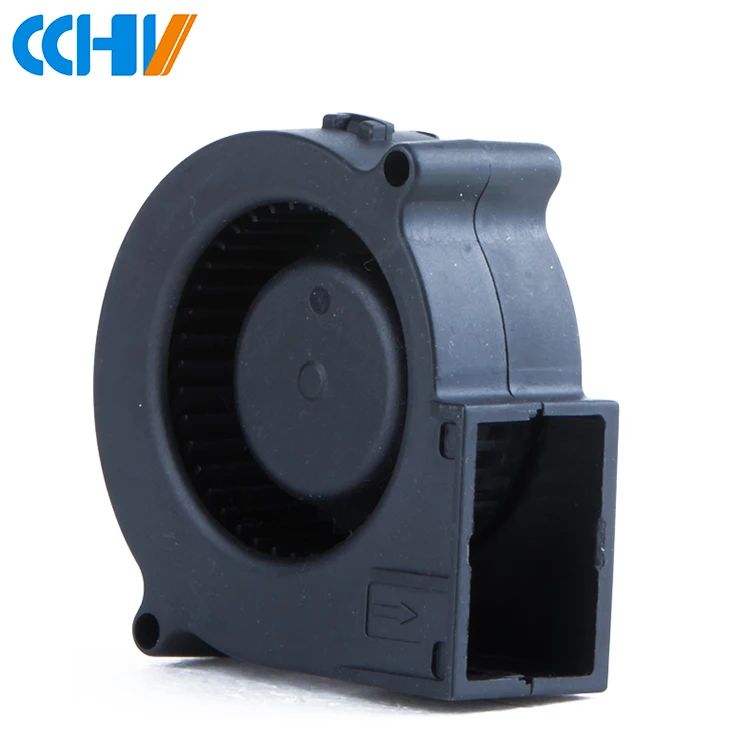

3 Inch 75*75*30mm 7530 PWM DC 6V 9V 12V Silent Ventilator Air Blower Fan
- 2.98 >=100 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Warranty: | 3 years; | Packaging Detail: | Tray + Carton + Pallet or Packed per customer requirement; |
| Certification: | ce,ROHS,UL; | Mounting: | FREE STANDING; |
| Blade Material: | plastic; | impeller & frame: | PBT; |
| Port: | Shenzhen, Guangzhou; | Static Pressure: | 4.826-20.878mmAq; |
| Product type: | DC BLOWER FAN; | Type: | Centrifugal Fan; |
| Payment Terms: | T/T,Western Union,MoneyGram; | Place of Origin: | Guangdong China; |
| Electric Current Type: | DC; | Brand Name: | CCHV; |
| After-sales Service Provided: | Video technical support; | Bearing Type: | Hydraulic or Two-Ball; |
| Product name: | 3 inch 75*75*30mm 7530 dc 6v 9v 12vsilent ventilator air blower fan; | Size: | 75mm x 75mm x 30mm; |
| Voltage: | 12V/24V; | Supply Ability: | 2.4E7 Unit/Units per Year; |
3 Inch 75*75*30mm 7530 PWM DC 6V 9V 12V Silent Ventilator Air Blower Fan
Product Parameter
| Size: | 75mm x 75mm x 30mm |
| Speed: | 2200RPM-4200RPM |
| Voltage | 12V/24V |
| Static Pressure: | 4.826-20.878mmAq |
| Air Volume: | 6.893cfm-13.079cfm |
| Wire: | 2 pin, 3pin or 4pin with Customized connector |
| Bearing Type: | Hydraulic or Two-Ball |
| We specialize in producing DC/EC brushless cooling blower fan for more than 10 years. | |

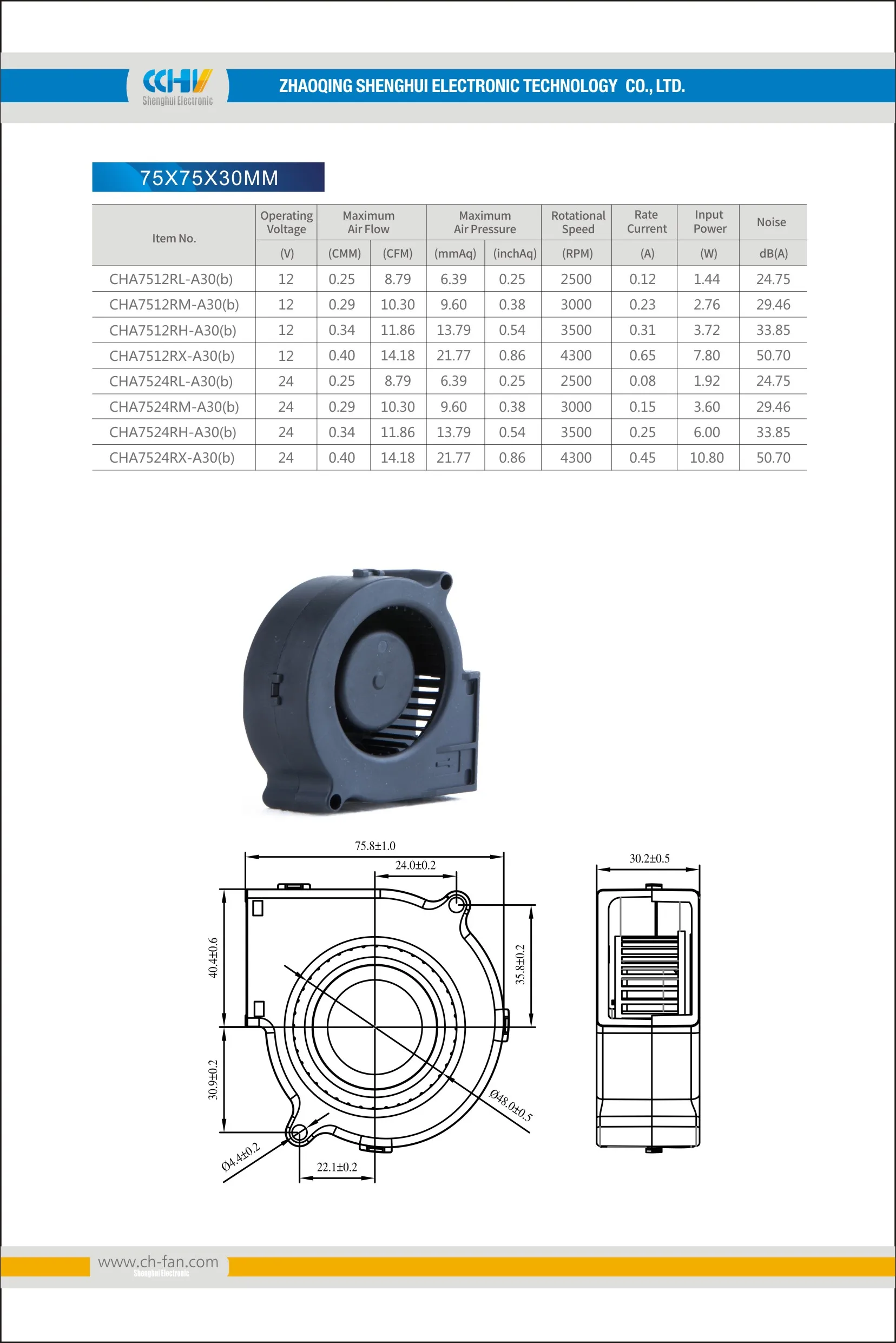

Product Dimensions
Click here for more information
