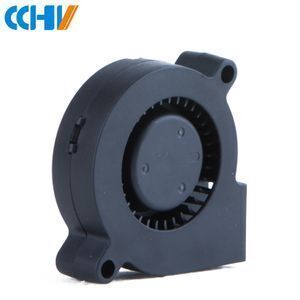

dc 12v 50mm centrifugal cooling 50x50x15 blower fan
- 1.24 >=100 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Detail: | Tray + Carton + Pallet or Packed per customer requirement; | Port: | Shenzhen, Guangzhou; |
| Voltage: | 5V/12V/24V; | Mounting: | Free Standing; |
| Place of Origin: | Guangdong China; | Noise: | 28.1-46.6dBA; |
| Certification: | CCC,CE,CSA,ROHS,UL; | Plastic: | PBT; |
| Type: | Centrifugal Fan; | Supply Ability: | 24000000 Unit/Units per Year; |
| Electric Current Type: | DC; | Static Pressure: | 16.9mmAq; |
| Size: | 50mm x 50mm x 15mm; | Brand Name: | CCHV; |
| Warranty: | 2 years; | Bearing Type: | Hydraulic or Two-Ball; |
| Payment Terms: | T/T,Western Union,MoneyGram; | Blade Material: | Plastic; |
| After-sales Service Provided: | Video technical support,Engineers available to service machinery overseas; |

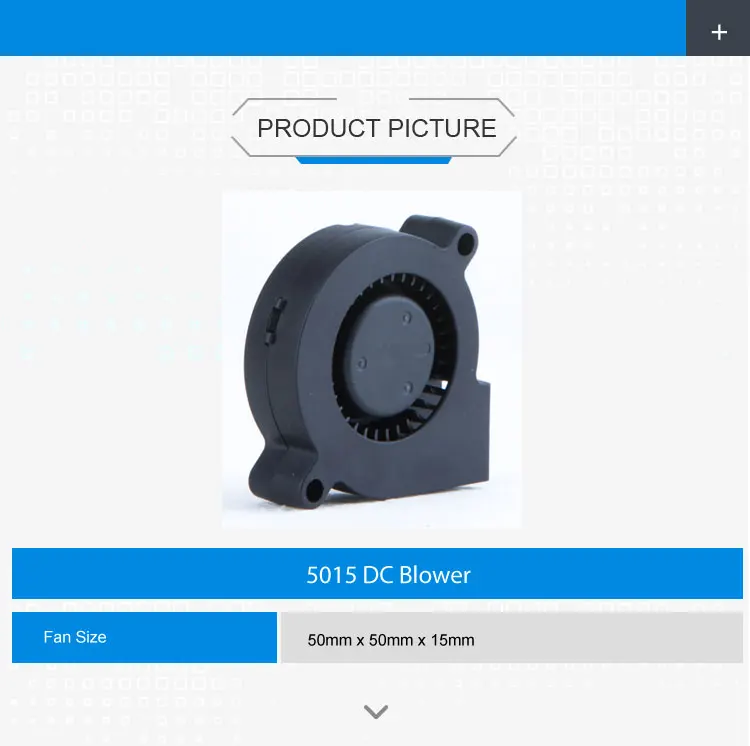

dc 12v 50mm centrifugal cooling 50x50x15 blower fan
Product Parameter
| Size: | 50mm x 50mm x 15mm |
| Speed: | 3500RPM-6500RPM |
| Voltage | 5V/12V/24V |
| Static Pressure: | 16.9mmAq |
| Air Volume: | 2.38cfm-19.90cfm |
| Wire: | 2 pin, 3pin or 4pin with Customized connector |
| Bearing Type: | Hydraulic or Two-Ball |
| We specialize in producing DC/EC brushless cooling fan for more than 10 years. | |

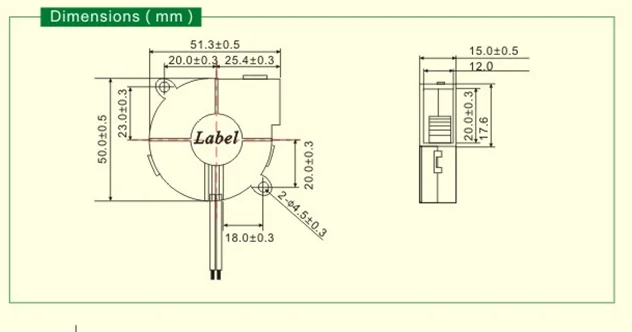

Product Dimensions
Click here for more information
