GFG-200 High Efficiency Boiling Dryer Fluid Bed Drying Machine for granules powder

Product details
Local Service Location:United States,Brazil,Peru,Pakistan,Mexico,Argentina,Chile,Colombia;Air volume of Blender Fan(M3/h):6032;
Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops,Phaemaceutical Industry;Air pressure of Blender Fan(pa):787;
Warranty:1 YEAR;Reference size for installation machine:3500*1950*3300mm(L*W*H);
Package Preview:;Temperature of inlet air (℃):indoor ~100℃ adjusting;
Port:Ningbo or Shanghai;Packaging Detail:Exported Wooden Cases;
Type:Fluid Bed Drying Equipment;Brand Name:LTPM CHINA;
Model:GFG-200;Payment Terms:L/C,D/A,D/P,Western Union,MoneyGram;
Production capacity(kg\batch):120-200;Key Selling Points:High Productivity;
Power of Motor(kw):23;After Warranty Service:Online support;
Condition:New;Power(W):23kw;
Application:Medicine Processing,Chemicals Processing,Food Processing,granules and powder;Voltage:380V/220V;
Dimension(L*W*H):3500*1950*3300mm(L*W*H);Capacity of material bucket(L):670;
Place of Origin:Zhejiang China;Certification:CE/ISO9001/GMP;
Height of main body(meters):3300;Showroom Location:United States,Pakistan,Colombia;
After-sales Service Provided:Online support,Engineers available to service machinery overseas;Supply Ability:20 Set/Sets per Month;

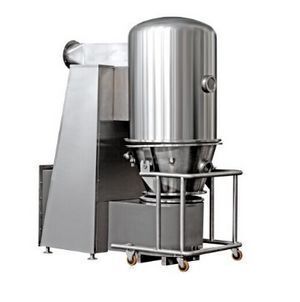

GFG-200 High Efficiency Boiling Dryer

(Fluid Bed Drying Machine)



GFG-200 High Efficiency Boiling Dryer

Includes:

1.Main machine

2.Control cabinet

3.Electric heating pipe

4.Whole body stainless steel 304

5.Button control



Application:

1.Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on.

2.Large granules, small block, viscous block granular materials.

3.The materials such as Konjak, polyacry lamide and so on , which will have the volume changed during drying.



Machine Installation:

Principle:

After air is purified and heated, then it will be introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.



Feature:

1.Fluidized bed is round so that to avoid the dead corner.

2.Inside the bed has installed a mixer, so that to avoid damp materials agglomerating and the channeling during drying.

3.The cloth-bag filter at the top is made of the special antistatic fibers to ensure the safety of the operation.

4.Overturning discharge of the machine is convenient, quick and complete.

5.Operated at sealed negative pressure and designed by GMP.

6.This equipment can be designed and manufactured to be feeding



Main Technical Data:



Pictures of Machine:



Our Services:

1.We have seven technicians who gets passport ready to travel all over world to offer service to you.

2.We have 24 hours hot line for technical support.

3.We get 18 hours internet line for technical support.

4.Video camera in workshop to help you adjust and solve machine problem in working situation.



Company Information(Certificates):

If you are interested in our products or want more details, please feel free to contact us. Thanks!
