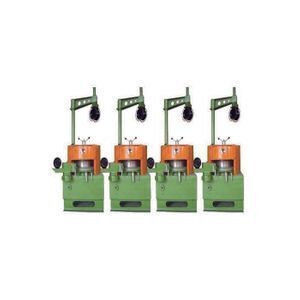

auto pulley type high carbon wire drawing machine
- 3000.00 set
| Port: | Shanghai; | Certification: | ISO9001; |
| Applicable Industries: | wire drawing machine; | Supply Ability: | 100 Set/Sets per Month; |
| Quality: | Efficiency; | Main market: | Asia,Africa,Middle East; |
| Brand Name: | Amity; | Payment Terms: | L/C,T/T; |
| Place of Origin: | Jiangsu China; | Drawing material: | Stainless Steel Wire; |
| Machine Type: | pulley type; | COLOR: | Clients' Requirements; |
| After sale: | Can supply debugging installation; | Power(W): | 7.5-22KW; |
| After-sales Service Provided: | Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Engineers available to service machinery overseas; | Condition: | New; |
| Packaging Detail: | nude package; | Usage: | straighten steel bar; |
| Weight: | 1450kg; | Dimension(L*W*H): | 1900*1300*2300; |
| Voltage: | 380V/220V(Customized); | Outlet Diameter: | 3mm; |
| Inlet Diameter: | 6.5mm; | Product Name: | auto pulley type high carbon wire drawing machine; |
| Warranty: | 1 YEAR,One year; |

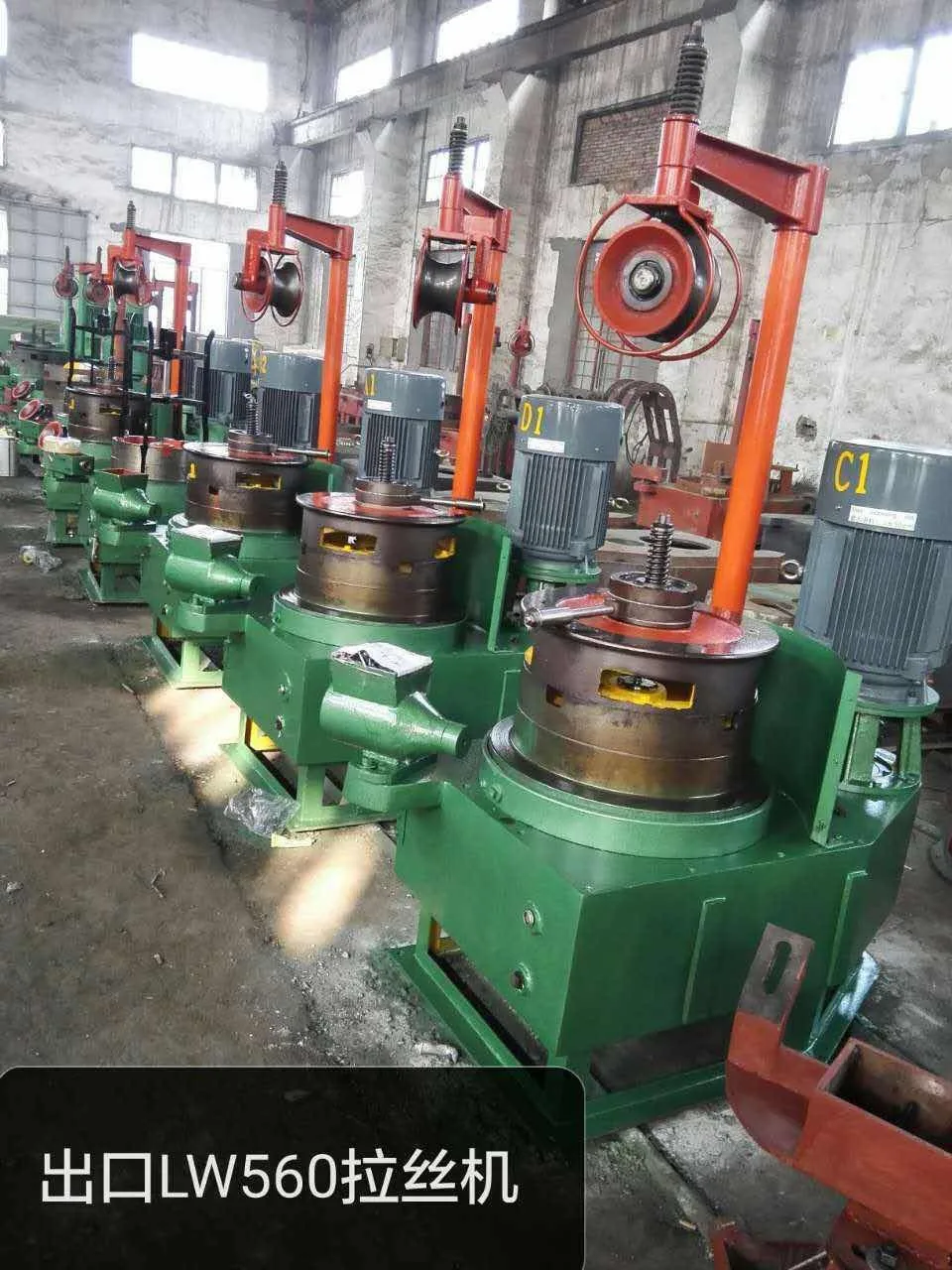

Model No. | LW-1-6/650 | LW-1-6/560 | LW-1-7/450 | LW-1-6/350 |
Max. input dia. | 8mm | 6.5mm | 3.4mm | 2.5mm |
Min. output dia. | 2.5mm | 2mm | 1mm | 0.75mm |
Max. drawing pass | N:1-10 | n: 1 - 10 | n: 1 – 8 | n: 1- 8 |
Tensile strength of wire rod | >100 Kg/mm2 | >110 Kg/mm2 | 128 Kg/mm2 | >140 Kg/mm2 |
Max. average reduction | 30% | 30% | 20% | 21% |
Designed total reduction | 75-85% | 78-88.5% | 77.9% | 78% |
Max. speed of block | 200 m/min | 245 m/min | 346.9 m/min | 200 m/min |
Total power | 55 KW | 18.5-30 KW | 7.5-11 KW | 7.5-11 KW |
Weight | 2500kg | 2000 kg | 1500 kg | 1000 kg |
Overall dimensions(L*W*H) | 1900x1300x2300 mm | 1800x1150x1750 mm | 1520x810x1700 mm | 1400x800x1500 mm |
1. Usage: This Kind of machine ( pulley or OTO type ) is an ideal equipment used to draw steel wire material of high, medium and low carbon steel , as well as copper, aluminum and alloy, the machines are applied to drawing wire in the factories and nail, screw and rivet making factories etc.

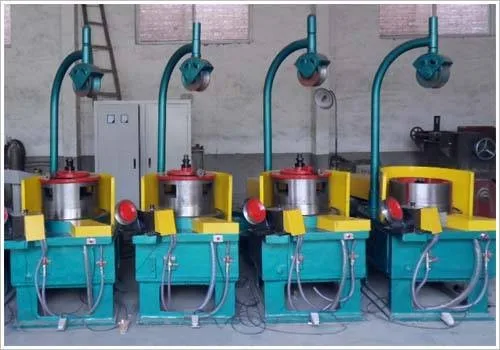

2. Structure: the equipment consists consist of main reduction box, die casing , wheel frame ,
Wire brace and electrical control system. The spinning drawing blocks are driven by JZT or Y series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body, the gear pair is lubricated with oil.
In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block.
3. The machine runs with crawl or linkage. The safety halt gear is installed by the position of operation block.
Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui
machinery manufacturing co;, all abroad (overseas) tasks and international businesswill be
undertaken by "amity care ".
We are manufacturers of centrifugal spinning machine ,mould ,heading machine ,cutting
machine,cage welding machine , tension jack for pre-stress .feeding machine for different
capacity ,weave welding machine ,sheet cutting machine etc. we also can supply setting up
a new factory full line service . We have already exported various kinds of concrete pile ,
pole and pipe concern making machines to overseas countries and regions such as indonesia
,parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
