Prefabricated steel inspection well concrete manhole machine

Supplier: Taizhou Amity Care Co., Ltd.
Region: Jiangsu, China
Contact: Ms Helen Amity
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO CE, ISO CE	Production capacity:	100%
application:	drain pipe	type:	concrete manhole machine
Warranty:	1 year	brand:	Friendly care
Voltage:	380V, 380V50HZ	Packaging Details:	bare bag
strength:	7.5kW	After-sales service provided:	Online support, on-site installation and commissioning training, on-site maintenance and repair services, video technical support
Tube:	carbon steel, carbon steel	Applicable industries:	Construction engineering, concrete manhole machine
Main selling point:	high accuracy	port:	Shanghai
Name:	Prefabricated steel inspection well concrete manhole machine	Supply capacity:	10 sets per month
color:	custom made	Floor length:	3m
payment terms:	letter of credit, wire transfer	place of origin; place of origin:	Jiangsu, China
Health status:	new, new

Product Description

Applications

Inspection of well room drainage pipeline construction is essential, generally located at pipeline intersections, elbows, pipe diameter or slope changes, and on regular and straight pipe sections to facilitate regular inspection of manhole pipes, valves and other equipment, as well as export settlement.

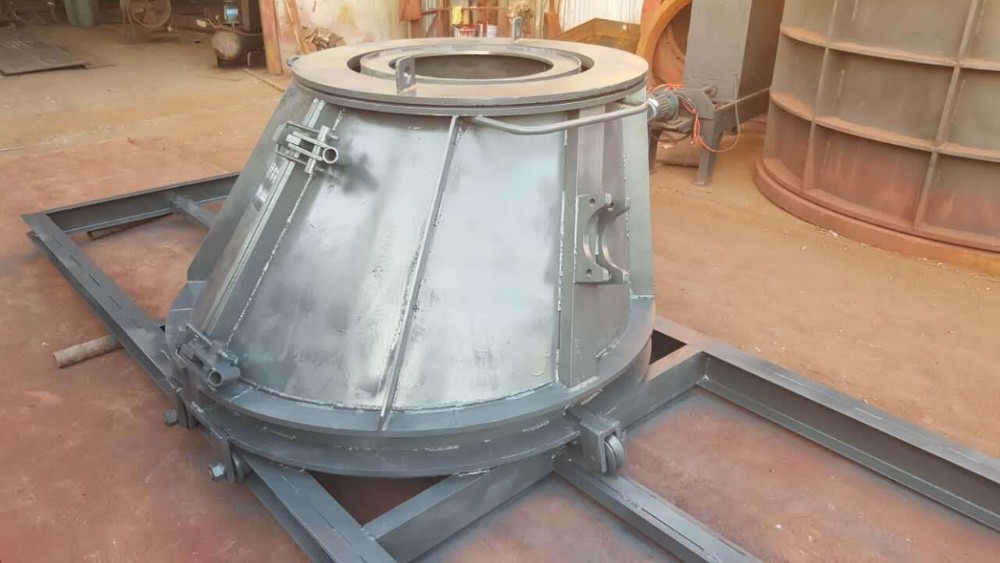

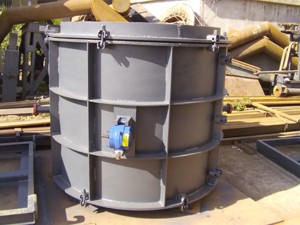

SpecificationInspection well mold
Ф1000	thickness	100	mm
		Final inspection diameter	300,400,500,600	mm
		weight	10000	Kilogram
Ф1200	thickness	120	mm
		Final inspection diameter	600,800	mm
		weight	14000	Kilogram
Ф1500	thickness	150	mm
		Final inspection diameter	800,1000	mm
		weight	16000	Kilogram

main featurePrecast concrete inspection manhole machine

1. Simple installation
2. Interface sealing
3. Anti-settling and anti-seismic
4. Low price of pipeline engineering and stable operation quality
5. Short project duration
6. Energy saving and reliable structure
7. No leakage of pulp

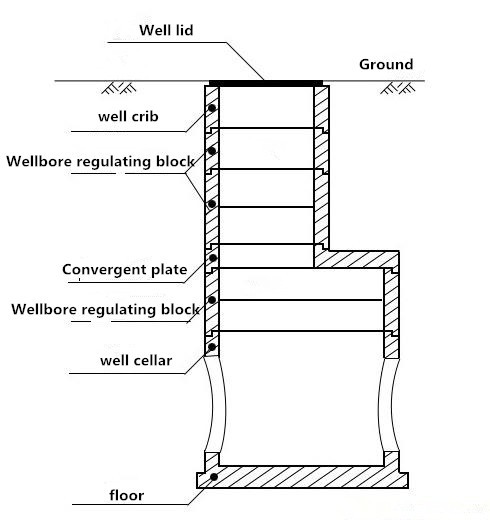

production structure

1. The inspection well is made of reinforced concrete, which increases the strength, frost resistance and impermeability of the inspection well.
2. Circles formed from the bottom of the inspection well, well chamber, adjustment block, neck well, respectively.
3. It consists of the well chamber, the upper well chamber, the central lower well chamber, the adjusting block and the journal of the rectangular inspection well.

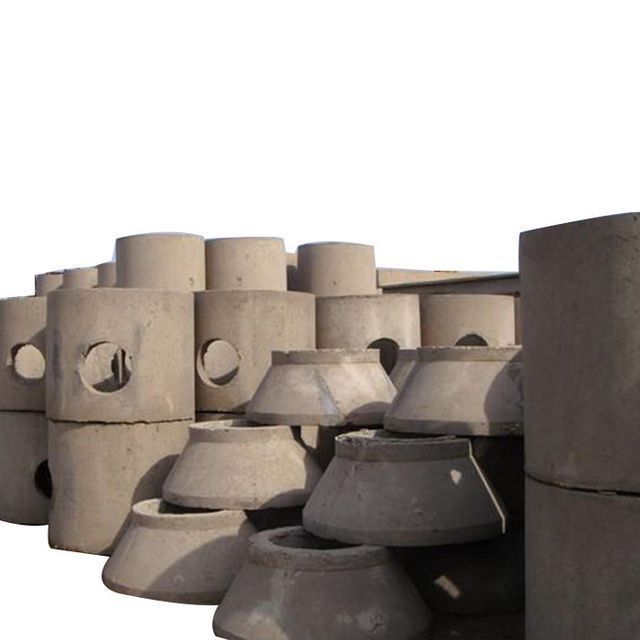

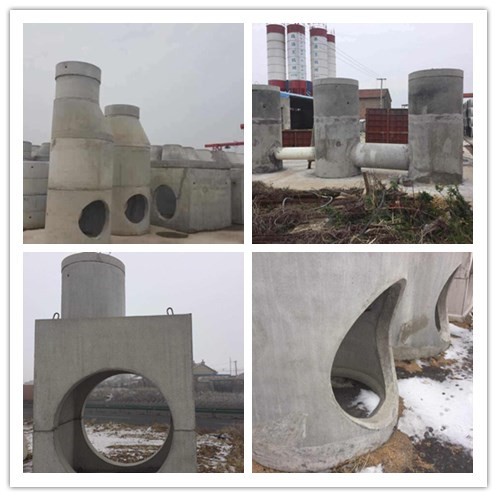

Finished goods
