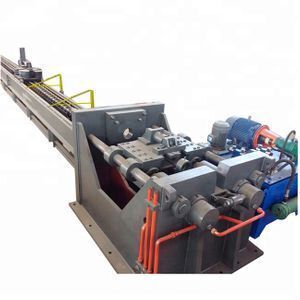

High precision and high efficiency with easy operation and low fault drawing machine
- 13600.00 set
| Voltage: | 22OV; | Place of Origin: | Hebei China; |
| Brand Name: | AISEN; | Key Selling Points: | Easy to Operate; |
| Dimension(L*W*H): | 8500*2300*1200; | Payment Terms: | L/C,T/T; |
| Local Service Location: | Turkey; | Inlet Diameter: | 5-25mm; |
| After Warranty Service: | Video technical support,Spare parts; | Power(W): | 22KW; |
| Condition: | New; | Certification: | CE; |
| Weight: | 2500KG; | Showroom Location: | Turkey; |
| Maximum reduction: | 2-5MM; | Outlet Diameter: | 5-25mm; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Retail,Printing Shops; | After-sales Service Provided: | Overseas service center available; |
| Warranty: | ONE YEAR; | Packaging Detail: | no packing; |
| Supply Ability: | 10 Set/Sets per Month; | Port: | Tianjin; |
| Year: | 2020; |
| MODEL | 5T | 10T | 25T | 30T | 50T | 100T | 120T |
| Rated pull | 5T | 10T | 25T | 30T | 50T | 100T | 120T |
Maximum cold drawn bar diameter | 20mm | 25mm | 40mm | 50mm | 60mm | 100mm | 120mm |
Maximum reduction | 2mm | 2-3mm | 2-3mm | 2-5mm | 2-5mm | 2-5mm | 2-5mm |
| Main chain | 78.18 | 100 straight | 150 | 203 | 216 | 220 straight | 240 straight |
Cold drawn length | Custom | Custom | Custom | Custom | Custom | Custom | Custom |
main motor power | 18.5kw | 18.5kw | 45kw | 55kw | 75kw | 55kw*2 | 75kw*2 |
Return speed | Frequency control | Frequency control | Frequency control | Frequency control | Frequency control | Frequency control | Frequency control |
| Reducer | ZQ500 | ZQ650 | Heavy850 | Heavy950 | Heavy1000 | Heavy 950*2 | Heavy 1000p2 |
Shijiazhuang Aisen Machinery Co., Ltd. Is a professional company for metal processing machinery,
Our main products include various types of roll forming machine, pipe processing machine, wire drawing machine, lathe and other related machines, etc.
Our company regards “reasonable prices, high quality and good after-sales” as our tenet.
Got great feedback and honor from all the clients.
Our products were sold to more than 20 countries already.
We hope to cooperate with more customers for mutual development and benefits. You are welcome to contact us
