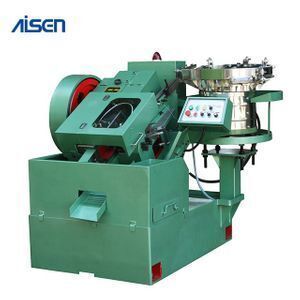

High Speed Screw Making Machine
-
Supplier: Shijiazhuang Aisen Machinery Co., Ltd. -
Region: Hebei, China -
Contact: Ms Judy Chen -
Price: $4600.00 /set -
Min. Order: 1 set
| Power(W): | 3kw; | Warranty: | 1 Year; |
| Supply Ability: | 10 Set/Sets per Week; | Condition: | New; |
| Application: | Screw; | Weight: | 1400; |
| Place of Origin: | China; | Packaging Detail: | in wooden case; |
| Certification: | ISO9001; | Production Capacity: | 160-200 pcs/min; |
| After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Dimension(L*W*H): | 1750*1150*1420mm; |
| Payment Terms: | L/C,T/T,Western Union; | Voltage: | 380V 50HZ; |
| Brand Name: | AISEN; | Port: | China; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
High speed automatic thread rolling machine
Model | Max. Blank diameter | Max. Blank length | Die thickness | Die height | Moving die size | Fix die size | Speed | Power | Weight |
ATR-003 | 3mm | 20mm | 15mm | 25mm | 55mm | 45mm | 300-380pcs/min | 0.75kw | 500kg |
ATR-003A | 3mm | 30mm | 20mm | 30mm | 75mm | 65mm | 155-245pcs/min | 1.5kw | 600kg |
ATR-004 | 4mm | 25mm | 20mm | 25mm | 80mm | 65mm | 240-320pcs/min | 2.2kw | 650kg |
ATR-004B | 4mm | 40mm | 25mm | 40mm | 90mm | 75mm | 200-260pcs/min | 2.2kw | 950kg |
ATR-004CB | 5mm | 55mm | 25mm | 55mm | 105mm | 90mm | 160-200pcs/min | 3kw | 1400kg |
ATR-15 | 6mm | 55mm | 25mm | 55mm | 125mm | 110mm | 160-180pcs/min | 5.5kw | 1700kg |
ATR-15A | 6mm | 75mm | 25mm | 75mm | 125mm | 110mm | 140-160pcs/min | 5.5kw | 1750kg |
ATR-15B | 6mm | 105mm | 25mm | 55mm | 125mm | 110mm | 140-160pcs/min | 5.5kw | 1850kg |
ATR-20B | 8mm | 105mm | 25mm | 105mm | 170mm | 150mm | 80-120pcs/min | 7.5kw | 2900kg |
ATR-25 | 10mm | 155mm | 25mm | 105mm | 170mm | 150mm | 60-110pcs/min | 11kw | 3500kg |
ATR-30 | 12mm | 150mm | 40mm | 158mm | 215mm | 190mm | 50-90pcs/min | 15kw | 7000kg |
ATR-40 | 15mm | 200mm | 50mm | 208mm | 365mm | 230mm | 45-60pcs/min | 22kw | 8500kg |
Shijiazhuang Aisen Machinery Co., Ltd. Is a professional company for metal processing machinery,
Our main products include various types of roll forming machine, pipe processing machine, wire drawing machine, lathe and other related machines, etc.
Our company regards “reasonable prices, high quality and good after-sales” as our tenet.
Got great feedback and honor from all the clients.
Our products were sold to more than 20 countries already.
We hope to cooperate with more customers for mutual development and benefits. You are welcome to contact us
-
