High Quality Vertical Rubber Bale Cutter with CE ISO9001 New Price

Supplier: Qingdao Huicai Machine Manufacture Co., Ltd.
Region: Shandong, China
Contact: Ms SUNNY YIN
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	11KW;	Length of blade cutter (mm):	680;
Place of Origin:	Shandong China;	Dimension(LWH):	2300X1500X2530;
Brand Name:	HUICAI;	Certification:	CE,ISO9001;
Product name:	High Quality Vertical Rubber Bale Cutter with CE ISO9001 New Price;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Time of blade cutting (s):	13-16;	Overall dimension(mm) : (LxWxH ):	2300X1500X2530;
Type:	Rubber Cutting Machine;	Key Selling Points:	Automatic;
Supply Ability:	100 Set/Sets per Month;	Weight of products(KG):	2000;
Total pressure of cylinder (KN):	120;	Motor power (KW):	11;
After-sales Service Provided:	Field maintenance and repair service,Engineers available to service machinery overseas;	Model Number:	XQL-120;
Port:	Qingdao;	Weight:	2000kg;
Voltage:	380V;	Width of blade cutter (mm):	760;
Packaging Detail:	Bare packing, some parts are packed in wooden case.;	Condition:	New;
Applicable Industries:	Manufacturing Plant;	Warranty:	1 YEAR;

High Quality Vertical Rubber Bale Cutter with CE ISO9001 New Price

Customize OEM/ODM SERVICE

WELCOME TO OUR FACTORY VIST AND NEGOTIATION

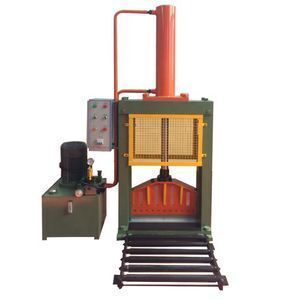

This rubber cutting machine/cutter/bale splitter is mainly used to cut the natural rubber, synthetic rubber, and other plastic materials, especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.

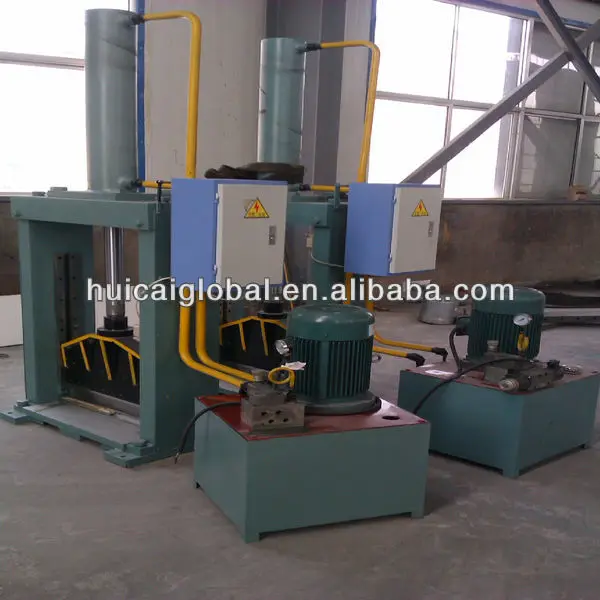

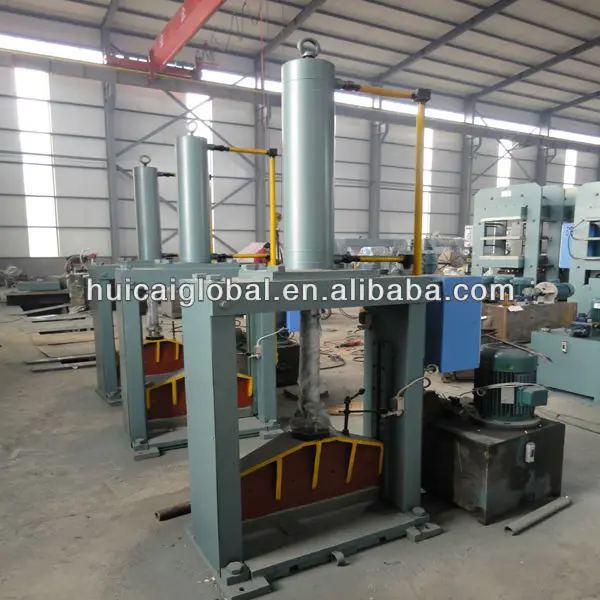

This bale splitter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.

When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.

Two limit switches are installed on the frame to control the reversal valve to control the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.

Simple structure,convenient to operate,high production efficiency,reduce labor intensity.

Parameter name/ type	XQL-80	XQL-100	XQL-120
Width of blade cutter (mm)	660	660	760
Length of blade cutter (mm)	680	680	680
Total pressure of cylinder (KN)	80	100	120
Time of blade cutting (s)	14-16	14-16	13-16
Motor power (KW)	5.5	5.5	11
Overall dimension(mm) : (L × W × H )	2100×1440×2500	2100×1400×2500	2300×1500×2530
Weight of products(KG)	1600	1700	2000

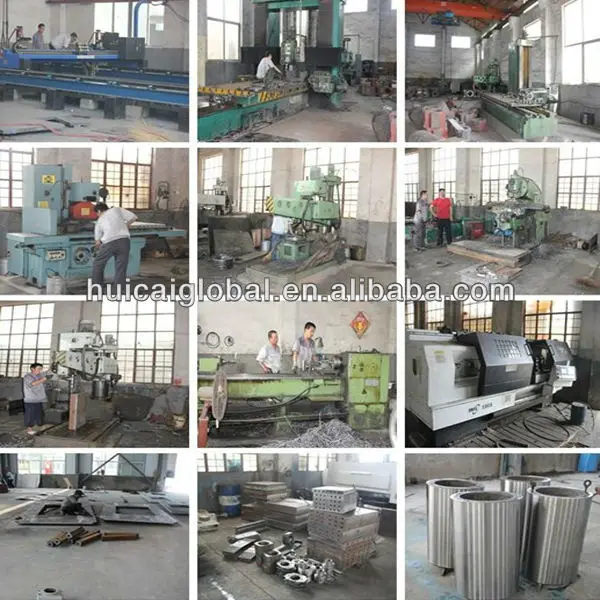

We are professional manufacturer of machinery

About us--

Qingdao HUICAI Machine Manufacture Co., LTD.

1. has specialized in machine manufacture almost 20 years;(since 1996)

2.100% real manufacture meet all your requests;

3.CE,ISO Certification;

4.provide one year quality guarantee and long-term technical support;

5.provide all kinds of rubber machine:

Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;

6.our machine are welcome by the world,popular in lots of markets

About Us:

We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email

will be appreciate and we reply you as soon as possible.

Notice:

we can accept FOB,CIF,CFR,EXW,etc.

Payment Item:30%TT in advance,70% balance before shipment.

Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter

Packing:bare packing, some parts are packed in wooden case.

If you are interested,please inquiry.
