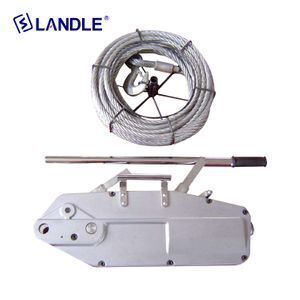

Wire Rope Lever Block Pulley Hoist Wire Rope Pulling Winch for Lifting

Product details
Port:Shanghai / Ningbo;Forward handle effective length:1200mm;
Rated load lifting capacity:3.2Ton;Place of Origin:Jiangsu China;
Transmission series:2;Packaging Detail:Pallet;
Wire rope diameter:16mm;Stroke when the rated:>28;
Supply Ability:5000 Set/Sets per Month;Net weight:23KG;
Packing size:660X116X350mm;Payment Terms:L/C,D/P,T/T;
Type:Manual Wire Rope Pulling Hoist;Wire rope standard length:10m;
Hand force when the rated:<441N;

Wire Rope Lever Block Pulley Hoist Wire Rope Pulling Winch for Lifting



Product Description

1. Scope of application

The wire rope hoist is adapted for use in narrow areas where local space is limited. For field operations, aerial work, lifting operations in the deep well operation of the SM-618 wire rope hand hoist and the inorganic electric energy supply site will show special advantages.

2. Working principle

The wire rope lever hoist is obtained by the human lever wrench, and the linear traction matched with the load is obtained by the principle of the lever, and a caliper body acting on the movement of the movement is alternately operated with a load.

3. How to use

Put the forward (reverse) handle to the machine first, then push the handle to the front of the machine, and the tip can be snapped into the upper step of the housing. At this time, the upper and lower clamps of the front and rear calipers are OK. The opening can be worn (pumped), and then the hand can be pushed forward and downward to push the release handle, so that the clamp clamping wire rope (or reset) can be put into operation.



4. High strength parts

The main parts of the machine are made of high-grade alloy steel material and processed by many special heat treatment processes. It has the characteristics of high strength and good wear resistance. The upper and lower hooks are made of high-strength alloy steel, which has very strong heat treatment. High toughness, even if the body is damaged by overload, the hook will only produce sag deformation without brittle fracture

5. The body structure is novel

This machine adopts high-strength aluminum alloy body, which is beautiful in appearance, compact in body, small in size and light in weight. It adopts two-stage gear transmission, and the high-speed stage is helical gear transmission, so the transmission is stable and the noise is small.



Product Parameters

Model



SM-618  0.8

SM-618  1.0

SM-618  1.6

SM-618  3.2

SM-618  5.4

Rated load lifting capacity

ton

0.8

1

1.6

3.2

5.4

Stroke when the rated

mm

≥52

≥52

≥55

≥28

≥30

Forward handle effective length

mm

825

825

1200

1200

1200

Transmission series



1

1

1

2

2

Wire rope diameter

mm

8

8

11

16

20

Wire rope standard length

m

10, 20

10, 20

10, 20

10

10

Net weight

kg

6

6

12

23

45

Hand force when the rated

N

≤284

≤353

≤412

≤441

≤745

Packing size

mm

428*64*235

428*64*235

545*97*286

660*116*350

800*180*500
