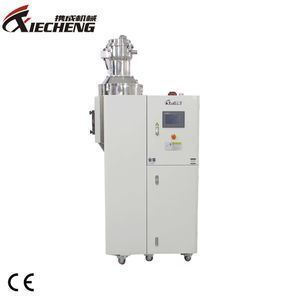

pet low dew point plastic industrial dehumidifying dryer for injection machine

Supplier: Jiangmen Xiecheng Machinery Co.,Ltd.
Region: Guangdong, China
Contact: Ms Amy Chau
Price: $499.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dry temperature:	80-160 degree;	Warranty:	1 year;
Condition:	New;	Port:	Jiangmen/Shenzhen/Guangzhou;
Blower Power:	0.75kw;	Drying heater:	3.9kw;
Certification:	CE;	Capacity (kg):	120 kg;
Dryer hopper:	90L;	Applicable Industries:	Manufacturing Plant;
Brand Name:	XIECHENG;	Supply Ability:	500 Set/Sets per Month;
Showroom Location:	Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Uzbekistan,Malaysia;	Electric Heating Power(kW):	6 kW;
Blower Power(W):	750 W;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Regeneration blower:	0.25kw;	Dry -Air Dew Point:	-40 degree;
Local Service Location:	Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Uzbekistan;	Vacuum hopper:	6L;
Place of Origin:	Guangdong China;	After Warranty Service:	Video technical support,Online support;
Weight (KG):	320 KG;	Packaging Detail:	wooden case package;
Conveying Blower:	1.1kw;

pet low dew point plastic industrial dehumidifying dryer for injection machine

Features of dehumidifier air dryer

1) Microcomputer controller adopted.

2) This HDC integrated conveying dehumidifier is equipped with imported honeycomb dehumidifying rotor from Proflute, a Swedish company.

3) Micro-motor designed with the latest pendulum structure for easier achievement of dew-point.

4) Suitable for use on engineering plastic materials with strong absorption ability such as PA, PC, PBT, PET, etc.

5) Integration of three functions in one machine, namely dehumidifying, drying and two-section material conveying. Three-section or four-section material conveying is also optional.

6) Air blowing tube designed under the heat-preserving drying barrel to effectively avoid heat dissipation and improve drying efficiency.

7) Using dual-fin cooler design to ensure a lower return air temperature and dew-point.

8) Equipped with material conveying, recycling and regenerating filter to keep the key components such as the fan and honeycomb from dust contamination.

9) The conveying system contains a material cut-off valve to make sure no remains in the tube.

10) Optional dew-point meter with real-time display of dew-point detected.

11)With recyclable and resettable filter to make sure the honeycomb is not contaminated.

12) A thoughtful multiple security device built in.

13) Clear fault code display.

Product specification:

Model		XCD-90L/80A
Material hopper	Capacity(L)	90
	Heat protection material	Fiber glass+stainless steel
Dry air dew point(^oC)		-40
Temperature(^oC)		80~160
Air flow(m3/h)		80
Blower power(kw)		0.75
Regeneration blower(kw)		0.25
Drying heater(kw)		3.9
Regeneration heater(kw)		3.9
Pipe size	drying(mm)	51
	Cooling(inch)	3/4"
	Regeneration(mm)	38
Conveying blower(kw)		1.1
Conveying distance(m)		Stage1:10m; Stage2:10m
Hose size(inch)		1.5
Sensor hopper(L)		6
Vacuum hopper capacity(L)		6
Dimension(cm)		10087180
Net weight(kg)		310

More model specification:

Model		XCD-90L/80A	XCD-120L/80A	XCD-160L/130A	XCD-230L/160A	XCD-300L/220A	XCD-450L/300A	XCD-750L/400A	XCD-900L/500A	XCD-1200L/700A
Material hopper	Capacity(L)	90	120	160	230	300	450	750	900	1200
Material hopper	Heat protection material	Fiber glass
Dry air dew point(^oC)		-40	-40	-40	-40	-40	-40	-40	-40	-40
Temperature(^oC)		80~160	80~160	80~160	80~160	80~160	80~160	80~160	80~160	80~160
Air flow(m3/h)		80	80	130	160	220	300	400	500	700
Blower power(kw)		0.75	0.75	1.1	1.5	2.2	3	5.5	7.5	7.5
Regeneration blower(kw)		0.25	0.25	0.25	0.55	0.55	0.75	0.75	2.2	2.2
Drying heater(kw)		3.9	5.4	5.4	7.2	12	15	18	21	21
Regeneration heater(kw)		3.9	3.9	3.9	5.4	5.4	7.2	7.2	10	10
Pipe size	drying(mm)	51	51	51	63	63	76	76	100	100
	Cooling(inch)	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"
	Regeneration(mm)	38	38	38	51	51	51	51	63	63
Conveying blower(kw)		1.1	1.1	1.1	1.5	1.5	1.5	2.2	3.7	3.7
Conveying distance(m)		Stage1:10m; Stage2:10m
Hose size(inch)		1.5	1.5	1.5	1.5	1.5	1.5	1.5	2	2
Sensor hopper(L)		6	6	6	6	6	6	10	10	10
Vacuum hopper capacity(L)		6	6	6	6	6	6	10	10	10
Dimension(cm)		10087180	10087180	10087180	12395239	165130225	150130280	178130286	214138316	225138349
Net weight(kg)		310	340	360	420	550	600	750	830	900
