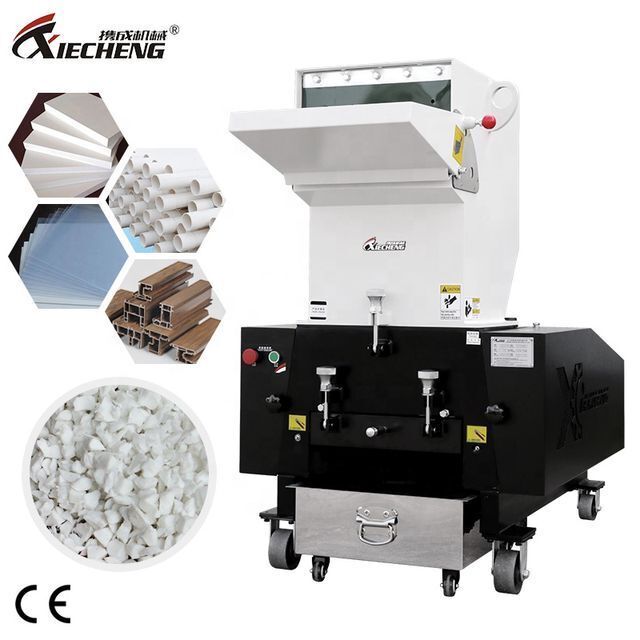

Xiecheng CE 10HP Recycling Shredder Plastic Bottle Crushing Machine Plastic Crusher Products from Jiangmen Xiecheng Machinery Co.,Ltd.

Product Details

Voltage:	380V/50Hz/3Phase as usual;	Inner fitting:	double layer hopper with deadening;
Production Capacity (kg/h):	200 - 250 kg/h;	Use:	Bottle Crusher;
Dimension(LWH):	10108151330 mm;	Capacity:	200-250KG/H;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining,Other;	Warranty of core components:	1 Year;
Power (kW):	7.5;	Showroom Location:	Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Uzbekistan,Malaysia;
Condition:	New;	Blades material:	Cr12MoV;
Type:	environment-friendly;	Machine Type:	Plastic Crusher;
Weight (T):	0.5;	Marketing Type:	Hot Product;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Shape:	flake blade;
Grinding Chamber(mm):	410*240;	Rotary Cutter:	12 pcs;
Package Preview:	;	Core Components:	Bearing,Motor;
Key Selling Points:	High Productivity;	Plastic Type:	PVC,PP,PC,PS;
Video outgoing-inspection:	Provided;	Max.Production Capacity (kg/h):	250;
Brand Name:	XIECHENG;	Place of Origin:	Guangdong, China;
Packaging Detail:	Standard wooden case as usual;	Machinery Test Report:	Provided;
Mesh size(mm):	10;	Crushing material:	sheets,tube plastics,profiles,packing plastics;
Stationary Cutter:	2 pcs;	Warranty:	1 Year;

Product Description

Flake Type Plastic Crusher

Flake type blade design, suitable for crushing general plastics like sheets, tube, profiles and packing materials, also runners, etc.

Product Specifications

Model			XC-GP300	XC-GP400	XC-GP500	XC-GP600
Grinding Chamber(mm)			310*200	410*240	510*300	610*330
Grinding Capacity(KG/H)			150-200	200-250	300-350	350-450
Stationary Cutter			2	2	2	4
Rotary Cutter			9	12	15	18
Mesh Size (mm)			Ф8	Ф8	Ф10	Ф10
Power	KW	5.5	7.5	11	15
Power		HP	7.5	10	15	20
Dimension (L×W×H mm)			9207251200*960	9808101260*985	12009701570*1230	120010701670*1230
Net Weight(KG)			400	500	805	940

If you want more sizes, please contact us for details

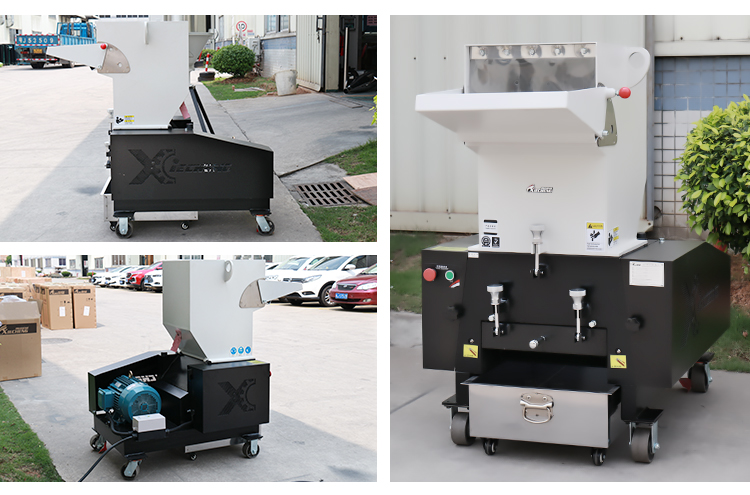

Actual Shooting

Product Details

01 Durable Cutter

▪Flake type blade design, blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability.
▪Material: CR12MOV, hardness in 57-59°

02 Chamber Wall Thickness

Chamber wall thickness 20~50mm, more stable in crushing process due to better load-bearing, hence with higher durability.

03 Siemens Electric

▪ SIEMENS electrical parts ensures stable running and liability of the machine；
▪ Optional Deluxe CE: CE wiring, CE safety electrical devices.

04 Feeder hopper design

Feeding hopper with back and front double layered insulation for effective noise handling.

05 Motor

The motor adopts all copper wire motor，long life and durable.

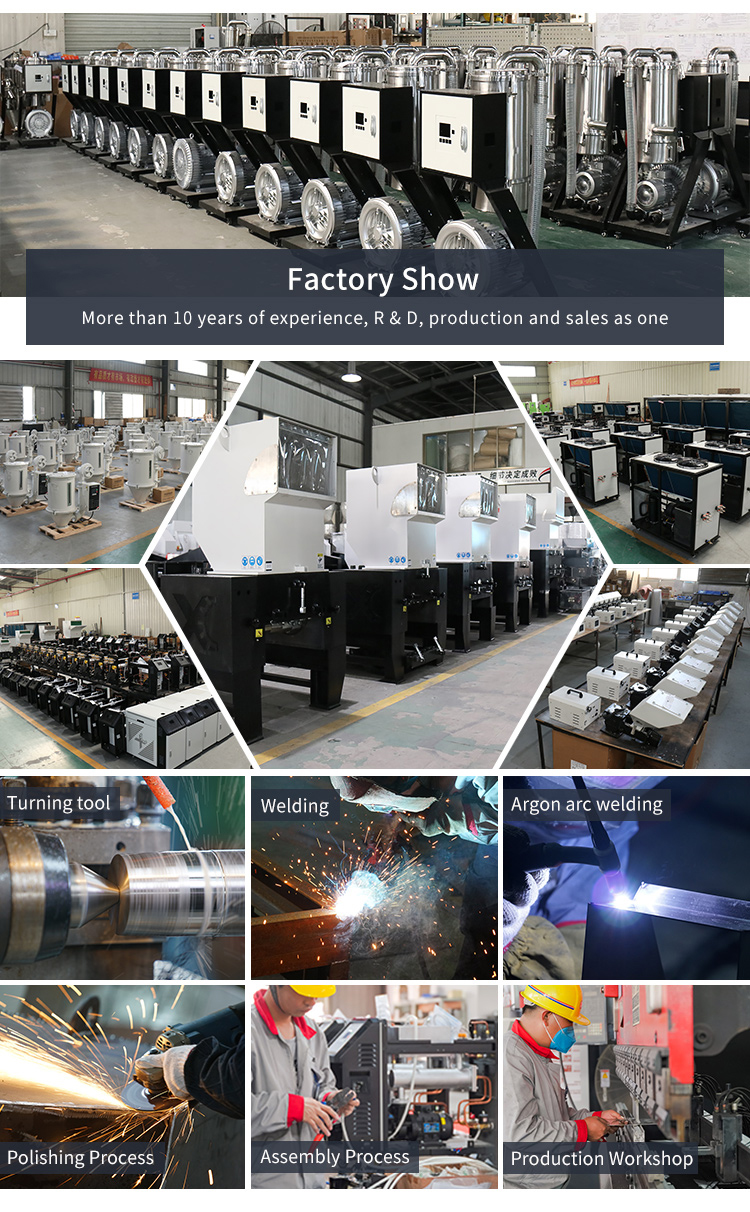

Blade Production Process

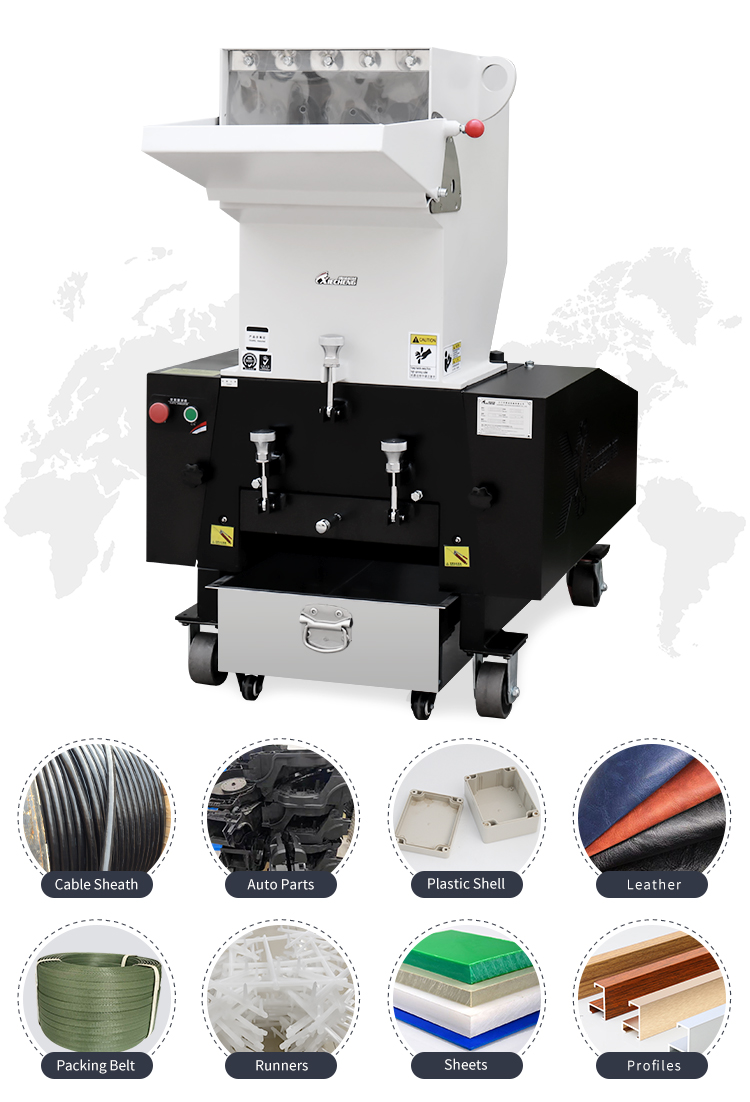

Application Range

Flake cutter blades are suitable for recycling and restoring of conventional sheets, tube plastics, profiles, packing plastics, extrusion mold products and runners, etc.

Best Selling

About Us

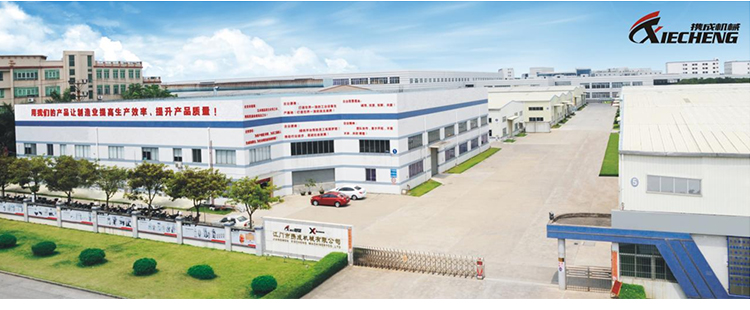

Company Profile

In 2009, founded by Mr. Fuzhibo with its head quarter in Jiangmen city which known as a famous hometown of many overseas Chinese, Jiangmen Xiecheng Machinery Co., Ltd. has been devoted herself to be an integrated enterprise of R&D, manufacturing and marketing businesses for High-end Industrial Refrigeration Equipment, Rubber and Plastic Moulding Auxiliary Automation Equipment, and also Intelligent Integrated System Solutions.

Authenticated by IS09001, XIECHENG also successfully established the “6+1+C” full dimensional product service system with her own supply chain advantages of combining the six series of products, as Industrial Refrigeration, Mould Temp. Controlling, Material Conveying, Crushing & Recycling, Dehumidifying & Drying, and also Mixing, into central intelligent system solutions as Material Feeding, Air Supply, Water Supply and Power Supply, to fast fitting customers’ specific demands.
