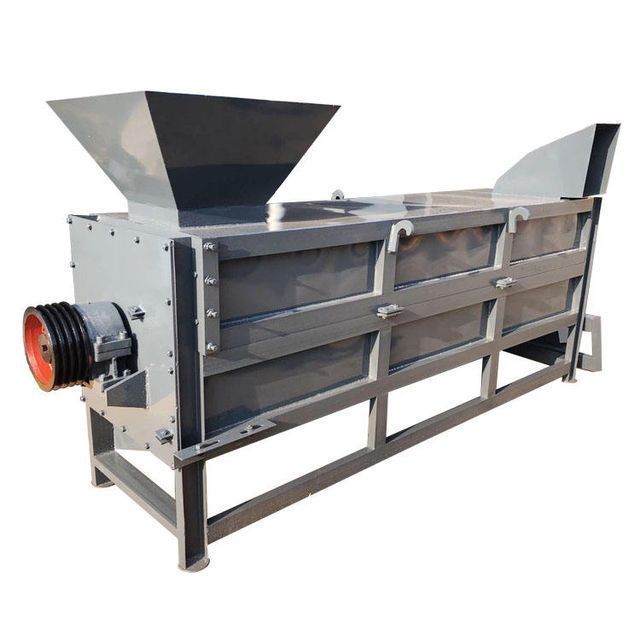

Plastic waste and film plastic dryers
- 3500.00 1 - 9 sets
- 2500.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Local service location: | USA, Pakistan, India | port: | Qingdao |
| Warranty: | 1 year | Core components: | engine |
| Fan power (W): | 10 watts | State of health: | new |
| Supply capacity: | 50 sets per month | place of origin; place of origin: | Shandong China |
| Package preview: | payment terms: | L/C, T/T | |
| After warranty service: | Video technical support, online support | Power (kW): | 15 |
| Marketing Type: | normal product | Applicable industries: | manufacturing plant |
| Capacity (kg): | 300 kg | Certification: | International Organization for Standardization |
| Showroom location: | USA, Pakistan, India | Packaging Details: | PE film and fixed with wire rope |
| Electric heating power (kW): | 15 kW | brand: | Jinpeng |
| Core component warranty: | 1 year | Video shipment inspection: | if |
| After-sales service provided: | Video technical support, online support | Weight (kg): | 300 kg |
| Mechanical test report: | if |
Product Description
Specification
Model | 560*1800mm | 560*2600mm | 1000*2200mm |
Motor Power | 18.5kw (flaky) | 22kw(sheet)/30kw(film) | 45kw (flaky) |
Rotating speed | 1450~1800 rpm | 1450~1800 rpm | 1450~1800 rpm |
Shaft diameter | ￠160mm | ￠160mm | ￠160mm |
shell thickness | 3mm | 3mm | 3mm |
Screen diameter | 5mm(film), 2mm(sheet) | 5mm(film), 2mm(sheet) | 5mm(film), 2mm(sheet) |
Mesh thickness | 3mm(film), 1.8mm(sheet) | 3mm(film), 1.8mm(sheet) | 3mm(film), 1.8mm(sheet) |
Bearing type | UCF216 | UCF216 | UCF216 |
weight | ~1.5T | ~1.5T | ~3T |
capacity | 1t/h (film), 2t/h (sheet) | 1t/h (film), 2t/h (sheet) | 1.5t/h (film), 3t/h (sheet) |
Feeding height | 2.35m | 2.35m | 3 meters |
Film dehydration rate | 90% | 90% | 90% |
Flake dehydration rate | 98% | 98% | 98% |
