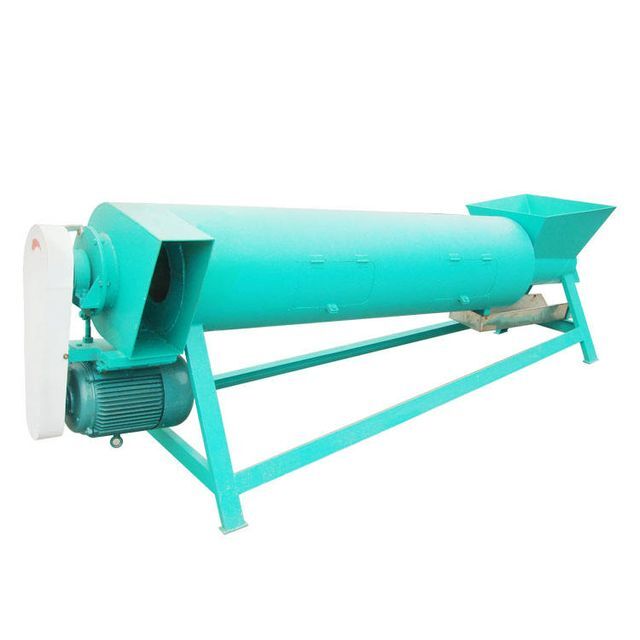

Waste plastic film and scrap cleaning and drying plastic dryer
- 500.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Electric heating power (kW): | 15kW | Blower power (W): | 10 watts |
| Warranty: | 1 year | Local service location: | USA, Pakistan, India |
| port: | Qingdao | payment terms: | letter of credit, wire transfer |
| Packaging Details: | PE film and fixed with steel wire rope | Video external inspection: | if |
| Supply capacity: | 50 sets per month | After Warranty Service: | Video technical support, online support |
| Packaging Preview: | Certification: | EU standard | |
| After-sales service provided: | Video technical support, online support | place of origin; place of origin: | Shandong China |
| Showroom location: | USA, Pakistan, India | Health status: | new |
| Core components: | engine | Capacity (kg): | 300 kg |
| brand: | Jinpeng | Weight (kg): | 300kg |
| Function: | Dehydration and washing | Mechanical test report: | if |
| Power (kW): | 15 | Marketing Type: | normal product |
| Core Components Warranty: | 1 year | Name: | Plastic Dehydrator |
| Applicable industries: | manufacturing plant |
Product Description
Specification
Model | 560*1800mm | 560*2600mm | 1000*2200mm |
Motor Power | 18.5kw (piece) | 22kw (sheet)/30kw (film) | 45kw (piece) |
Rotating speed | 1450~1800r/min | 1450~1800r/min | 1450~1800r/min |
Shaft diameter | ￠160mm | ￠160mm | ￠160mm |
Shell thickness | 3mm | 3mm | 3mm |
Screen diameter | 5mm(film), 2mm(sheet) | 5mm(film), 2mm(sheet) | 5mm(film), 2mm(sheet) |
Screen thickness | 3mm(film), 1.8mm(sheet) | 3mm(film), 1.8mm(sheet) | 3mm(film), 1.8mm(sheet) |
Bearing Type | UCF216 | UCF216 | UCF216 |
weight | ~1.5T | ~1.5T | ~3T |
capacity | 1t/h (film), 2t/h (sheet) | 1t/h (film), 2t/h (sheet) | 1.5t/h (film), 3t/h (sheet) |
feeding height | 2.35m | 2.35m | 3m |
Film dehydration rate | 90% | 90% | 90% |
Dehydration rate of flakes | 98% | 98% | 98% |
