WIFI electricity meter smart energy meter 5(60)A 110V 230V Single phase Din rail over/under voltage current protection RS485
- 22.50 piece
| Model Number: | DDS-238-4 W; | Phase: | Single phase; |
| Single gross weight: | 0.35 KG; | Measuring Energy Range: | 99999.9; |
| Brand Name: | OPEN; | Accuracy Class: | 1; |
| Output Voltage: | 110V/220V/230V; | Display Type: | Digital Only; |
| Operating Temperature: | -30~70℃; | Package Type: | Packing by standard; |
| Place of Origin: | China; | Selling Units: | Single item; |
| Single package size: | 7.5X7.5X8.8 cm; | Dimensions: | 12*10*10; |

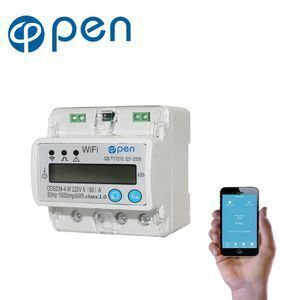

WiFI Smart Meter
Feature
1. WIFI remote control at anytime from anywhere
2. Compatiable with Amazon Alexa
3. Set Power Unit price and canculate total consumption
4. Can Set prepaid,When the electricity is used up, it will automatically trip to remind the user to re-purchase the electricity.

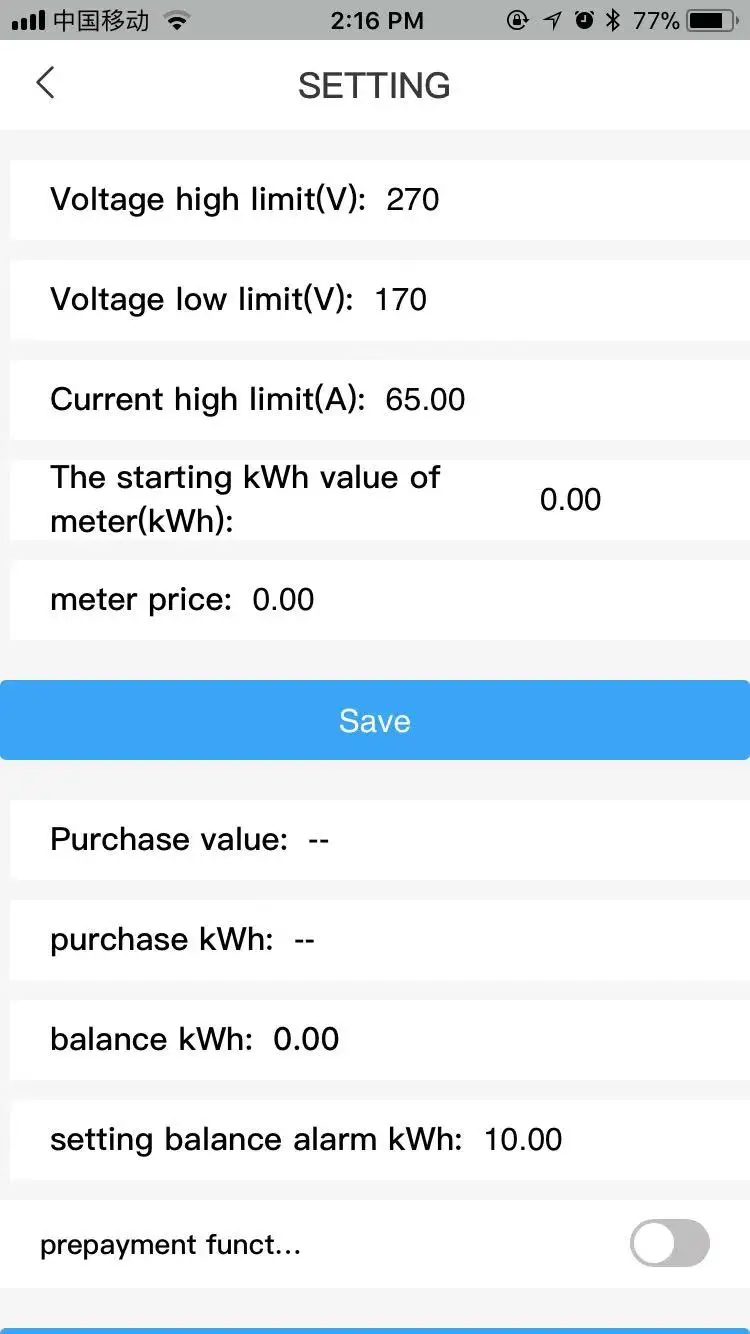

5. Set Voltage ,Current, by APP,
6. Over voltage ,Under Voltage protection
7. Over Curent, Under Current protection
8. Have RS485 interface
Please noted if you use the meter for 110V, You have to adjust the over and under voltage value, or the meter cut off the power because under voltage protection.
Display item
| INFORMATION | LCD DISPLAY |
01 | Impulse imp/kWh | C 0000 |
02 | Total energy kWh | 000000.00 |
03 | Positve kWh | 00000.00 |
04 | Reverse kWh | -00000.00 |
05 | Reset energy | EP0000.00 |
06 | Real voltage V | U 000.0 |
07 | Real current A | A 00.00 |
08 | Real active power W | P 0.0 |
09 | Real reactive power Var | P 0.0 |
10 | Power factor COS | PF 0.00 |
11 | Real frequency Hz | F 00.00 |
12 | Meter serial high 6 digits | H 000000 |
13 | Meter serial low 6 digits | L 000000 |
14 | MODBUS ID | 001 |
