OPEN DZ47-63 1p 2P 3P 4P Mini MCB 20A 16A 10A 32A 25A 40A 63A AC MCB Miniature Circuit Breaker With CE Certificate
-
Supplier: Yueqing Open Electric Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Jin Yong -
Price: $0.65 / 10 - 99 pieces
$0.50 / 100 - 999 pieces
$0.45 / >=1000 pieces -
Min. Order: 10 pieces
| Short-circuit breaking capacity: | 6000A; | Rated voltage: | AC 230(240)/400(415)V; |
| Material: | Copper; | BCD Curve: | B/C/D; |
| Rated current: | 1A, 2A, 3A, 4A, 5A, 6A, 10A, 16A, 20A, 25A,32A, 40A, 50A, 63A.; | Package Preview: | ; |
| Color: | decide by customer; | Number of poles: | 1P; |
| Rated frequency: | 50(60)Hz; | Certificate: | CE/ROHS/CB/ISO9000; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Rated Voltage: | 220V; |
| Poles Number: | 1P; | Model Number: | DZ47-63; |
| Terminal protection: | IP20; | Rated Frequency: | 50/60hz; |
| Packaging Detail: | Standard carton(240pcs/ctn) N.W: 22 KG G.W: 23 KG Size: 42*24*34cm,; | Supply Ability: | 1000000 Piece/Pieces per Month; |
| Port: | NINGBO OR SHANGHAI; | Type: | MINI; |
| Brand Name: | OPEN; | Place of Origin: | Zhejiang China; |
| Mechanical Life: | 20000; |

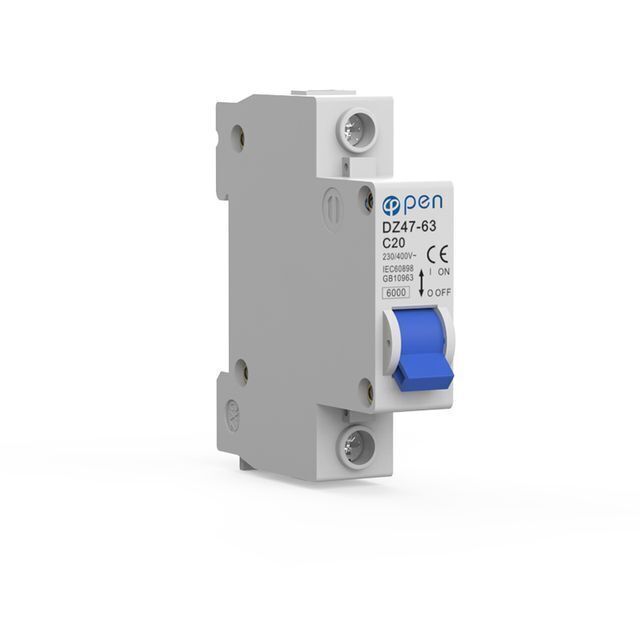

DZ47-63 Mini circuit breaker
Application
The dz47-63 b c d curve 1amp mcb low voltage types of miniature electrical circuit breaker is mainly used in
AC50/60HZ single-pole230V or two, three, four-poles 400Vcircuit for overload and short circuit protection as well as for unfrequent on-and off switching electric equipment and lighting circuit under normal condition. Used in lighting and electric motor distribution system. Characterized with novel structure ,light weight, reliable and excellent performance,high breaking capacity.The dz47-63 b c d curve 1amp mcb low voltage types of miniature electrical circuit breaker is conformity with GB10963,IEC 60898 standards.
Main Technical Parameters
|
Type |
DZ47-63 MCB |
|
Number of Poles: |
1p, 2p, 3p, 4p |
|
Rated Current: |
1A, 2A, 3A, 4A, 5A, 6A, 10A, 16A, 20A, 25A,32A, 40A, 50A, 63A. |
|
Rated Voltage: |
AC 230(240)/400(415)V |
|
Rated frequency: |
50(60)Hz |
|
Curve: |
B, C, D |
|
Short-circuit breaking capacity(ICN): |
6000A |
|
Magnetic releases operate: |
B curve : between 3 and 5 In C curve : between 5 and 10 In D curve : between 10 and 14 In |
|
Endurance: |
≥4000 |
|
terminal protection: |
IP20 |
Products' Advantage
1. Our products have the guarantee period of 36 calender months, that is a high quality and reliability;
2. Our products have an excellent ratio between price and quality, you can possess them by competitive price and high quality
3. The fast and flexible production form aim at the customer require;
4. The deliveries exactly in accordance with customer orders;
5. The fast transportation;
6. Wide in variety, entire in specification, has high short-circuit breaking capacity, can reach 6KA,
it is aesthetic in appearance to design and convenient to install.
Overall and Mounting Dimensions
Product Show
We are the professional manufacture of circuit breakers. Our main products are mini circuit breaker, RCCB, RCBO, moulded case circuit breaker, ect. Our products have passed the CE, ISO certification. Through last 10 years' development, we have grown into one competitive and professional manufacturer of circuit breakers.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
