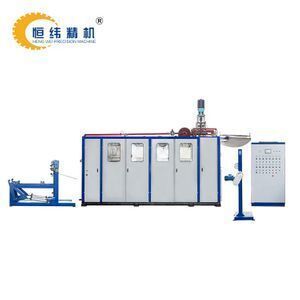

full automatic disposable PP PS PET plastic cup thermoforming machine price
-
Supplier: Shanghai Yiyou Electromechanical Equipment Co., Ltd. -
Region: Shanghai, China -
Contact: Ms amyu yu -
Price: $30000.00 /set -
Min. Order: 1 set
| Air Pressure(MPa): | 0.8 MPa; | Max.Forming Height(mm): | 180 mm; |
| Condition: | New; | Product Type: | Plastic Cup; |
| Forming Width (mm): | 730 mm; | After-sales Service Provided: | Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support; |
| Port: | Port Shanghai for plastic cup thermoforming machine price; | Applicable Industries: | Manufacturing Plant; |
| Electrical part brand: | Schneider; | Water Comsumption(L/min): | 50 L/min; |
| Weight: | 6000kg; | Warranty: | 1 year; |
| Plastic Type: | Hips,PS,PP,PET; | Forming Length (mm): | 420 mm; |
| Brand Name: | Shanghai Yiyou; | Showroom Location: | None; |
| Weight (T): | 6 T; | Packaging Detail: | Each parts wrapped with stretch film or wooden crates packing(charge). Container: 1*40HQ HS Code: 8477409000 for disposable plastic cup thermoforming manufacturing machinery; |
| Place of Origin: | Shanghai China; | Power(KW): | 118; |
| Processing Type: | Plastic Thermoforming Machine; | Servo motor: | YASKAWA or DELTA; |
| Product name: | PP PS PET plastic cup automatic thermoforming machine price; | Air Comsumption(L/min): | 5000 L/min; |
| Local Service Location: | None; | Heating Power (kW): | 100 kW; |
| Key Selling Points: | High Productivity; | Forming depth: | ≤180mm or customizable; |
| Material: | PET, PP, PS, PE, PLA etc.; | Condition: | TradeAssurance; |
| After Warranty Service: | Video technical support,Online support,Spare parts; | Voltage: | 380v/50hz; |
| Speed: | ≤30cycles/minute; | Heating bricker: | Tianbao; |
| Supply Ability: | 10 Set/Sets per Month PP PS PET plastic cup automatic thermoforming machine price; | HS Code: | 8477409000; |
| Sheet Thickness(mm): | 0.3 - 2 mm; | Dimension(L*W*H): | 3950x1600x2300mm; |
| Certification: | CE; | Production Speed(Cycles/min): | 30; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash; |

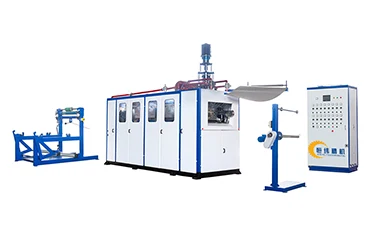

| Product name: HW-730 Air Pressure Thermoforming Machine |  |
Forming area: 420*730mm | |
| Forming depth: ≤180mm | |
| Suitable materia: PP,PS,PET,PLA(biodegradable material) etc. | |
| Capacity: ≤25shots/minute | |
| Material thickness: 0.3-2.0mm | |
| Air consumption: 4000~5000 L/min | |
| Water consumption: 40-50L/min | |
| Machine size: 3950*1600*2300 | |
| Weight: 5.5 ton |
Shanghai Yiyou having entered the thermoforming industry as a manufacturer in 2010, Yiyou has been among the industry leaders with fully automatic air pressure and vacuum thermoforming machines, semi-automatic vacuum forming machine, thick sheet vacuum thermoforming machine and plastic cup thermoforming machine. Our machines are produced with high quality and performance in mind.

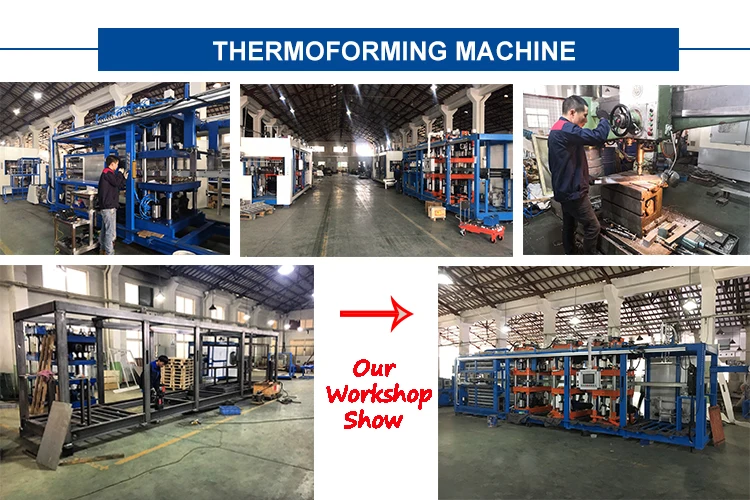

We are working in 2500 m2 production area and still looking for expand, operate with a team of 30 expert staff and R&D department, presenting innovative solutions at a favourable price, has now grown into a position to export to 4 continents and 15 countries so far.
Sectors:
- Dispoable Plastic Cup
- Bowl
- Food Container
- Plate
- Lid
- Biodegradable PLA Cup
- Dairy Cup
- Bucket
- Flower Pot
Our Advantages:

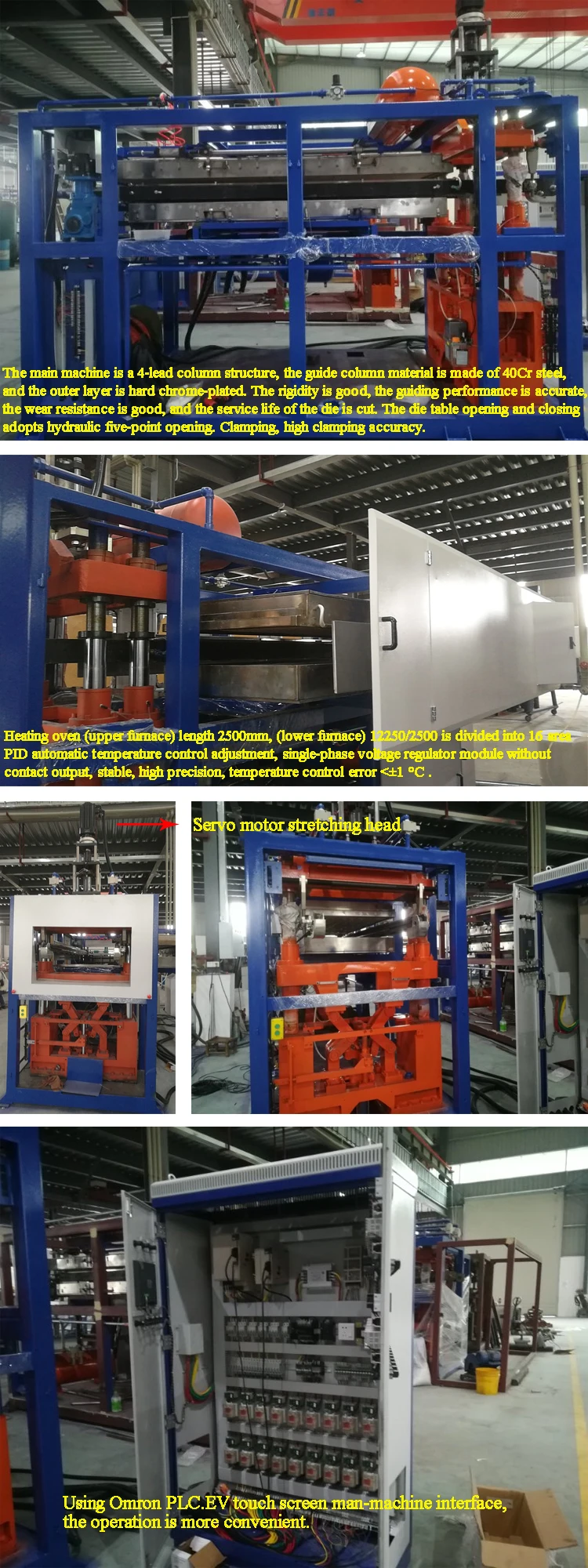

- The main machine is a 4-lead column structure, the guide column material is made of 40Cr steel, and the outer layer is hard chrome-plated. The rigidity is good, the guiding performance is accurate, the wear resistance is good, and the service life of the die is cut. The die table opening and closing adopts hydraulic five-point opening. Clamping, high clamping accuracy.
- The heater adopts clay arc electric heating tile, which has high heat effect, energy saving, safety and reliability.
- Low center of gravity design, low cup height, smooth running, in line with the human body standing and observation of the best height.
- The feeding power adopts frequency conversion motor and hard tooth surface Taiwan brand speed reducer, with high control precision, accurate positioning and quick start and stop response.
- Using Omron PLC.EV touch screen man-machine interface, the operation is more convenient.
- The back end is equipped with a corner winding mechanism, the maximum winding diameter is 1000mmm, and the roll change is convenient.
Main Configuration
| No. | Part | Brand |
| 1 | PLC | Omron |
| 2 | Touch screen | Taiwan Wei Lun |
| 3 | Electromagnetic valve | Taiwan You Yan |
| 4 | Cylinder | Fangda |
| 5 | Servo motor | Yaskawa |
| 6 | Intermediate relay | Omron |
| 7 | Ceramic heater | Tianbao |
| 8 | AC contactor | Schneider |
| 9 | Frequency converter | INVT |
 |  |
 |  |
Contact Supplier We are looking forward to work with you! | ||
| Contact Person: | Mr. Hence Hu |  |
| Email: | hencehu@ hwblistermachine.com | |
| WeChat: | hencehu23 | |
| WhatsApp: | 0086 18001969771 | |
| Mobile: | +86 18001969771 | |
| Skype: | a375648860 | |
| Facebook: | https://www.facebook.com/hence.hu.thermoforming.machine | |
| Youtube Chanel: | https://www.youtube.com/channel/UC8305a3lE7WgPDbMtrjZ60w | |
| Our Address: | No.355 of HePeng Road, BaiHe Town, QingPu District, Shanghai, China | |
We are working in 2500 m2 production area and still looking for expand, operate with a team of 30 expert staff and R&D department, presenting innovative solutions at a favourable price, has now grown into a position to export to 4 continents and 15 countries so far.

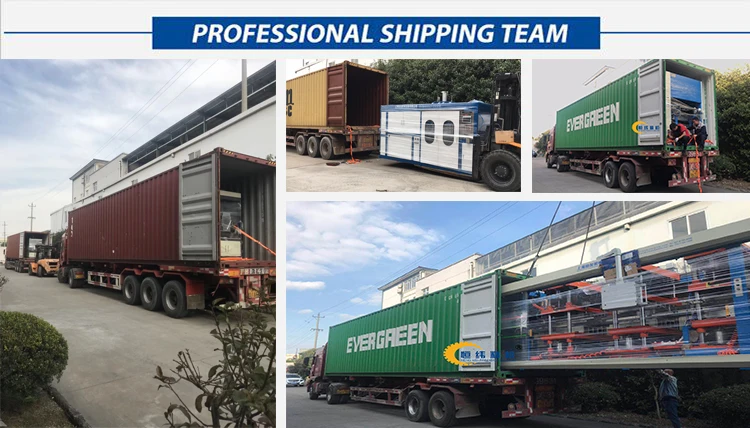

We have a very good professional loading and unloading team, the team has more than ten years of professional loading experience, and serves the delivery tasks of many Fortune 500 companies in Shanghai. The team has a range of forklift trucks ranging from 5 tons to 100 tons, which can be fully qualified for delivery of various type of our thermoforming machine. Moreover, every time we put the machine into the container, we will also use the imported professional fixing rope to firmly fix the machine in the container, which can effectively avoid the machine damage caused by the collision of the machine at sea.
Shanghai Yiyou having entered the thermoforming industry as a manufacturer in 2010, Yiyou has been among the industry leaders with fully automatic air pressure and vacuum thermoforming machines, semi-automatic vacuum forming machine, thick sheet vacuum thermoforming machine and plastic cup thermoforming machine. Our machines are produced with high quality and performance in mind.

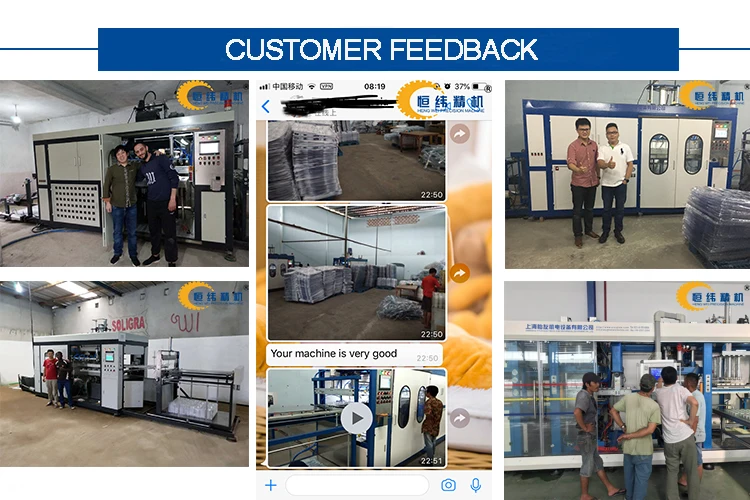

Through our efforts over these years, we have accumulated more than 20 countries customer in our service. Under our meticulous service, all customers have a very high evaluation of our vacuum forming thermoforming machine quality and our services. And many customers have purchased a lot of equipment after the first purchase.
Our company is located in Shanghai, the economic capital of China. The factory is located in Suzhou, only 40 minutes by drive. Shanghai has very convenient transportation, and all countries around the world have direct flights to Shanghai. This is convenient for customers who want to purchase our equipment in the future if they want to inspect the machine or after-sales service. Moreover, Shanghai is China's quality capital, because all Shanghai products enjoy international reputation, because if we do not control the quality of the plastic thermoforming machine, we can not stand in Shanghai!
Quality is our culture, We build a brand with soul!!!
