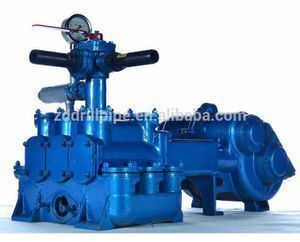

High Quality Portable BW-450 Horizontal Three-Cylinder Reciprocating Double-Acting Piston Pump for Drilling Rig

Supplier: Ningbo Zhedong Geologic Equipment Manufacturing Co., Ltd.
Region: Zhejiang, China
Contact: Mr. Oliver Chang
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Export Wooden Packaging;	Weight:	540kg;
Port:	Ningbo Port, China;	Max. flow:	450L/min;
Product Name:	Drilling Mud Pump;	Type:	Horizontal Piston Pump;
Max. pressure:	2MPa;	Payment Terms:	L/C,T/T;
Model Number:	BW450;	Cylinder diameter:	100mm;
Dimensions:	13508201040;	Piston Stroke:	85mm;
Supply Ability:	500 Set/Sets per Month;

Product Description

BW450 mud pump is a horizontal three-cylinder reciprocating double-acting piston pump. The pump has a two-speed flow and two gear pressure, can well meet the different pore size, hole depth or drilling process needs. With a smooth operation, the output pressure is high, stable performance and so on.

Technical parameters

Type	Horizontal Three-Cylinder Reciprocating Double-Acting Piston Pump
Stroke (mm)	85
Cylinder Diameter (mm)	100
Pump Speed (min^-1)	170	115
Flow (L/min)	450	350
Pressure (MPa)	1.2	2
Power (KW)	18.5
Shape Size (mm) (L×W×H)	1350×820×1040
Weight (kg)	540 (Without Power)
