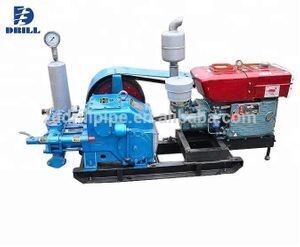

BW160/10 mud pump for drilling rig
- 2700.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Max. pressure: | 10MPa; | Weight: | 430kg; |
| Product Name: | Drilling Pump; | Cylinder diameter: | 70mm; |
| Max. flow: | 160L/min; | Piston Stroke: | 70mm; |
| Packaging Detail: | Export wooden packaging; | Supply Ability: | 500 Set/Sets per Month; |
| Dimensions: | 1450*745*970; | Port: | Ningbo Port, China; |
| Model Number: | BW160/10; | Type: | Horizontal piston pump; |
| Payment Terms: | L/C,T/T; |
Product Description
BW160/10 mud pump has a four-speed flow and four-gear pressure, flow and pressure range, suitable for different hole drilling and back-dragging, can also be used as rotary drilling core drilling, chemical, mine drainage and soft foundation grouting construction.
Technical parameters
| Type | Horizontal three cylinder reciprocating single acting piston pump | ||||
| Stroke (mm) | 70 | ||||
| Cylinder diameter (mm) | 70 | ||||
| Pump speed (min-1) | 200 | 132 | 83 | 55 | |
| Flow (L/min) | 160 | 107 | 67 | 44 | |
| Pressure (MPa) | 2.5 | 4 | 6.5 | 10 | |
| Power (KW) | 11 | ||||
| Shape size (mm) (L×W×H) | 1450×745×970 | ||||
| Weight (kg) | 430 | ||||
