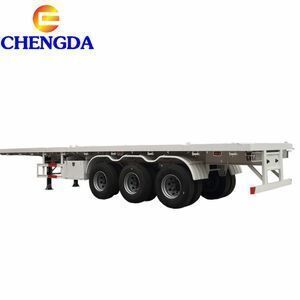

3 Axles 40 feet 20ft 40ft Shipping Container Flat Bed Flatbed Semi Trailer for Sale

Click here to contact

Product details

Brand Name:	Chengda;	OEM No.:	chengda trailer;
Place of Origin:	Shandong China;	Size:	1250025001550mm;
Product name:	Flatbed Container Semi Trailer;	Single package size:	1X1X1 cm;
Use:	Truck Trailer;	Certification:	CCC BV ISO WMI;
Landing Gear:	Standard 28Ton;	Axle:	13 Ton Fuwa Brand;
Tire:	Triangle Brand;	Container Locks:	12pieces;
Material:	Steel;	Suspension:	Mechanical Suspension;
Max Payload:	40T;	Type:	Semi-Trailer;
Single gross weight:	1 KG;	Selling Units:	Single item;
Floor Thickness:	3mm;	Function:	Transport 20ft 40ft Container;
Package Type:	nude packing, spraying wax before shipment for 3 Axles 40 feet 20ft 40ft Shipping Container Flat Bed Flatbed Semi Trailer for Sale;	King pin:	2"(50mm)or3.5"(90mm) JOST;
Color:	Customers Optional;

Product Description

Specification
Name	flatbed semi trailer 3 axle 40 ton 40ft
Model	SCD9400P
Overall dimension	12500 2500 1550mm
Loading capacity	40T
Axle brand and number	13TFuwa Brand, 3units
Wheel base(mm)	6880+1310+1310
Kingpin	50# or 90#
Steel Spring	10/10/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
Tyre and quantity	12R22.5 12pieces
Landing gear	28T, double speed operation
Platform plate	3mm Checkered steel plate
Brake system	Dual Line braking system ,none ABS.
Brake air chamber	Four double and two single chamber
Electrical system	24V,7 pin socket,One set 6-core standard Cable
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box	1 set
Spare tire carrier	2 sets
Painting	Optional
Packing	Polish with wax before shipping
