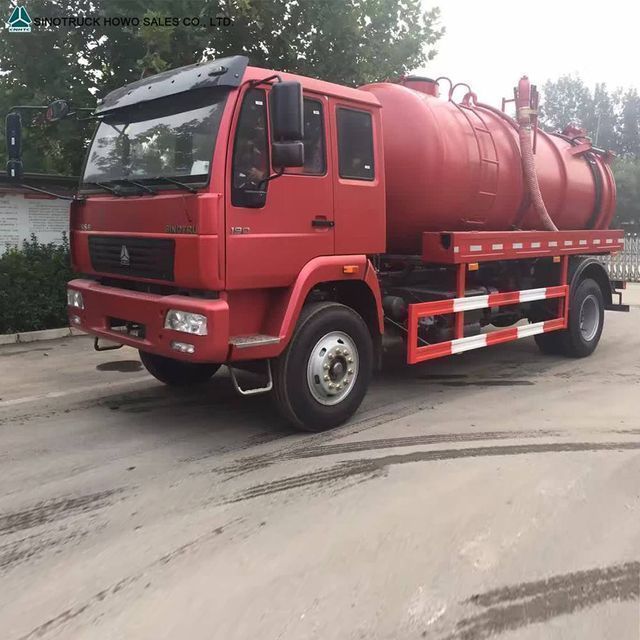

Used HOWO Type 20000 L sewage suction truck for sale

  • Supplier: Shandong Chengda Auto Sales Co., Ltd.
  • Region: Shandong, China
  • Contact: Mr Alan Lee
  • Price: $4500.00 / 1 - 4 units
    $4300.00 / 5 - 9 units
    $4000.00 / >=10 units
  • Min. Order: 1 unit
Click here to contact
Product details
Packaging Details:Packaged bare in wax before shippingState of health:used
payment terms:wire transferbrand:HOWO
Body size:8200*2480*3200Driver type:6x4
engine:WD615.87Certificate:ISO9001 CCC
Fuel tank capacity:10000LEmission Standards:euro 3
Gross Vehicle Weight:5-10 tonsfetal:12.00R20
Fuel type:diesel engineWheelbase (mm):3800mm
After-sales service provided:Online support, video technical support, free spare partsChassis brand:HOWO
horsepower:351 - 450 hpplace of origin; place of origin:Shandong
product name:Vacuum suction truckPump:Special vacuum pump
Supply capacity:100 units per monthport:Tianjin/Qingdao
Capacity (load):21 - 30 tonsFuel tank capacity:14-16 cubic meters
Transmission type:automaticcolor:request customization
Used HOWO Suction Type 20000 L Sewage Suction Truck for Sale
Product Description
Suction tanker
Vacuum suction truck
vacuum cleaner
more details
fetal
12.00R20 Radial
10+1
chassis
Front axle: HF9
Real axis: HC16
burden
Model
Horsepower: 371 horsepower
Emissions: Euro 2

Specification
chassis
ZZ1167M4611W
engine
Brand: Sinotruk
Diesel engine: four-stroke direct injection diesel engine
Engine model: WD615.62, Euro II emission standard
6-cylinder in-line water-cooled, turbocharged, intercooled
Maximum output: 266 HP (196KW) at 2600 rpm
Maximum torque: 1100 Nm at 1100-1600 rpm
Number of cylinders: 6
Displacement: 9.726 liters
Aperture: 126mm
Stroke: 130mm
drive form
left hand drive
clutch
430C Pull Diaphragm Spring Clutch. Friction disc diameter: 430mm
send
HW13710, 10 forward and 2 reverse.
propeller shaft
Double universal joint drive shaft with gear-shaped connecting flange
front axle
high frequency 7
rear axle
ST13, central single reduction, full floating axle shaft, steel plate press-welded axle housing.
chassis
Frame: U-shaped parallel ladder frame with a section of 300×80×8mm, full cold riveted beam
Front Suspension:
9 semi-elliptical leaf springs with hydraulic telescopic double-action shock absorption
Absorbents and Stabilizers
rear suspension:
15 semi-elliptical leaf springs with hydraulic telescopic double action
shock absorber
Aluminum fuel tank:
300 liter capacity with locking fuel cap mounted on opposite side of chassis
steering
ZF8098, hydraulic power steering.
brake
Service brake: double circuit compressed air brake
Parking brake (emergency braking):
Spring energy, compressed air to the rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
electrical appliance
Working voltage: 24V, negative ground
Starter: 24V, 7.5Kw
Alternator: 28 V, 1500 W
Batteries: 2×12V, 165Ah
Cigarette lighter, horn, headlights, fog lights, indicator lights and backup lights
weight kg
Weight: 8840
Gross vehicle weight: 19000
Body
Body volume (m3): 12
Packing volume (m3): 2.2
One filling cycle time: ≤30
Filling lifting time (s): 8-10
Discharge time (s): ≤55
Fluid system pressure (Mpa): 20
Front and rear sewage capacity (L): 250+150
Maximum compression force (kg): >25000
