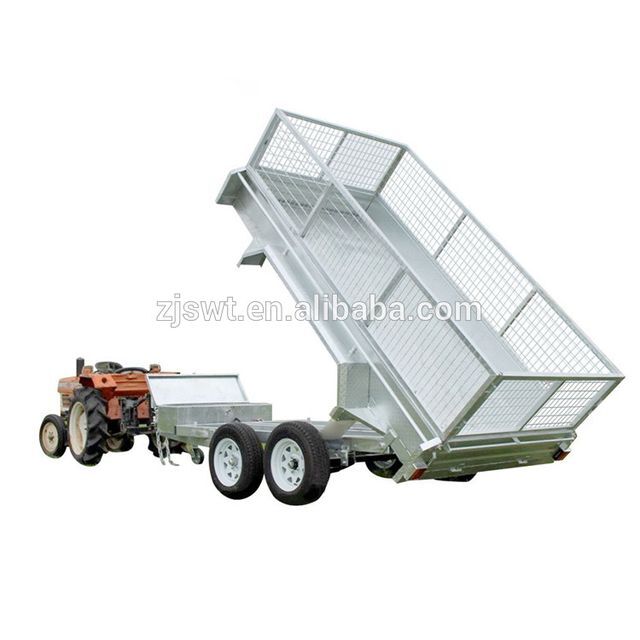

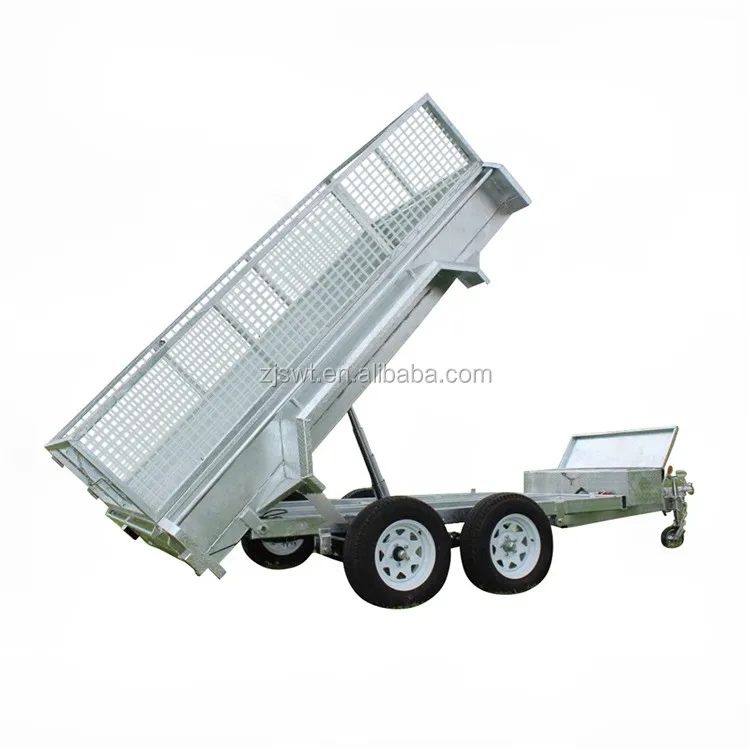

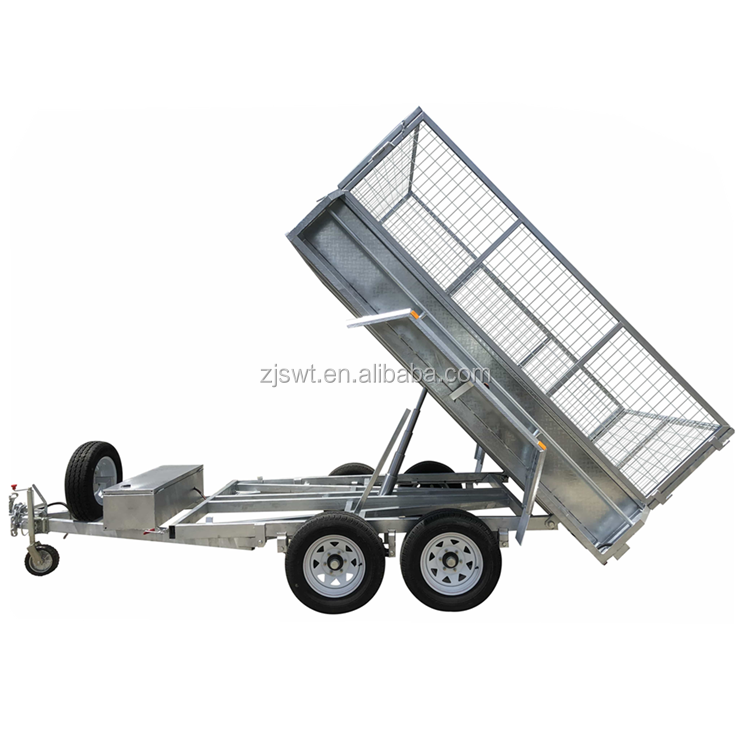

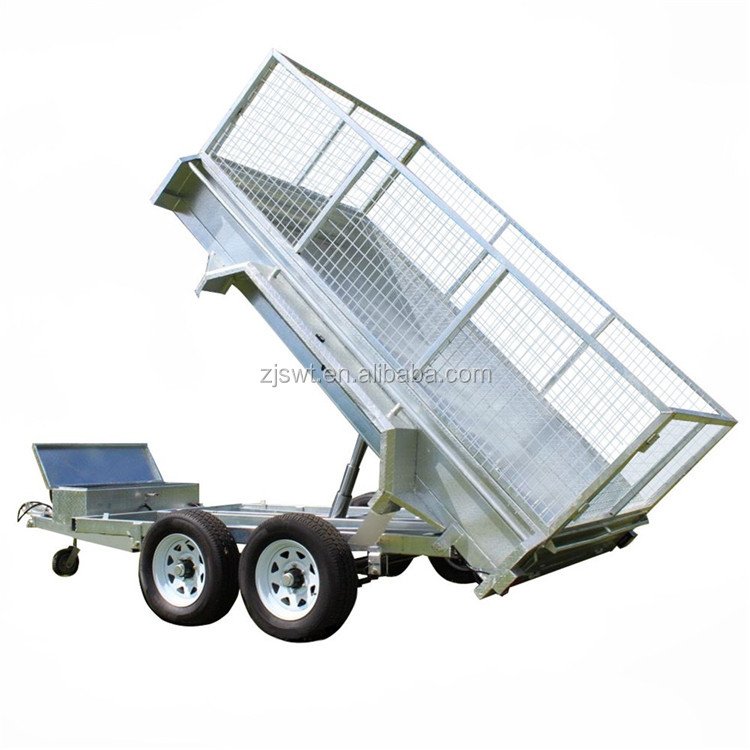

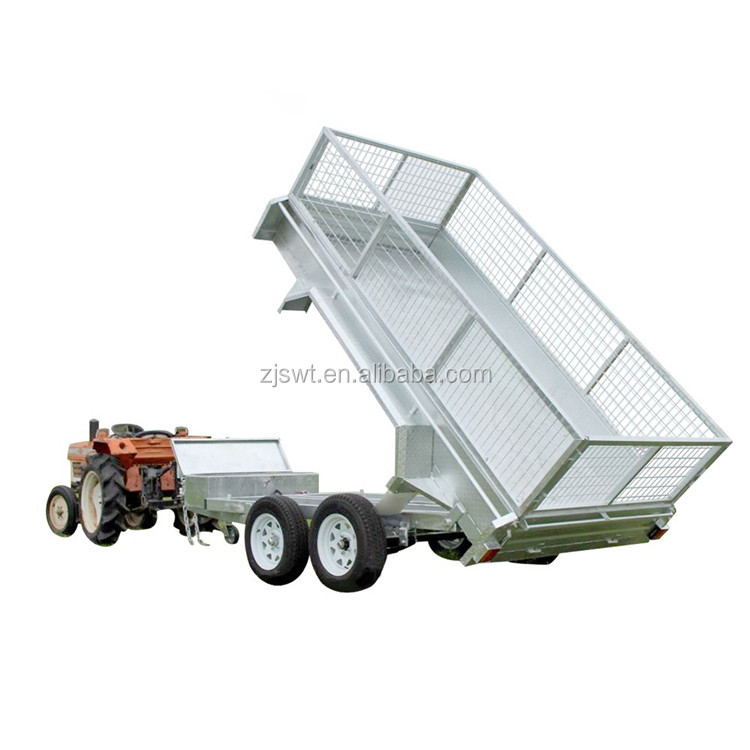

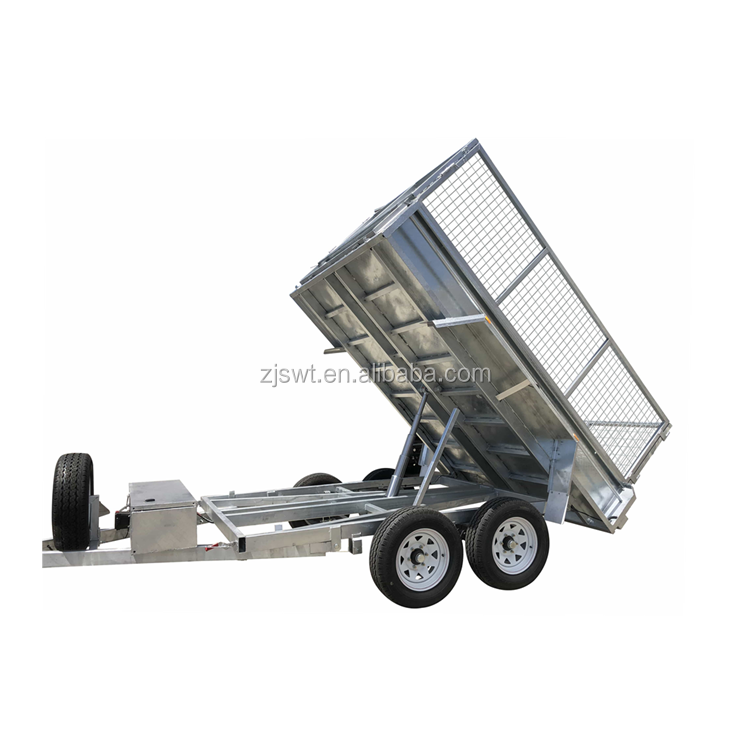

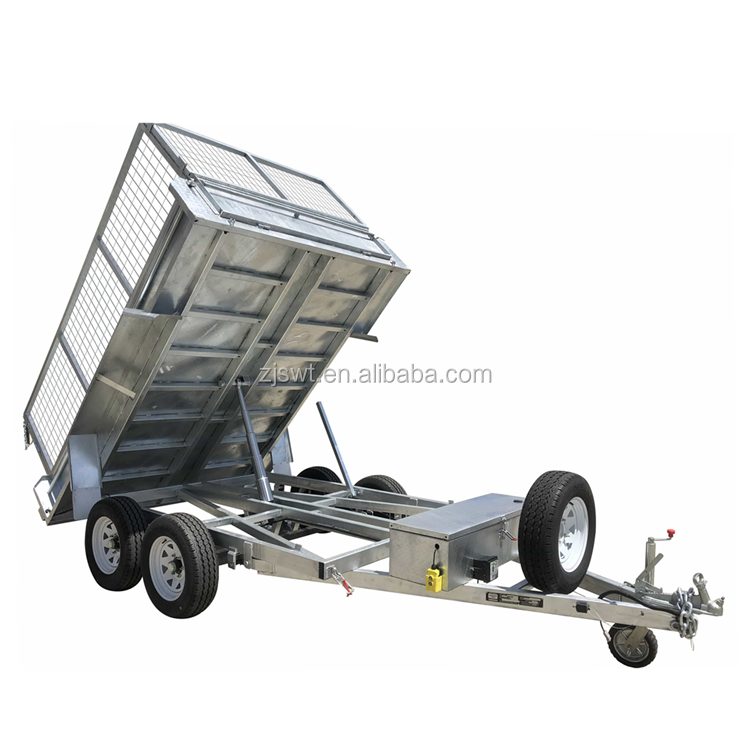

Best Selling Galvanized 10x5 Tandem 2 Ton Hydraulic Dump Truck Dump Box Trailer (New) For Loading Timber, Grass etc

size

model

total measurement

Inner box size

spring

wheel

surface treatment

Volkswagen

8x5 feet

SWT-HTT85

4150x2025x800mm

2440x1525mm

6 leaves

185/70R14

hot dip gallon

2000KGS

9x5 feet

SWT-HTT95

4410x2025x800mm

2700x1525mm

6 leaves

185/70R14

hot dip gallon

2000KGS

10x5 feet

SWT-HTT105

4760x2025x800mm

3050x1525mm

6 leaves

185/70R14

hot dip gallon

2000KGS

10x5 Fully Welded Hydraulic Dump Trailer Instructions

pull rod

100x50x4mm right axis. 1600mm long with 2x10mm safety chain

lower chassis

100X50x4mm RHS (non-angle)

upper chassis

100X50x3mm RHS (non-angle)

Floor and side panels

2.5mm grid plate, fully welded to the upper case (not cheap ribbed zinc plate)

fender

2.5mm lattice board

axis

50mm solid square, front axle disc brakes

spring

7leafs swingarm suspension (not 5leafs or 6leafs cheap and light springs)

wheel

185R14C 14 inch white painted wheels

horse racing wheel

6" headwind heavy duty jockey wheels. Comes with E-mark and DOT certificate

coupler

50mm AU Standard Coupling, 1 7/8 NZ Standard Coupling, EU Standard Coupling

lamp

LED light with 7pin plug and 7-pin wiring. E-mark and DOT certification

toolbox

2.5mm battery and motor inspection board kit

Dump truck system.

5th grade ram

45 degree box dump

3500KGS tipping capacity

motor

12V, 15L, fuel tank

surface treatment

hot dip galvanized
