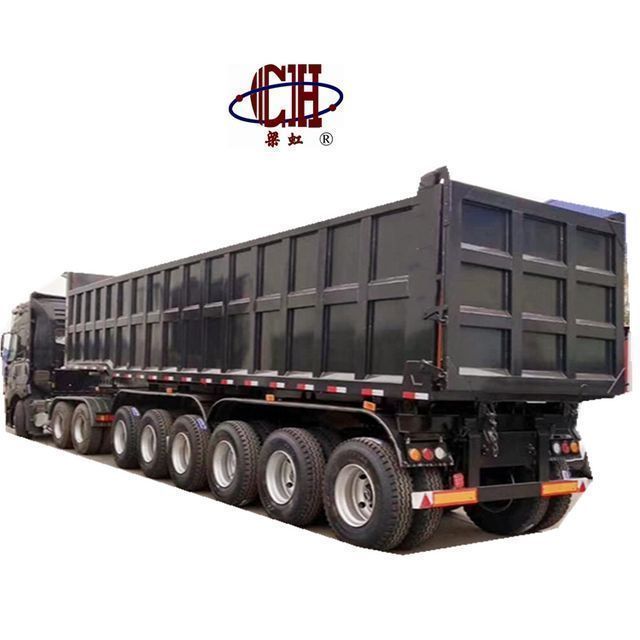

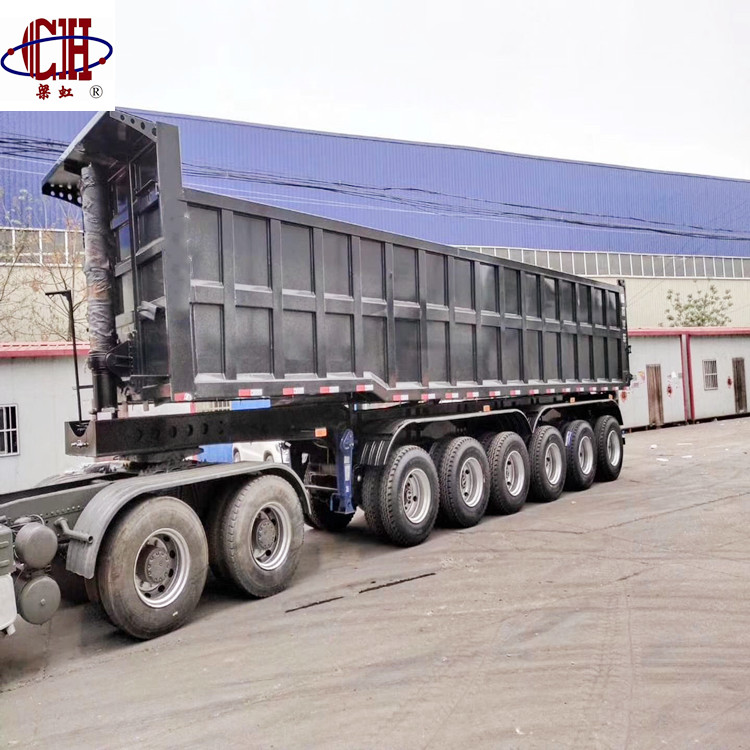

6 axle dump truck dump trailer dump box semi trailer

Supplier: Liangshan Changhong Special Purpose Vehicle Manufacturing Co., Ltd.
Region: Shandong, China
Price: $25000.00 / 1 - 9 units
$22000.00 / 10 - 19 units
$20000.00 / >=20 units
Min. Order: 1 unit

Click here to contact

Product details

port:	Tianjin Qingdao Shanghai	Origin:	Shandong China
brand:	H	Certification:	ce
wheel:	twenty four	use:	truck trailer, truck trailer
brand:	CH	payment terms:	T/T, Western Union
Package preview:		Material:	steel, steel
Original serial number:	MXH9402ZZXP	Packaging Details:	based on customer's needs
color:	customer optional	Maximum Payload:	150 tons
type:	semi trailer	fetal:	11.00r20/12r22.5
product name:	dump semi-trailer	Supply capacity:	1000 pieces per month
port:	Qingdao Tianjin Shanghai	Number of axles:	6
size:	1300025001800mm, 1300025001800mm

6 axle dump truck dump trailer dump box semi trailer

Product Description

axis:Famous Bridge
Durable trailers and high truck attendance
Chassis: China Best Q345B-T700 Support Stronger Trailer Skeleton
Tires: High-quality tires support the trailer to run safely and smoothly
King Pin: JOST detachable stand, durable and quick and easy to replace
Emergency valve: fast response, low failure support safety and protect tires for longer use

Dimensions	1300025001800 optional
curb weight	9.5 tons
loading capacity	40T, 50T, 60T, 70T, 80T, 90T, 100T, 150T
Main Beam Specifications	T700/Q345 steel, height: 500mm, plate thickness: 8-16mm
side frame	Channel steel
cross support	Channel steel/bent steel
pause	Mechanical suspension, air suspension or optional
leaf spring	10-layer leaf spring (90mm13mm10pcs)
Axle Specifications	13T/16T/20T BPW or FUWA brand
Wang Pin	2"(50mm)or3.5"(90mm) JOST brand
fetal	11.00R20/12.00R20/ 12R22.5
brake chamber	6 sets
landing gear	28T*2, Yost brand
Accessories	1 standard tool box
Electrical System	24V, a set of 6-core standard wire
Light	Tail lights with turn signals, brake lights and reflectors, side lights, etc.
painting	Sandblasting, primer, surface painting, optional color, waxing and polishing
ladder	spring or hydraulic
Package	FCL, ro-ro, frame or optional
