Twin Shaft E Waste Scrap Metal Plastic Shredder Recycling Machine

Supplier: Wanrooe Machinery Co., Ltd. (Zhangjiagang)
Region: Jiangsu, China
Contact: Mr Anthony Xia
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

shaft design:	double shaft;	Shaft Design:	Double;
Port:	Shanghai;	Dimension(LWH):	Variable;
power source:	380V 50Hz;	Payment Terms:	L/C,T/T,Western Union;
After-sales Service Provided:	Video technical support,Online support;	Brand Name:	wanrooetech;
Key Selling Points:	High Safety Level;	Applicable Industries:	Manufacturing Plant;
Place of Origin:	Jiangsu China;	motor brand:	Siemens;
Certification:	CE;	Voltage:	380v;
certification:	CE;	Weight:	depends;
Blades Material:	SKD11;	Product name:	Twin Shaft E Waste Scrap Metal Recycling Machine Plastic Shredder;
Supply Ability:	500 Set/Sets per Year Twin Shaft E Waste Scrap Metal Recycling Machine Plastic Shredde;	blade material:	SKD-11;
Use:	metal/bottle/e-waste/woven bag;	Capacity:	200kg/h-1000kg/h;
Warranty:	1year;	Condition:	New;
Weight:	3000-5000kg;	Plastic Type:	PP/PE;
Power(W):	5.5-75kw;	Power:	5.5-75kw;
Packaging Detail:	Film Wrapping And Wooden Case for Twin Shaft E Waste Scrap Metal Recycling Machine Plastic Shredder;	Warranty:	1 year;
Capacity:	1000-5000kg;

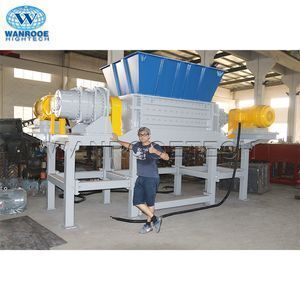

Twin Shaft E Waste Scrap Metal Recycling Machine Plastic Shredder

Product Description

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

for more information, pleases click to contact

CONTACT US

Description:

Double Shaft Shredder with loading hoppers, equipped with high quality cutters with low rotation speed for a lower energy consumption and noise reduction. It incorporates two counter-rotating shafts that intermesh with each other(2 shafts with sharp elements constituted by sharp-corners disks provided with hooks; Every hook has the task to hook the product and drive-it by the action of the two counter-rotating shafts). The material is powerfully torn and shredded by the talons of the cuttings discs. Specially designed rotor makes the shredder be extremely wear resistant.

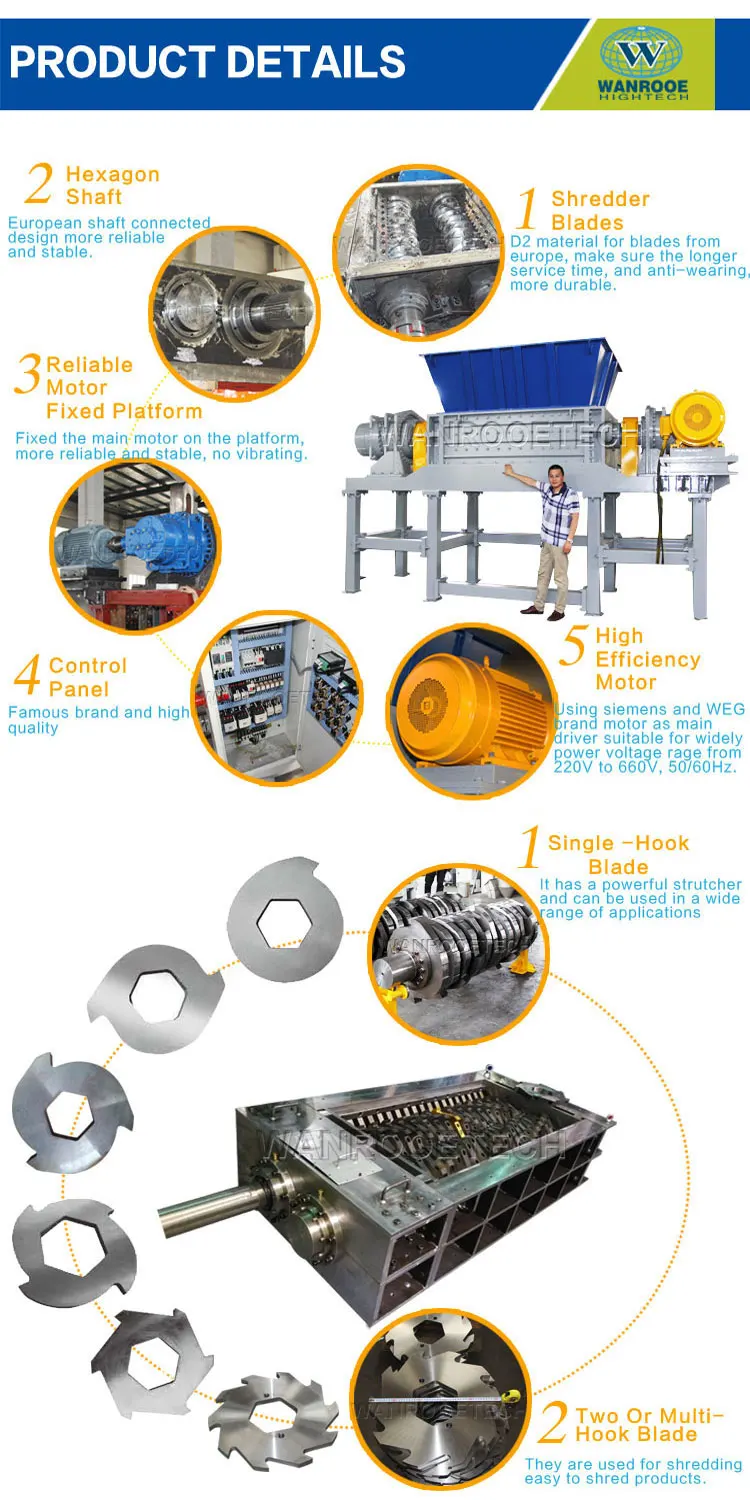

Double Shaft Shredder Blades(According to different materials choose different blades ):

Components:

Technical Features:

1. Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers;

2. Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;

3. The two cutting rotors powerfully grab the feed material, and no matter the feed material is large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;

4. Double shaft shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using forklift truck to feed.

5. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high quality steel, suitable for shredding tough materials and for extra long life;

6. Depending on requirement, these discs (blades) are available in a wide range of quantities, qualities and shapes with the new double-shaft shredder;

7. Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;

8.Cutters removal and replacement can be carried out safely and simply.

9. Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost Effective Precision, High Radial Loads.

10. Cooler system(optional) can maintain the temperature for continuous operation.

Application Areas:

The shredder machine can easily pre-crush:

•plastic sheets;

•electronic waste;

•scrap (components, subassemblies; consumables);

•metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);

•aluminum cans;

•wood(wooden pallets or fruit boxes);

•plastic(plastic bottles or canisters);

•waste tire, rubber;

•waste household appliances;

•paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material);

•textiles (rags, garments, carpet);

•animal bones and organic waste.

Model	Shreddering Motor Power (kw)	Shreddering Chamber size(mm)
PNSS-300	7.5	510×300
PNSS-400	7.5	510×400
PNSS-600	7.5+7.5	510×600
PNSS-800	18.5+18.5	600×800
PNSS-1000	22+22	800×1000
PNSS-1200	30+30	1000×1200
PNSS-1400	55+55	1400×1200
PNSS-1600	55+55	1600×1200
PNSS-1800	75+75	1800×1400
PNSS-2000	90+90	2000×1400

for more information, pleases click to contact

CONTACT US

	Related Product

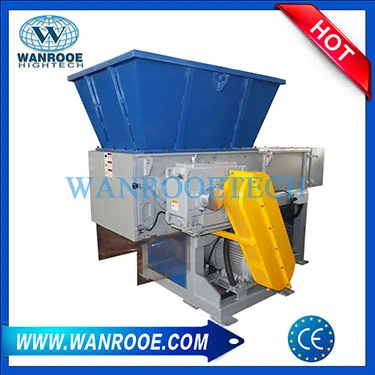

	/Single Shaft Shredder/
	Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper etc.
	Learn More
