GM130 Digital ultrasonic thickness gauge meter corrugated steel sheet thickness gauge meter

Supplier: Zhangzhou KASUN Electronic Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Ron Qiu
Price: $100.00 / >=12 pieces
Min. Order: 12 pieces

Click here to contact

Product details

Packaging Detail:	QTY: 12PCS N.W:3KGS G.W:15KGD MEAS:51.740.532cm;	Supply Ability:	60000 Piece/Pieces per Month;
Payment Terms:	T/T,Western Union;	Place of Origin:	Guangdong China;
Delivery Detail:	5-10days;	Brand Name:	OEM;
Port:	Xiamen;	Model Number:	GM130;

Product Description

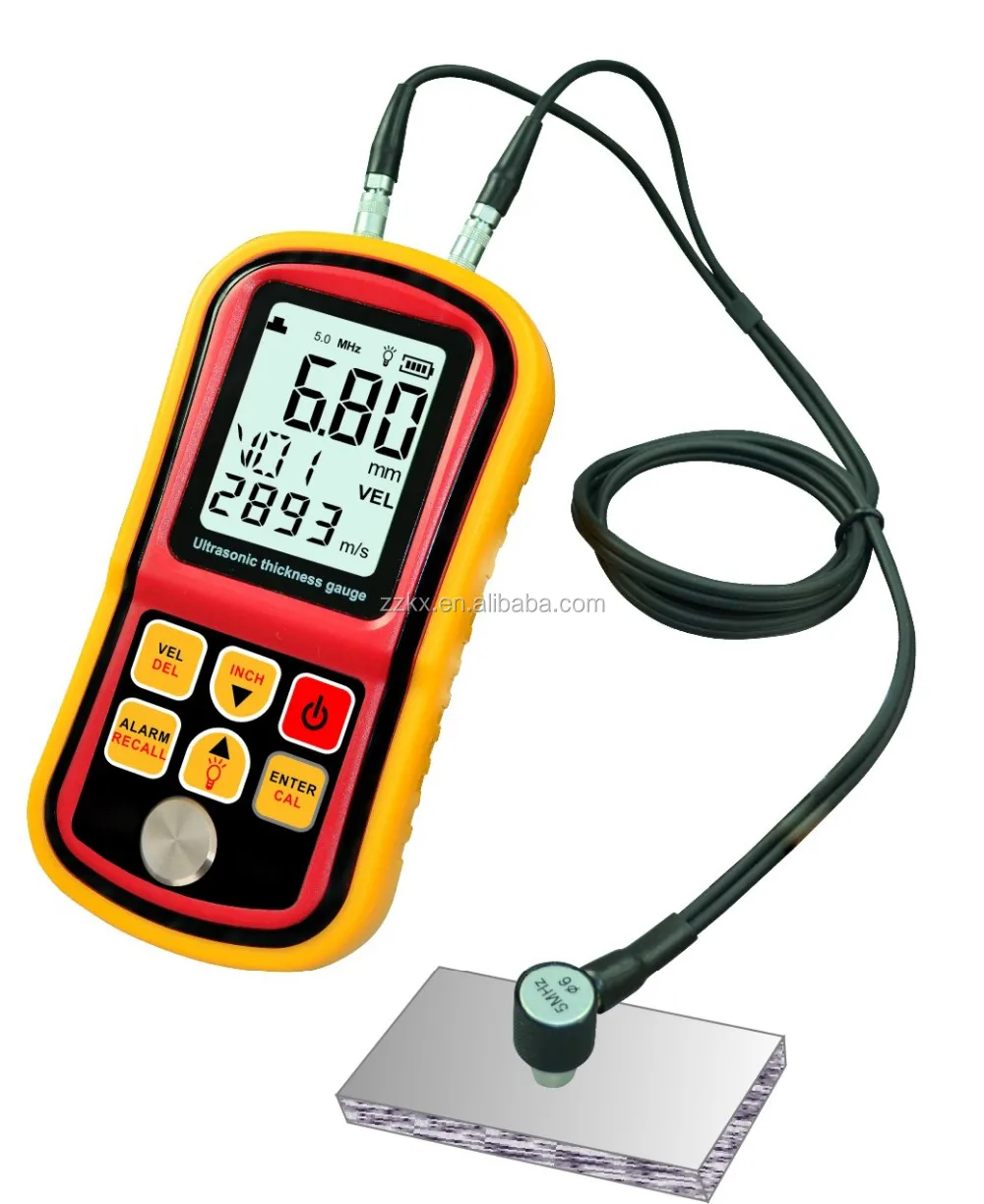

Ultrasonic Thickness Gauge GM130

*Measuring range: 1.0~300mm (Steel)

*Accuracy: ±(1%H+0.1) mm

*Resolution: 0.01mm

*Sound velocity range: 1000~9999m/s

*Working frequency: 5MHz

*Minimum limit for tube measuring:

Φ10mm probe: Φ20*3mm (Steel)

Φ6mm probe: Φ12*2mm (Steel)

*Auto calibration to assure the accuracy

*Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.

*Data store/ Data recall/ Data delete function

*Sound velocity measurement

*Metric/Imperial unit selection

*Low battery indication

*Auto power off

*LCD backlight display

*Warranty: 12months

*Packing Method: Gift box + PP box

*Power supply: 3pcs*1.5V AAA alkaline batteries

*Weight: 210g

*Dimension: 70*145*28mm

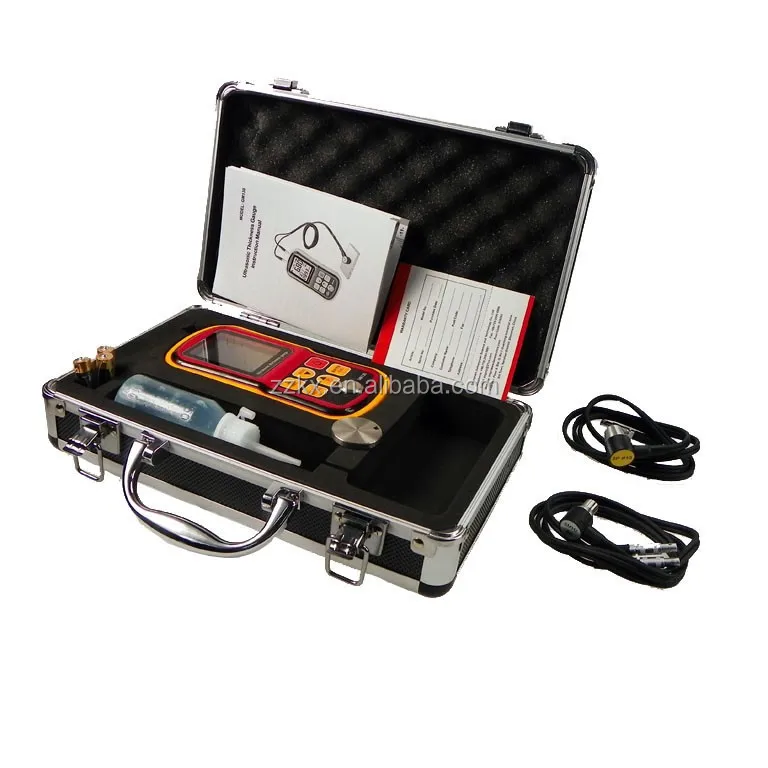

Detailed Images
