Portable EFG series Digital Force Gauge With USB Upload To PC

Supplier: Zhangzhou KASUN Electronic Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Ron Qiu
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

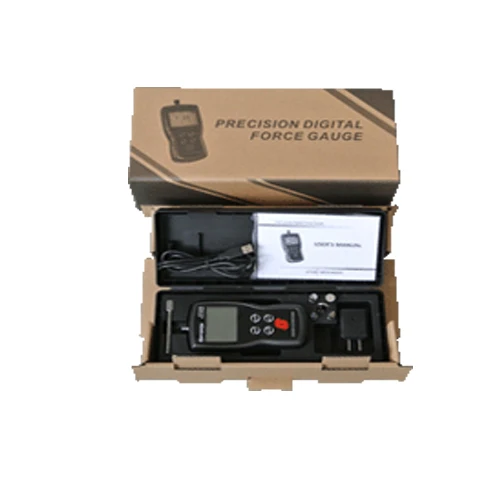

Packaging Detail:	Gift box;	Brand Name:	KASUNTEST;
Port:	Xiamen Shenzhen;	Supply Ability:	300 Piece/Pieces per Month;
Delivery Detail:	4 days;	Model Number:	EFG;
Place of Origin:	Guangdong China;	Payment Terms:	L/C,T/T,Western Union;

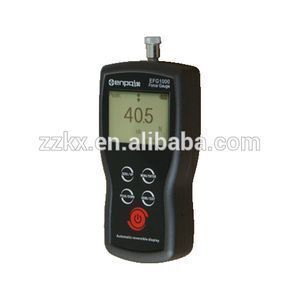

Portable EFG series Digital Force Gauge With USB Upload To PC

Feasures

Accuracy: ± 0.2% of Full Scale
Ergonomic, durable, heavy-duty metal construction
Automatic reversible display
Selectable Units: N, kgf, lbf, ozf and/or gf
Touch pad for minimized disturbance
Protection Mechanism to prevent overload damage
Variety of alarm output function
Data upload to PC

Specifications

Accuracy	± 0.2% F.S.
Selectable Units	N, gf, kgf, ozf, and lbf
Display	160*128 dot matrix LCD with LED Backlight
Overload Capacity	120% F.S.
Overload Protection	Overload Protection Mechanism
Measurement Mode	Track, Peak, AutoPeak
Sampling Rate	2000 Hz
Memory	1000 data
Power	3.6VDC 800mAH Ni-MH rechargeable batteries
Battery Life	Approx. 20 hours per charge
Charger/Adaptor	Universal USB/BM charger, Input:110~240VAC
Outputs	USB, set point output
Dimensions	1607334mm
Weight	0.7 kg (1.5 lb)

Models

Model		EFG5	EFG10	EFG20	EFG50	EFG100	EFG200	EFG500	EFG1000
Capacity /Resolution	(N)	5 / 0.0005	10 / 0.001	20 / 0.005	50 / 0.005	100 / 0.01	200 / 0.05	500 / 0.05	1000 / 0.1
	(kgf)	-	1 / 0.0001	2 / 0.0005	5 / 0.0005	10 / 0.001	20 / 0.005	50 / 0.005	100 / 0.01
	(lbf)	1.1 / 0.0001	2.2 / 0.0005	4.4 / 0.001	11 / 0.001	22 / 0.005	44 / 0.01	110 / 0.01	220 / 0.05
	(ozf)	18 / 0.005	35 / 0.01	70 / 0.01	180 / 0.05	350 / 0.1	700 / 0.1	180 / 0.5	350 / 1

Accessories

Mainly Unit
Calibration block
Data Cable
