Laboratory Equipment HF-1000 Digital Push Pull Gauge with Load Cell
- 100.00 set
| port: | Shanghai/Ningbo | charger: | Input: AC 100-240v Output: DC 12V 500mA |
| MOQ: | 1 set | place of origin; place of origin: | Zhejiang, China |
| brand: | Ali Qi | accurate: | ±1% |

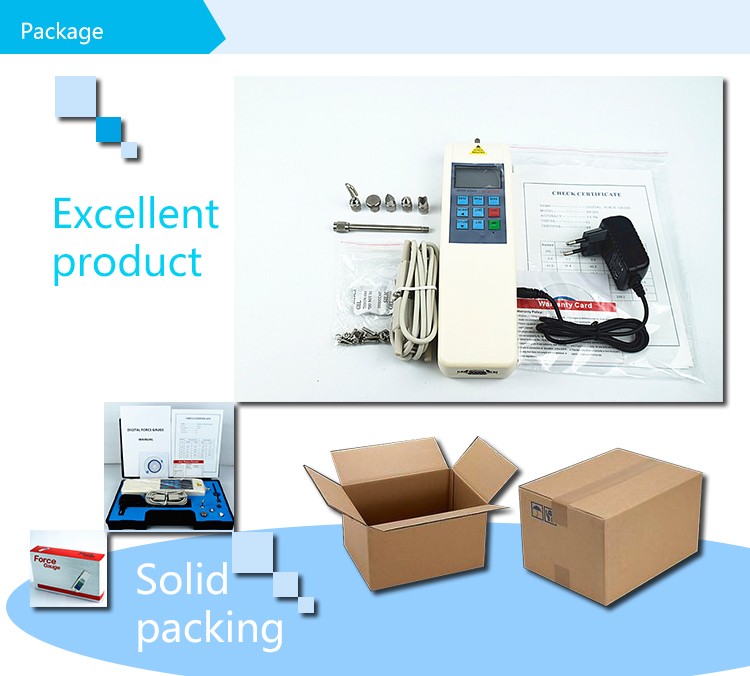

| sensor: | internal or external sensor | Packaging Details: | One pack in a white plastic box, then put into a cardboard box |
| Warranty: | 1 year, 1 year | Certification: | CE certification |
| Customization support: | OEM production | Types of: | Force Gauge |
| Battery power: | 7.2V 1.2V*6 Ni-MH battery | payment terms: | Western Union, T/T, MoneyGram, use Disa or Master Card or paypal Escrow Alibaba to us |
| Package preview: | capacity: | 1000N/100Kgf | |
| model: | HF-1000 | unit: | N, kilogram, pound |
| Load index value: | 0.1N, 0.01kg ,0.01Lb | Supply capacity: | 100 sets per week |

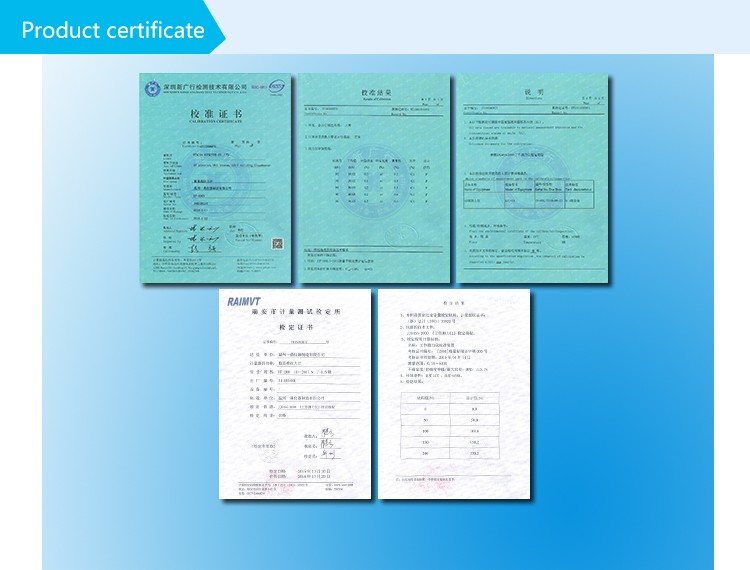

| Certificate: | CE/calibration certificate available |

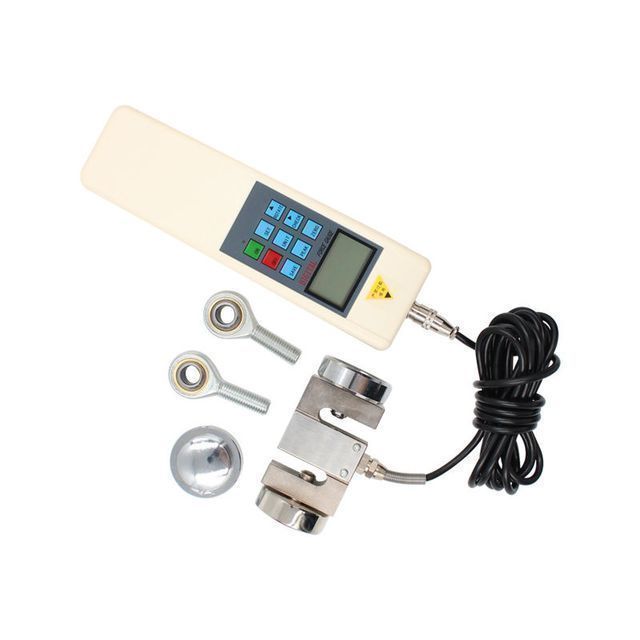

Laboratory equipment HF-1000 digital push-pull gauge
with load cell
|

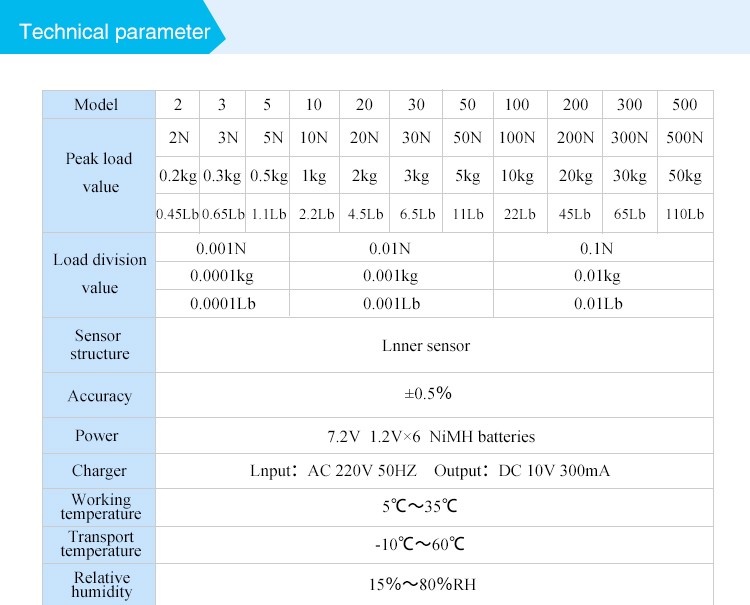

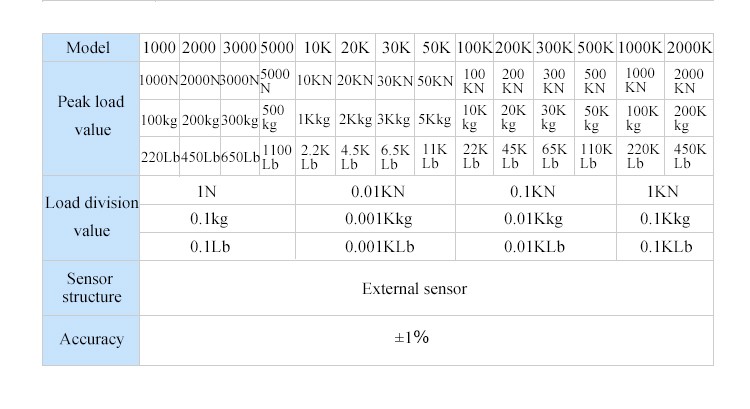

Model |
2 |
3 |
5 |
10 |
20 |
30 |
50 |
100 |
200 |
300 |
500 |
1000 |
||
|
peak load value |
2N |
3N |
5N |
10N |
20N |
30N |
50N |
100N |
200N |
300N |
500N |
1000N |
||
|
0.2 kg |
0.3 kg |
0.5 kg |
1 kg |
2KG |
3 kg |
5 kg |
10 kg |
20 kg |
30 kg |
50 kg |
100 kg |
|||
|
0.45 lbs |
0.65 lbs |
1.1 lbs |
2.2 lbs |
4.5 lbs |
6.5 lbs |
11 pounds |
22 pounds |
45 pounds |
65 pounds |
110 lbs |
220 lbs |
|||
|
load sharing value |
0.001N |
0.01N |
0.1N |
|||||||||||
|
0.0001 kg |
0.001 kg |
0.01 kg |
||||||||||||
|
0.0001 lbs |
0.001 lb |
0.01 lb |
||||||||||||
|

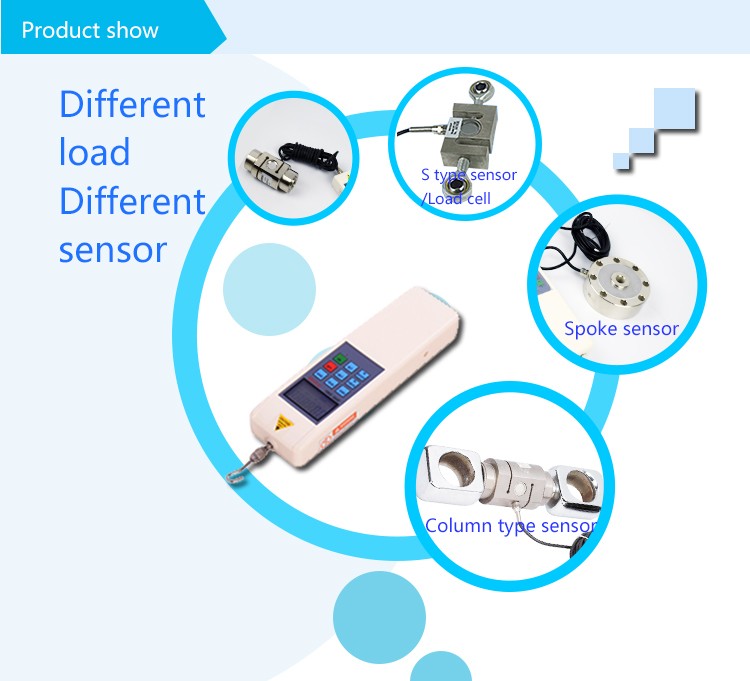

sensor structure |
internal sensor |
internal/external |
||||||||||||
|
accuracy |
±0.5% |
±1% |
||||||||||||
|
strength |
7.2V 1.2V×6 Ni-MH batteries |
|||||||||||||
|

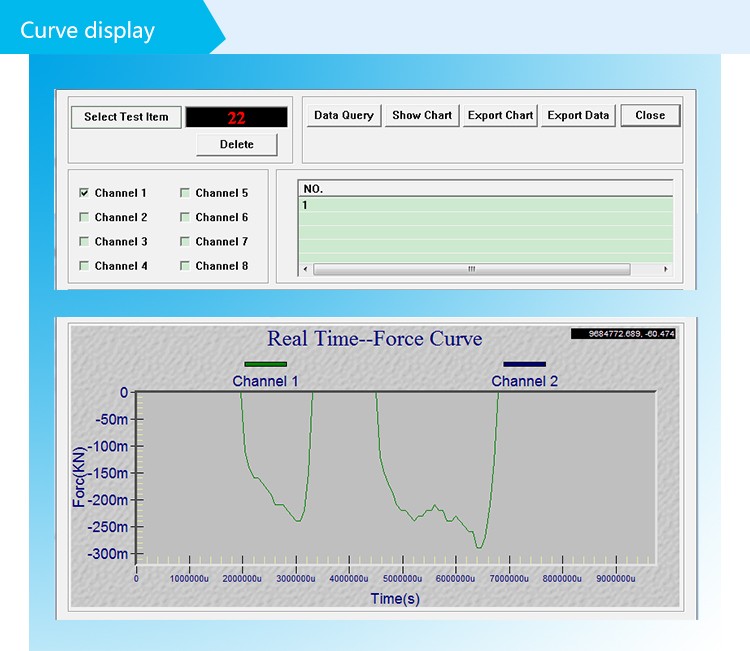

Data interface |
RS 232 nine-hole socket |
|||||||||||||
|
charging time |
4~6 hours |
|||||||||||||
|
Battery continuous use time |
about 15 hours |
|||||||||||||
|
Battery Life |
≥300 times |
|||||||||||||
|
charger |
Input: AC 100-240V 50HZ Output: DC 12V 500mA |
|||||||||||||
|
Operating temperature |
5℃~35℃ |
|||||||||||||
|
transport temperature |
-10℃~60℃ |
|||||||||||||
|
Relative humidity |
15%~80%RH |
|||||||||||||
|
working environment |
No source of vibration and corrosive media |
|||||||||||||
