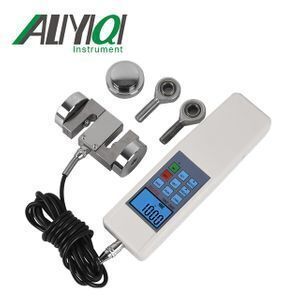

HF Digital Display Dynamometer instrument and push pull force tester
-
Supplier: Wenzhou Tripod Instrument Manufacturing Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms ruby feng -
Price: $105.00 /set -
Min. Order: 1 set
| Size: | 22X30X25cm; | Port: | NINGBO/SHANGHAI; |
| Data interface: | RS 232 nine-hole socket; | Sensor: | External sensor; |
| Charger: | Input:AC 100-240V 50HZ Output:DC 12V 500mA; | Packaging Detail: | One set in a white plastic box, then put in the cardboard box; |
| G.W.: | 24kg; | Brand Name: | ALIYIQI; |
| Product name: | push pull force tester; | Accuracy: | ±0.5%; |
| Max. load: | 2000KN; | Model Number: | HF; |
| Units: | N, kg, lb; | Supply Ability: | 100 Set/Sets per Week push pull force tester; |
| Payment Terms: | T/T,Western Union,MoneyGram,ESCROW alibaba by using Disa or Master Card or paypal to us; |
HF Digital Dynamometer Instrument and Push Pull Forces Gauge Meter
Model | 1000 | 2000 | 3000 | 5000 | 10k | 20k | 30k | 50k | 100k | 200k | 300k | 500k | 1000k | 2000k | |
Peak load value | 1000N | 2000N | 3000N | 5000N | 10KN | 20KN | 30KN | 50KN | 100KN | 200KN | 300KN | 500KN | 1000KN | 2000KN | |
| 100kg | 200kg | 300kg | 500kg | 1Kkg | 2Kkg | 3Kkg | 5Kkg | 10Kkg | 20Kkg | 30Kkg | 50Kkg | 100Kkg | 200Kkg | |
| 220Lb | 450Lb | 650Lb | 1100Lb | 2.2KLb | 4.5KLb | 6.5KLb | 11KLb | 22KLb | 45KLb | 65KLb | 110KLb | 220KLb | 450KLb | |
load division value | 0.1N | 1N | 0.001KN | 0.01KN | 0.1KN | 1KN | |||||||||
| 0.01kg | 0.1Kg | 0.0001KKg | 0.001KKg
| 0.01KKg | 0.1KKg | |||||||||
| 0.01Lb | 0.1Lb | 0.0001KLb | 0.001KLb | 0.01KLb | 0.1KLb | |||||||||
Sensor structure | Inner/External Sensor | External sensor | |||||||||||||
Accuracy | ±1% | ||||||||||||||
Data interface | RS 232 nine-hole socket | ||||||||||||||
Power | 7.2V 1.2V×6 NiMH batteries | ||||||||||||||
Charging time | 4~6 hours | ||||||||||||||
The battery of continuous use of time | About 15 hours | ||||||||||||||
Battery Life | ≥300 times | ||||||||||||||
Charger | Input:AC 100-240V 50HZ Output:DC 12V 500mA | ||||||||||||||
Working temperature | 5℃~35℃ | ||||||||||||||
Transport temperature | -10℃~60℃ | ||||||||||||||
Relative humidity | 15%~80%RH | ||||||||||||||
Working conditions | No hypocenter and corrosive medium | ||||||||||||||
-
