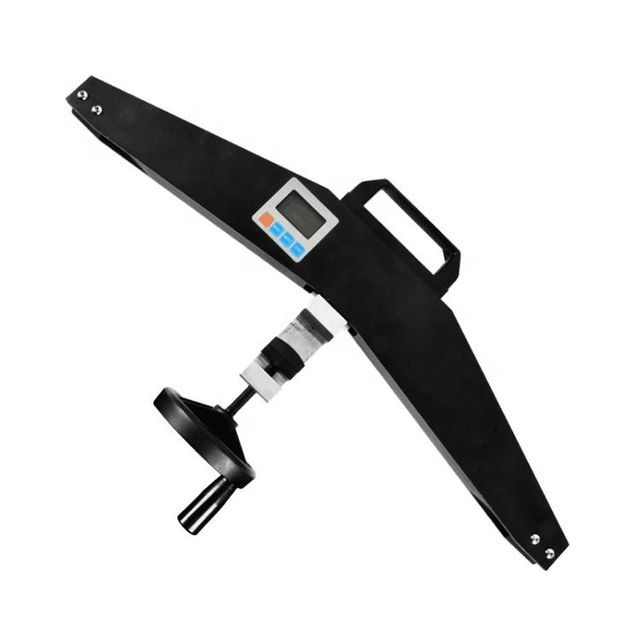

SDEKON ASZ-50 50KN Factory Price Digital Display Wire Rope Tensile Testing Machine
- 2000.00 set
| Packaging Details: | Standard export carton and plywood case | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| type: | Tensiometer | Rope Diameter: | 12-26mm |
| Load scale value: | 0.01kN | Supply capacity: | 500 sets per month |
| Customization support: | OEM production | Warranty: | 1 year |
| aspect: | 650*375*100mm | maximum. load value: | 50 kN |
| Output connector: | RS232 9-hole socket | Shipping temperature: | -10℃~60℃ |
| Relative humidity: | 15%~80%RH | net weight: | 4.7 kg |
| Operating temperature: | 5℃~35℃ | strength: | rechargeable battery charger |
| model: | ASZ-50 | port: | Qingdao |
| brand: | Si Dekang | Origin: | Shandong China |
| Package preview: |
SDEKON ASZ-50 50KNfactory price
Digital display wire rope tensile testing machine
1. Application:
SDEKON ASZ series digital display wire rope tension meter can be used in various occasions,
Such as power industry, telecommunications industry, transportation industry, glass curtain wall
Wall decoration, cableway industry, construction industry, playground, tunnel construction,
Fisheries, major research institutions and teaching institutions, testing institutions, etc.
Where rope and wire rope tension is involved.
2. Technical parameters:
|
Model |
ASZ-50 |
|
maximum. load value |
50 kN |
|
load sharing value |
0.01kN |
|
rope diameter |
Φ12, Φ14, Φ16, Φ18, Φ20, Φ22, Φ24, Φ26mm |
|
output connector |
RS232 9-hole socket |
|
strength |
rechargeable battery charger |
|
Operating temperature |
5℃~35℃ |
|
transport temperature |
-10℃~60℃ |
|
Relative humidity |
15%~80%RH |
|
working environment |
No vibration focus and corrosive medium around |
