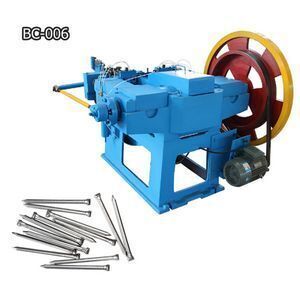

Nail Making Machine / nail making machine india price
- 4999.00 set
| Port: | Tianjin; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Supply Ability: | 100 Set/Sets per Month Nail Making Machine / Screw Making Machine; | Output: | 200pcs/min; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Applicable Industries: | Machinery Repair Shops; |
| Weight (KG): | 1000 KG; | Min length: | 88mm; |
| Key Selling Points: | Automatic; | Color: | Blue; |
| Packaging Detail: | Automatic nail making machine will be packed in wooden case.; | Guarantee: | three years; |
| Warranty: | 1 year; | Name: | Nail Making Machine / nail making machine india price; |
| Condition: | New; | Brand Name: | Baochuan; |
| Place of Origin: | China; | Motor power: | 5.5kW; |
| Power (kW): | 4.5; | Max diameter: | 5.5mm; |
| Weight: | 2500kgs; | After-sales Service Provided: | Free spare parts,Video technical support; |
The nail machine you could choose different size:
Features of common wire nail making machine:
Common wire nail making machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics.
Both scrap and new wire steel can be used as material for common wire nail making machine.
Technical parameter of common wire nail making machine:
Model | Z94-1C
| Z94-2C
| Z94-3C
| Z94-4C
| Z94-5.5C
|
Max. dia. of nail | 1.6mm | 2.8mm | 3.5mm | 4.5mm | 5.5mm |
Min. dia. of nail | 0.9mm | 1.2mm | 1.8mm | 2.8mm | 3.8mm |
Max. Length of nail | 25mm | 50mm | 75mm | 100mm | 150mm |
Min. length of nail | 9mm | 16mm | 30mm | 50mm | 80mm |
Motor power | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw |
Nail making speed | 450pcs/min | 350pcs/min | 320pcs/min | 260pcs/min | 200pcs/min |
L*W*H | 1.5*1.3*1.2m | 1.7*1.3*1.4m | 2.0*1.4*1.4m | 2.2*1.6*1.65m | 2.5*1.6*1.5m |
Weight | 1.2tons | 1.45tons | 1.8tons | 2tons | 2.3tons |
All the nail, our machine all could produte:
We will choose the best parts for the machine:
Process line to produce nails:
1. Wire drawing machine -- to form the exact wire diameter to make nails as required
2. Automatic nail cold heading machine -- to make nails
3. Automatic naile thread rolling machine-- for special nails
4. Polishing machine -- to polish finished nails
Machine production time
1.20 Days from date of advanced payment confirmation
2.Supply media of machine production
Our client:
If you need the best quote and specification, only tell us, then you will get the best reply ASAP
