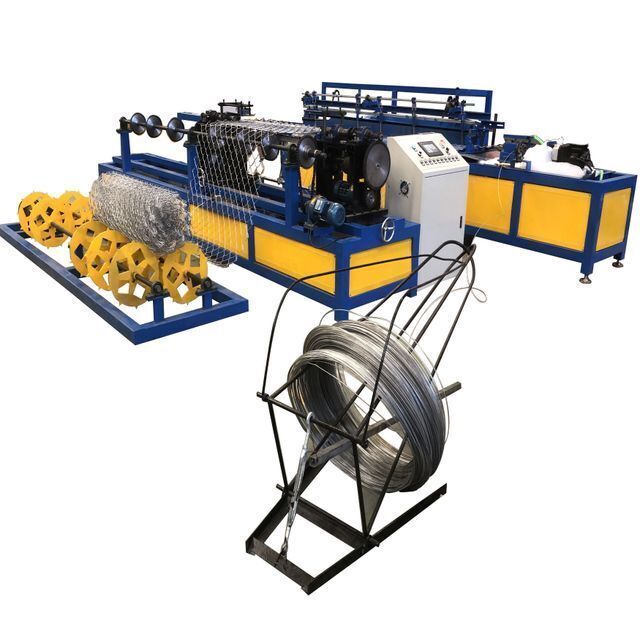

Fully automatic diamond chain link weaving fencing making machine price

Supplier: Anping Baochuan Wire Mesh Products Co., Ltd.
Region: Hebei, China
Contact: Ms Tianhua Zhang
Price: $8599.00 / 1 - 9 sets
$6999.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Weight (KG):	2000;	Warranty:	1 year warranty,1 Year;
Wire diameter:	1.5mm - 5.0mm;	Video outgoing-inspection:	Provided;
Brand Name:	Baochuan;	Rotating speed:	70-120 saure meter per hour;
Core Components:	PLC,Motor;	Production Capacity:	120 square meter per hour;
Model Number:	Baochuan;	After-sales Service Provided:	Free spare parts,Online support,Video technical support;
Weight:	2 tons;	Marketing Type:	New Product 2021;
weight:	2 Tons;	Applicable Industries:	Hotels,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Retail,Construction works ,Energy & Mining;
Condition:	New;	Machine name:	Chain Link Fence Making Machine;
Single gross weight:	2000.0 KG;	Local Service Location:	South Korea,Bangladesh,Viet Nam,India,Mexico;
Key Selling Points:	Automatic;	After Warranty Service:	Video technical support,Spare parts;
Key selling points:	Easy to operate;	Showroom Location:	Viet Nam,India,Mexico;
Packaging Detail:	Wrapped with plastic film. Even for some parts, also add plastic foam for double protection.;	Power (kW):	9.5;
Single package size:	400X200X100 cm;	Machine Type:	Chain Link Fence Making Machine;
Place of Origin:	Hebei China;	Wire Diameter (mm):	1.8 - 4 mm;
Selling Units:	Single item;	Color:	blue and yellow;
Service:	whole-life service;	Machinery Test Report:	Provided;
Type:	fully automatic/semi automatic;	Warranty of core components:	1 Year;

Fully automatic diamond chain link weaving fencing making machine pricek fencing making machine

Single wire chain link fence machine ---a patent machine whose working speed can be 12-140m2/hour

https://www.youtube.com/watch?v=HV3aTT8zz0Y&feature=youtu.be

The video teaching you how to use the machine one step by one step:

1. https://youtu.be/_eA_KobLMPA
2. https://youtu.be/xqfnmbCdLSgBest price PLC Control automatic chain link fencing making machine
3. https://youtu.be/1DeZ2YRWwU8
4. https://youtu.be/QdaSlfHH9WQ
5. https://youtu.be/5rfrLBygTAo
6. https://youtu.be/_Ccu3JVRZNg
7. https://youtu.be/1xxOj0Fim30

single wire chain link Machine working video:

https://youtu.be/VjmRpxU-TN8
https://youtu.be/k7wFSo6x8mo
https://youtu.be/srk20d2X_qk

Double wire chain link machine working video

https://youtu.be/ws8eI7l3dfU

120m2/hour single wire chain link machine
https://youtu.be/bJ9RbkUQnHI

3m Semi-automatic PVC wire single wire chain link machine
https://youtu.be/DLpRFUUnkNA

4m single wire chain link machine
https://youtu.be/DxysJRGfZCQ

3m Fully automatic for hard wire single wire chain link machine
https://www.youtube.com/watch?v=hR3tnntMmV0&feature=youtu.be

Baochuan company the only patent company in China, with a speed of 140 square meters per hour-----new types chain link fence making machine

Chain link mesh size	Common wire chain link machine	Our chain link machine
40*40mm	40-50 m2/hour	110-125 m2/hour
50*50mm	60-80 m2/hour	120-130 m2/hour
60*60mm	90-110 m2/hour	120-140 m2/hour

Machine Detail:

A	Wire Pay-off stand
B	Electric control box
C	Main machine
D	Weaving machine
E	Edge finish parts (It can be both knuckle and twister)
F	Roller opart

This is more details of the motor

Servo motor	3.8 KW or 5.0KW or 4.5KW motor *1 set
Cutting motor	1.1 KW*1 set
Turnover motor	2.2 KW*1 set
Edge finish motor	0.75 KW*2 set
Catch mesh motor	0.75KW*1 set
Roller motor	0.75KW*1 set

Weave mesh Part Width: 2-6 m
Wire diameter: 1.8mm-4.0mm
Mesh Size: 25mm*25mm-100mm*100mm

Electrol control box :

Remote control
Mitsubishi PLC
Schneider electrical elements
This machine implements a human-computer operation Interface;

You can adjust the work condition at the right moment;

It can show the work condition and production in the time exactly;

The PLC is easy to operate and easy to understand;

The PLC screen can show both English and Chinese at the same time;

Tool box---the tool box including:

Our machine can work with both knuckle edge and twister edge

Usually we using Japanise Mitsubishi PLC, but yours we will using Siemens brand as you requiredFor the electrical compenents, we using France Schneider Brand

For servo motors, you can choose from the below type:

You can do Twister end or Knuckle end as you like:

You can choose roller or compact roll:

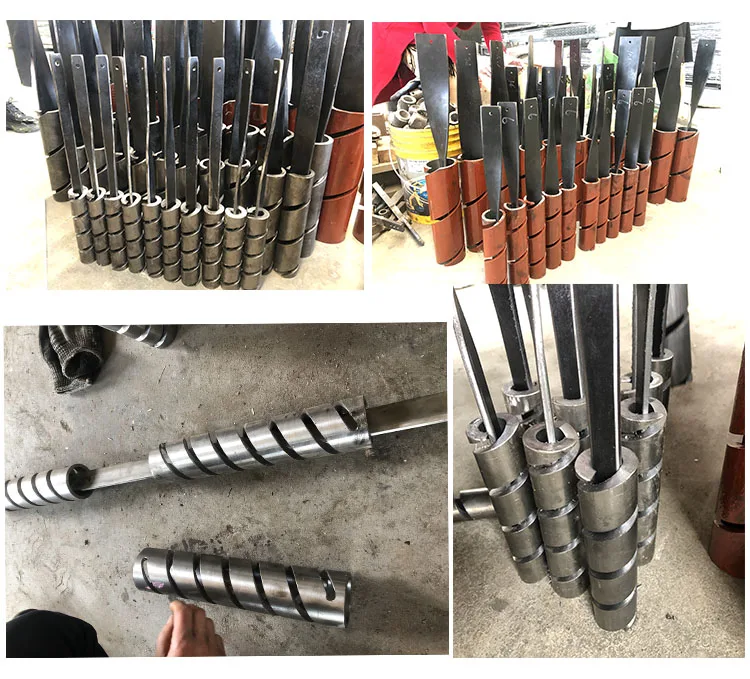

Molds:

Loading container and many many repeat orders:

How to run the machine: We have both video tutorial and word version to show you how to install and run the machine easily. (In fact, before loading the machine we already run the machine in our factory, so after you received the machine, just need to get electricity, design your width and mesh size, then it will run)

Power consumptions: this machine Instantaneous power is not high, around 7-degree electricity per hour.

Using instructions: Give all motors some lubricating oil around one week one time. (The oil container already put in the tool box.)

Machine size: It need to take around 18 feet length and 18 feet width

Machine inspection before loading and test report terms and condition:
Every machine produced by our company has its own name number, we will run the machine before loading, and the QC will issue a report according to machine's running performance. If no problem, the machine will be loaded on time. (If you need the third party to check the machine, we also welcome and we will cooperate with the third party)
The report will be kept by 2 copies, one copy for our company save, the other copy provided to the after-sale services together with customer information.

Service: One-year warranty and whole-life services. (Expect the spare parts and man-made Brocken)

If the machine has a problem, how we solve it:
Our machine has an alarming system, so if the machine is broken, first the alarm light will be shining to inform you that here is broken. Then you can check and find the problem easily.
If you did not find the problem, then you can get the machine wire to the WIFI port, then the touch screen will show you where broken.
Usually above 1 or 2 steps already help you solved your problem. In case not solved, no worry, we have separate independent after-sale services, 7*8 hours you can connect to our engineer (rather than sales) successfully.
(Note: This is a mechanical machine, not easy to have a problem)

Why our machine is used well---we only choose the best quality machine parts for our client

We had exported more to many countries, such as Africa, India, Pakistan, Vietnam, Nepal......

Below is our related products:

This is our client and we loading pictures---we only get our client best quality, we make sure your machine can use more than 10 years

We loading, we will send the machine working video to make sure the machine every detail is right and work well

We will send the loading pictures and video to our client too---let the client see our loading, we only want to give our client the best service

If you want to know more about the machine or want to know the quotation, please check us now!!!

FAQ

Q:1. Are you factory?

A: Yes

Q:2.What product specifications can be determined by customers?
A: Customers can choose the raw materials, the type of surface treatment and assembly, as well as packaging.

Q:3.How long do orders take to produced and delivered?
A: Usually one machine need 10 working days to finish. One container machine (4 sets fully automatic machine) also 12 working days.

Q:4.Can I still get an estimate without a diagram?
Yes, we can make a sketch based on your description. Enter the dimensions you have in mind by email and we will let you know if there are any remaining
