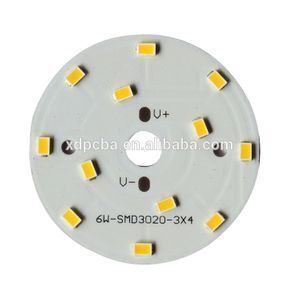

FR4 1.6mm aluminum led light circuit board

Click here to contact

Product details

Packaging Detail:	FR4 1.6mm thickness pcb for led clock/light/driver circuit board 1. at buyer's request; 2. inner, vaccum package; 3. outer, standard export carton;	Base Material:	FR-4;
Different Impendance:	+-/10%;	Hole Positon:	+/-0.075mm(3mil) CNC Driling;
ance Control:	+/-10%;	Conductivity:	<50ohm;
Brand Name:	XingDa;	Min. Line Spacing:	0.1mm(4mil);
Supply Ability:	50000 Square Meter/Square Meters per Month telephone circuit boards;	Hole Diameter(H) PTHL:	+/-0.075mm(3mil) Non-PTH L:+/-0.05mm(2mil);
Warp & Twist:	0.7%;	Outline Tolerance:	+/-0.125mm(5mil) CNC Routing +/-0.15mm(6mil) by Punching;
Test Voltage:	10-300V;	Min. Line Width:	0.075mm(3mil);
Place of Origin:	China;	Min. Hole Diameter:	0.1mm(4mil);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Board Thickness:	0.2mm-6mm(8mil-126mil);
Model Number:	XD12122102;	Conductor Width(W):	+/-20% of original artwork PTH L:+/-0.075mm(3mil);
Copper Thickness:	1/2 oz min; 12 oz max;	Insulation Resistance:	10Kohm-20Mohm;
Port:	shenzhen port;	Surface Finishing:	HASL / HASL lead free;

Welcome to XingDa Electric Technology Co.,Ltd

Xindaxing Electric Technology Co.,LTd

Our Services

We can provide one-stop service:

1. PCB circuit boards.

2. E-test.

3.Electronic components purchasing.

4. PCB assembly: available on SMT, BGA, DIP.

5. PCBA function test.

6. Enclosure assembly.

PCB product Capacity

PCB Manufacture Capacity
Item	Specification
Material	FR-4, FR2; CEM-1, CEM-3,Rogers, Arlon,Aluminum Base, Copper Base,Ceramic, Crockery, etc.
Remarks	High Tg CCL is Available (Tg>=170℃)
Finish Board Thickness	0.2 mm-6.00mm(8mil-126mil)
Surface Finish	Gold finger(>=0.13um), Immersion Gold(0.025-0075um), Plating Gold(0.025-3.0um), HASL(5-20um), OSP(0.2-0.5um)
Shape	Routing,Punch,V-cut,Chamfer
Surface Treatment	Solder Mask(black, green, white, red, blue, thickness>=12um, Block, BGA)
	Silkscreen(black, yellow, white)
	Peel able-mask(red, blue, thickness>=300um)
Minimum Core	0.075mm(3mil)
Copper Thickness	1/2 oz min; 12oz max
Min Trace Width & Line Spacing	0.075mm/0.075mm (3mil/3mil)
Min Hole Diameter for CNC Drilling	0.1mm(4mil)
Min Hole Diameter for Punching	0.6mm(35mil)
Biggest panel size	610mm * 508mm
Hole Position	+/-0.075mm(3mil) CNC Drilling
Conductor Width(W)	+/-0.05mm(2mil) or +/-20% of original
Hole Diameter(H)	PTHL:+/-0.075mm(3mil)
Hole Diameter(H)	Non PTHL:+/-0.05mm(2mil)
Outline Tolerance	+/-0.1mm(4mil) CNC Routing
Warp & Twist	0.70%
Insulation Resistance	10Kohm-20Mohm
Conductivity	<50ohm
Test Voltage	10-300V
Panel Size	110 x 100mm(min)
Panel Size	660 x 600mm(max)
Layer-layer misregistration	4 layers:0.15mm(6mil)max
Layer-layer misregistration	6 layers:0.25mm(10mil)max
Min spacing between hole edge to circuitry pattern of an inner layer	0.25mm(10mil)
Min spacing between board outline to circuitry pattern of an inner layer	0.25mm(10mil)
Board thickness tolerance	4 layers:+/-0.13mm(5mil)

PCB Assembly(SMT) Product Capacity

SMT Capacity
SMT Item	Capacity
PCB Max. size	510mm*1200mm(SMT)
Chip component	0201, 0402, 0603, 0805, 1206 package
Min.pin space of IC	0.1mm
Min. space of BGA	0.1mm
Max.precision of IC assembly	±0.01mm
Assembly capacity	≥8 million piots/day
DIP capacity	6 DIP production lines
Assembly testing	Bridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT(Functional Circuit Test)
FCT(Functional Circuit Test)	Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement.
