W11F-2X500 Roll Forming Machine with low price

Supplier: Dalian Dahui Machine Tool Co., Ltd.
Region: Liaoning, China
Contact: Mr Hui Liu
Price: $2954.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO 9001:2000;	Max. bending thickness:	2mm;
Diameter of lower roller:	90mm;	Packaging Detail:	Suitable for long distance shipping;
Min. Bending diameter(full load):	T2B500 min120mm;	Lifting transmission:	Alloy worm gear and alloy nut;
Power:	CNC;	Machine Type:	Roll Forming Machine;
Supply Ability:	40 Set/Sets per Month;	Diameter of upper roller:	90mm;
Frequency and voltage:	380V, 50Hz, 3phase;	Main motor:	2.2kw;
Place of Origin:	Liaoning China;	Condition:	New;
Brand Name:	DMTC;	Port:	Dalian Port,Liaoning,China,;
Automation:	Manual;	Steel plate yield limit:	245Mpa;
Payment Terms:	T/T,Western Union,MoneyGram;	Bending width:	500mm;
Material / Metal Processed:	Stainless Steel;	Operation speed:	8m/min;
Warranty:	1 year;	After-sales Service Provided:	Free spare parts;

Product Description

Product introduction

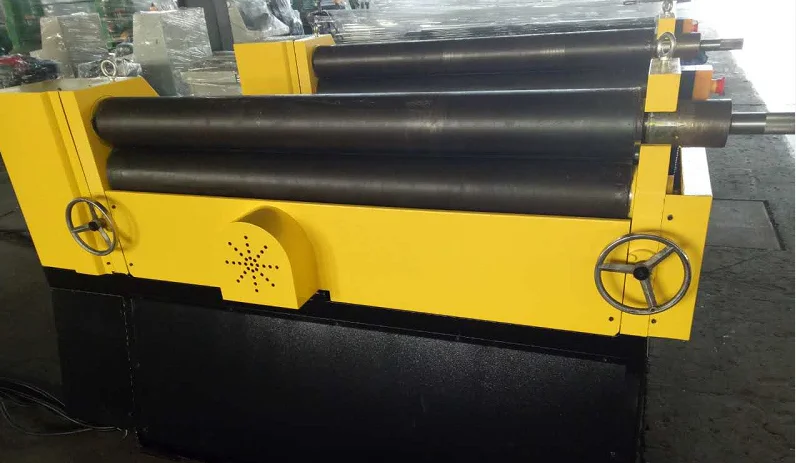

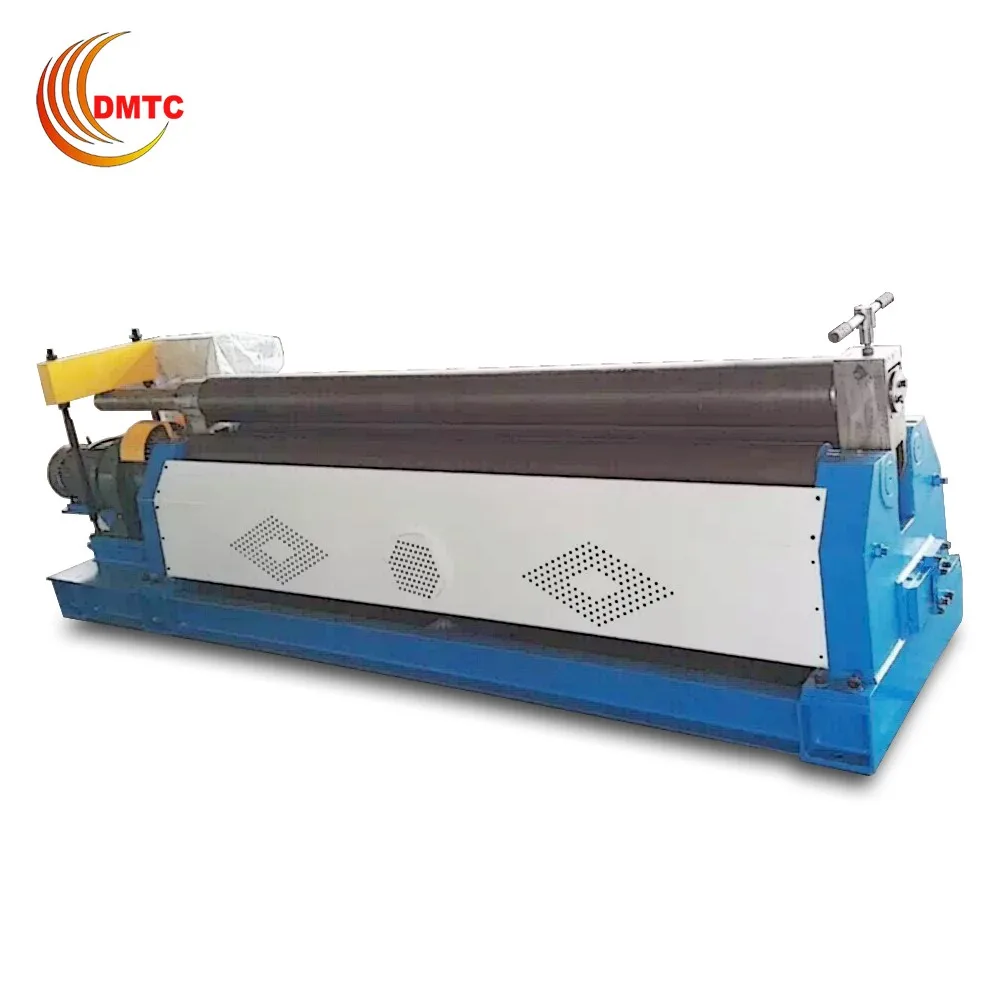

The machine is composed by two main parts, there are working parts and transmission parts. Working parts include two lower roller and one upper roller with roller bearings. The lower roller is the capstan, the upper roller is driven roller. Height of upper roller can be adjusted freely. Besides, the transmission part contain main motor, reduction box, etc.

The main motor drive the main reduction box, and then the main reduction box drive the lower roller. Direction of rotation of the lower roller can be controlled by the main motor.

Subsidiary motor drive the subsidiary reduction box, then the upper roller could perform vertical movement.

Unloading equipment can help operator take out finished products.

PARAMETERS	W11F-2X500
Max. bending thickness	2mm
Bending width	500mm
Steel plate yield limit	245Mpa
Min. Bending diameter(full load)	T2×B500×Φmin120mm
Diameter of upper roller	Φ90mm
Diameter of lower roller	Φ90mm
Operation speed	8m/min
Main motor	2.2kw
Lifting transmission	Alloy worm gear and alloy nut
Frequency and voltage	380V, 50Hz, 3phase

Raw material of roller and processing technical

Raw material: 45# forging steel

Manufacturer: Hengrong form Wuxi(famous brand in China)

Datum: certificate of raw material and other inspection report attached with machine.

Processing technic: caststeel ingot → forged blank → normalization after forging → rough turning → heat treatment(hardening and tempering) → finish turning → hard facing.

Requirement of heat treatment: hard facing depth≥3mm, hardness≥HRC45-50.

WELDED STRUCTURE(INCLUDING THE FRAME, FOUNDATION AND OTHER STEEL STRUCTURE)

Processing technical of welded structure:

Purchasing inspection → steel plate pretreatment → cutting → edge preparation → welding → weld joint inspection → annealing treatment → rough machining → Vibratory stress relief → fine machining → surface derusting and corrosion prevention → top coating(as required by customers).

Technical requirements: we promise all welding structure must be Q235A, all specification can meet GB.

Perfect welding without pore, crack, etc.

Stress relief before machining.
