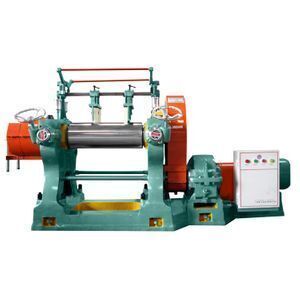

Dongguan Silicone Rubber Two Roll Mixing Mill Machine XK-300 12 inch for rubber compounding sheeting price

Product details
Power (kW):22;Supply Ability:10 Set/Sets per Month;
Roll Ratio(Front/Back):1:1.21;Gap adjustment:Manual;
Packaging Detail:film wraping, wooden box;Application:Rubber Mixing Compounding;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory;Payment Terms:L/C,T/T;
After-sales Service Provided:Video technical support,Field installation, commissioning and training,Online support;Roller Diameter:300mm;
Driving Motor Power:22KW;Brand Name:Sainsar;
After Warranty Service:Video technical support,Online support,Field maintenance and repair service;Function:Compound Mixing;
Port:Shenzhen, Guangzhou;Place of Origin:China;
Rotation Speed of Front Roll(rpm):17 - 22;Showroom Location:Russia,Thailand;
Dimension(L*W*H):3200*1350 *1500mm;Mixed capacity:25~50kg;
Local Service Location:Malaysia,Russia,Thailand;Diameter of Roll(mm):300 mm;
Length of Roll(mm):700 mm;Year:2020;
Cooling Mode:water cooling;Condition:New;
Key Selling Points:Long Service Life;Voltage:A.C.380V 50HZ;
Roller Length:700mm;Warranty:1 year;
Roller:Chilled Alloy Cast Iron;Certification:EAC;
Working Linear Speed of Front Roll:19.3M/Min;Name:Rubber Mixing Mill;
Weight (KG):4000 KG;

Dongguan Silicone Rubber Two Roll Mixing Mill Machine XK-300 12 inch for rubber compounding sheeting price



we supply silicone rubber machines with complete solutions including mixing mill, dispersion kneader, cutting machine, compression molding machine, injection molding machine, extrusion line, molds and raw material formulas.





Application: it is mainly used for various silicone rubber mixing, sheeting.

Capacity: 20-25KG/batch

Main specification:

Roller Diameter & Length:  300mm*700mm

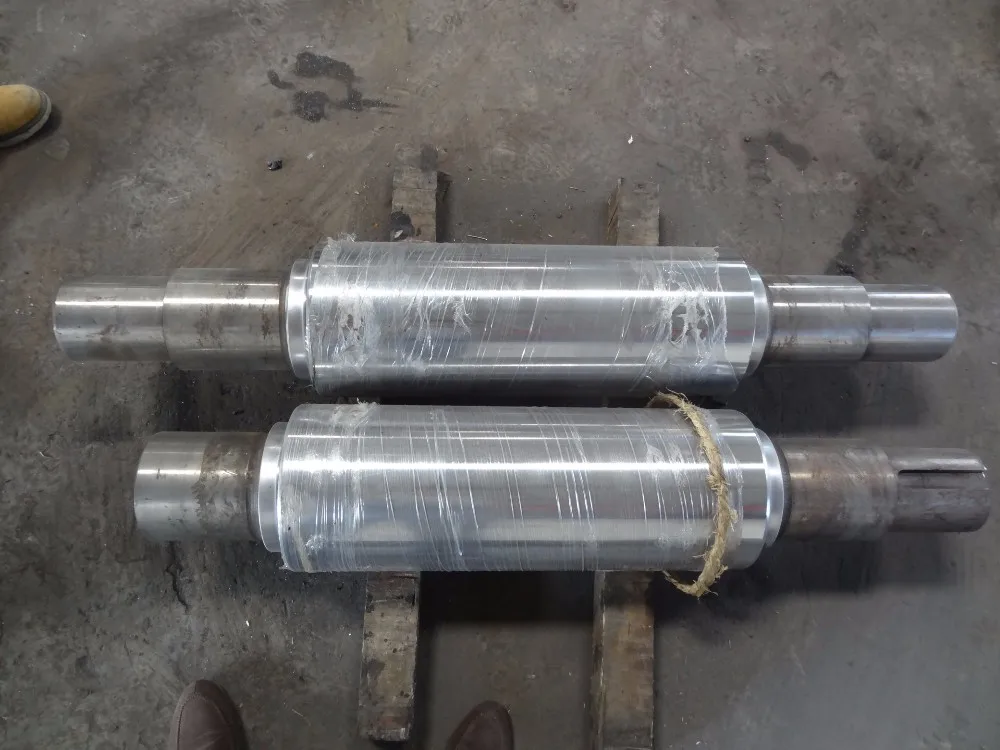

Roller material:                     Alloy chilled cast iron, work surface depth of chilled10-24mm, with surface chrome plated.

Front roll linear speed:        12r/min

Maximum roller gap:           1-5 mm

Roller speed ratio:                1:1.2

Main motor power:              22KW

Power supply:                        A.C. 380V, 3 phase, 50HZ

Motor speed:                          980RPM

Roller regulating mode:        manual adjusting

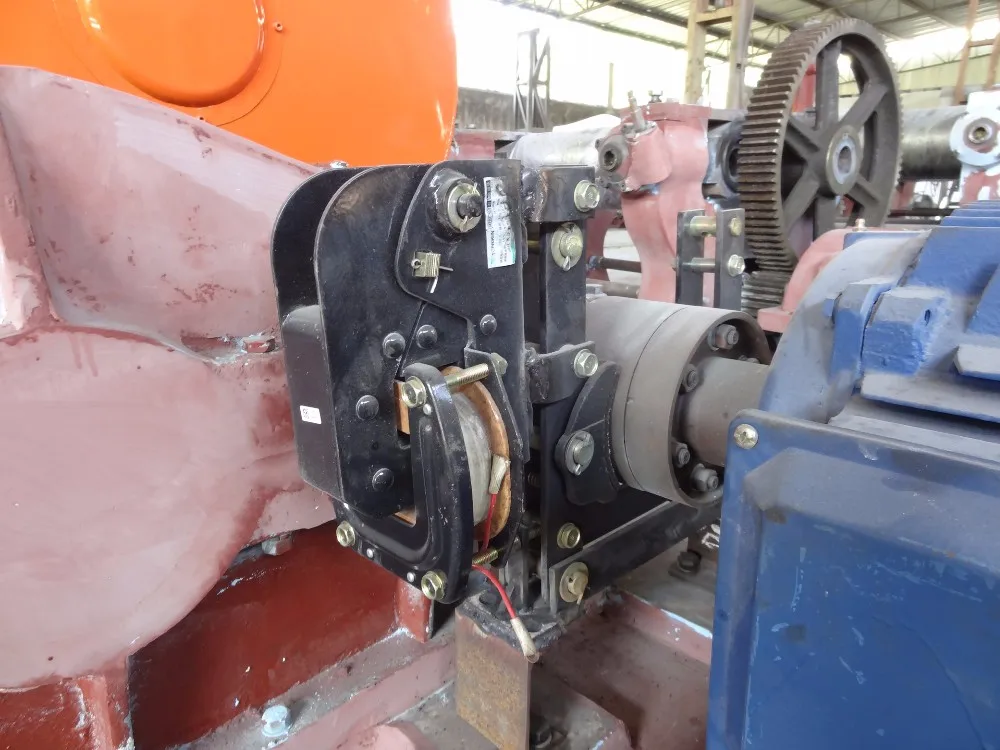

Safety device:                     equipped with emergency stop switch, mushroom button 2 pieces

Dimension:                      3200*1350 *1500mm

Weight:                          approximately 4,000KG
