precision slide Motorized linear guide rail actuator linear guide systems 30 hiwin linear guide rail

Supplier: Shandong Hightop Group
Region: Shandong, China
Contact: Ms Kerry Chen
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	JS;	Port:	Qingdao/Ningbo/Shanghai;
Model Number:	LG;	Supply Ability:	10000 Piece/Pieces per Month;
Payment Terms:	T/T,Western Union;	Guide Width or Diameter:	4.5;
Place of Origin:	Shandong China;	Guide Length:	3000;

Introduction of precision slide Motorized linear guide rail actuator linear guide systems 30 hiwin linear guide rail

Linear Guides are a block and rail system that helps support the motion of an application.

How linear Guides Work

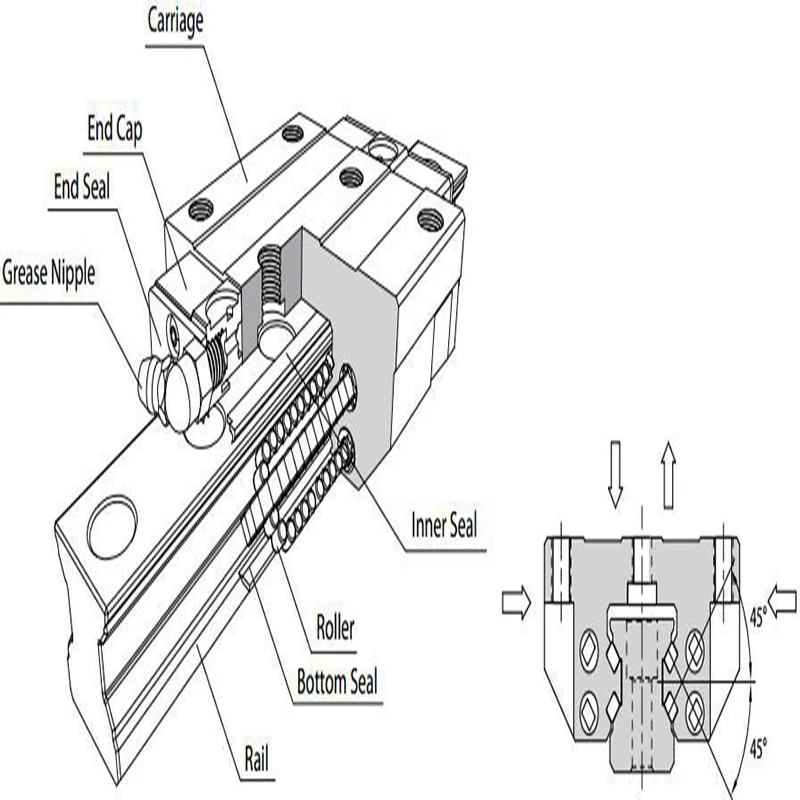

There are two parts to the Linear Guide System: the Linear Block and the Linear Rail. The linear block moves along the linear rail along the plane the rail is positioned for. The block moves forward and backward along the straight linear rail. Linear blocks connect to the moving components by mounting to the block to support the motion for the specified component. The motion is created along the rail through recirculating ball bearings within the block that is contacted on the rail.

Basic Types of Linear Guides

Two basic types of linear guides are predominantly used in industry today. These types are: sliding contact linear motion bearing and rolling element linear motion bearing guides. The main distinction between the two is how the motion of the linear block occurs along the linear rail.

Applications that Use Linear Guides

Linear guides are used to move a machine table in either the X or Y direction. Applications which require high precision use linear guides due to their high accuracy and precision capabilities

In the application to the left, each table uses linear guides for positioning. Machine tool applications use linear guides because of their ability to manage temperature rise and high speed changes.

Linear guides are used to transport heavy product with ease.

In this application, the linear guides were used to help create the motion of a robot pick-and-place machine.

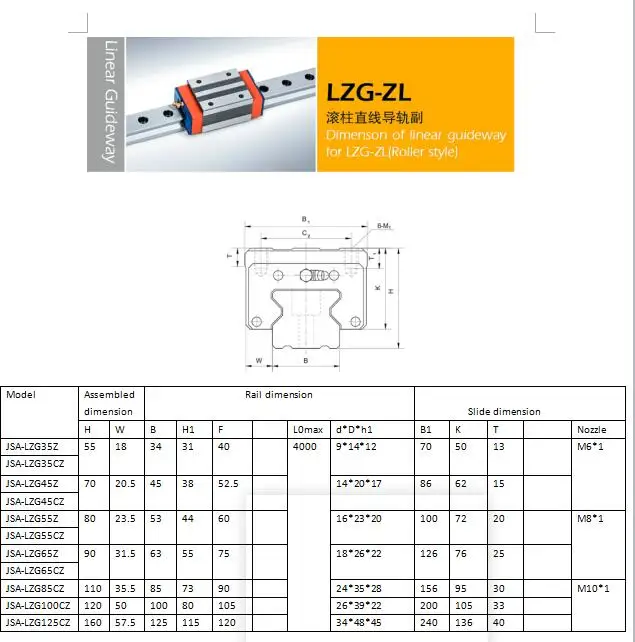

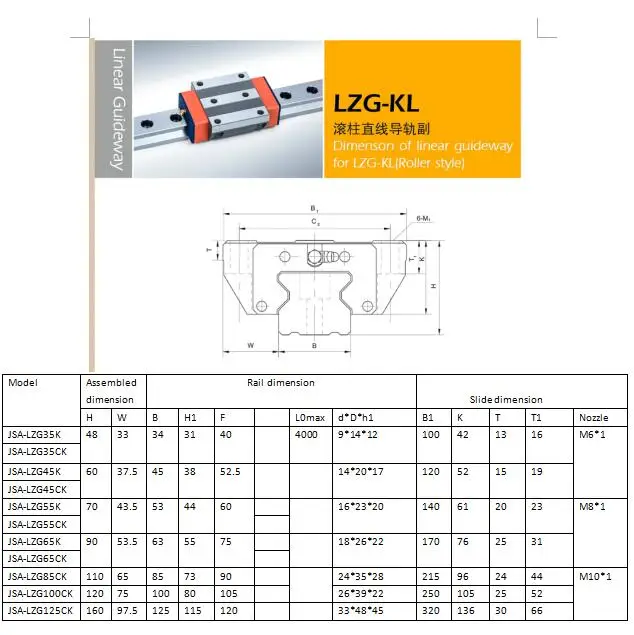

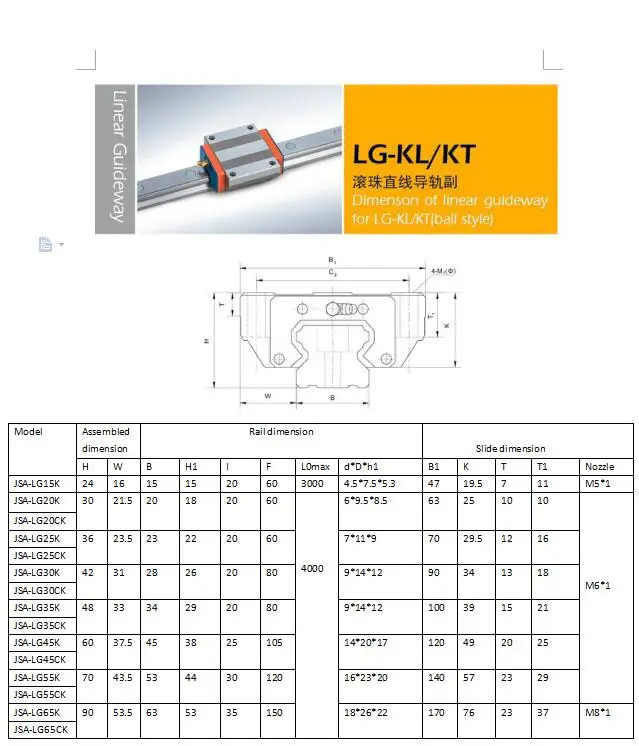

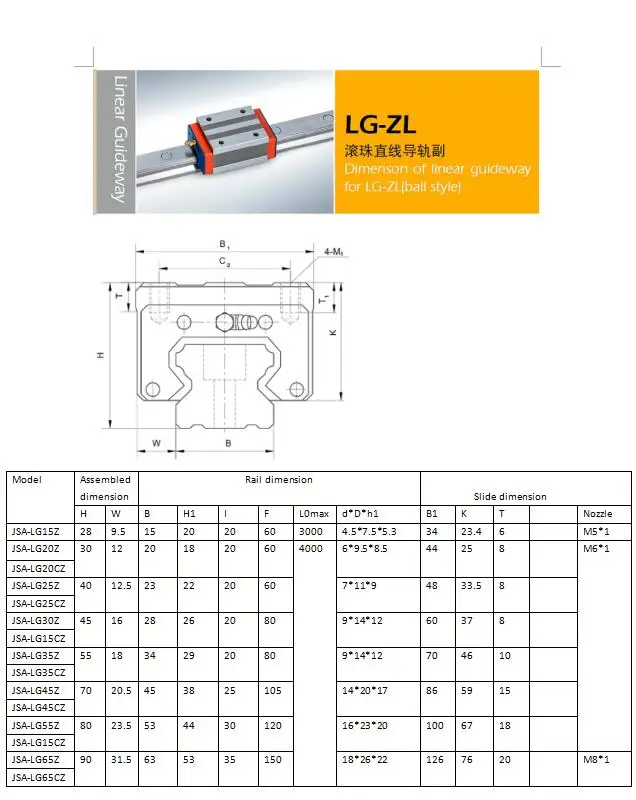

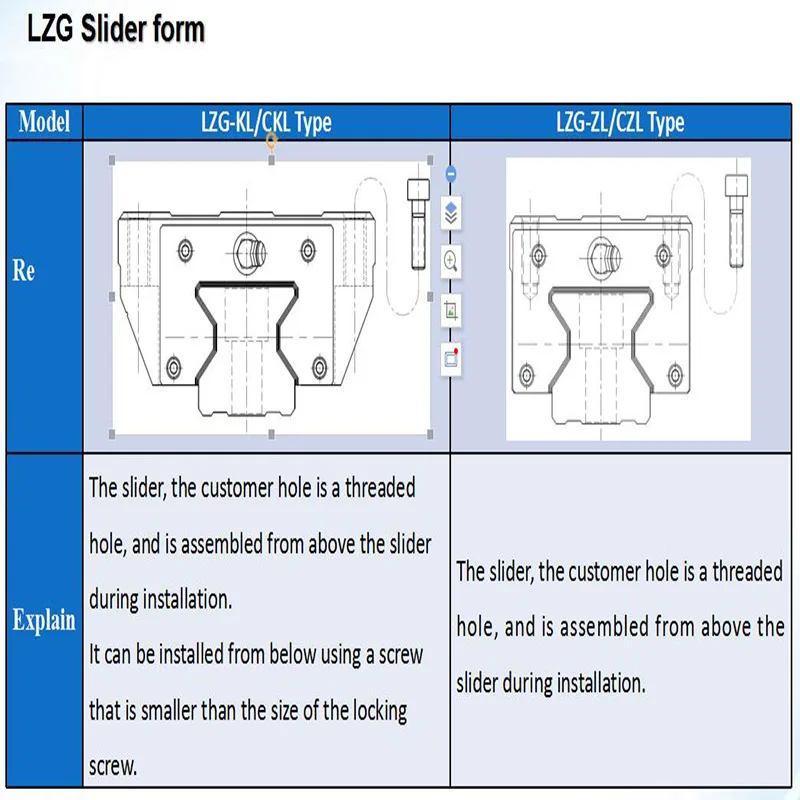

Parameter of precision slide Motorized linear guide rail actuator linear guide systems 30 hiwin linear guide rail

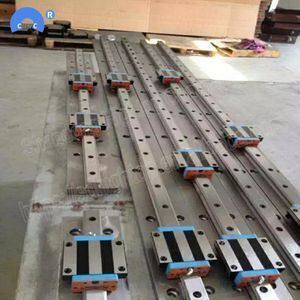

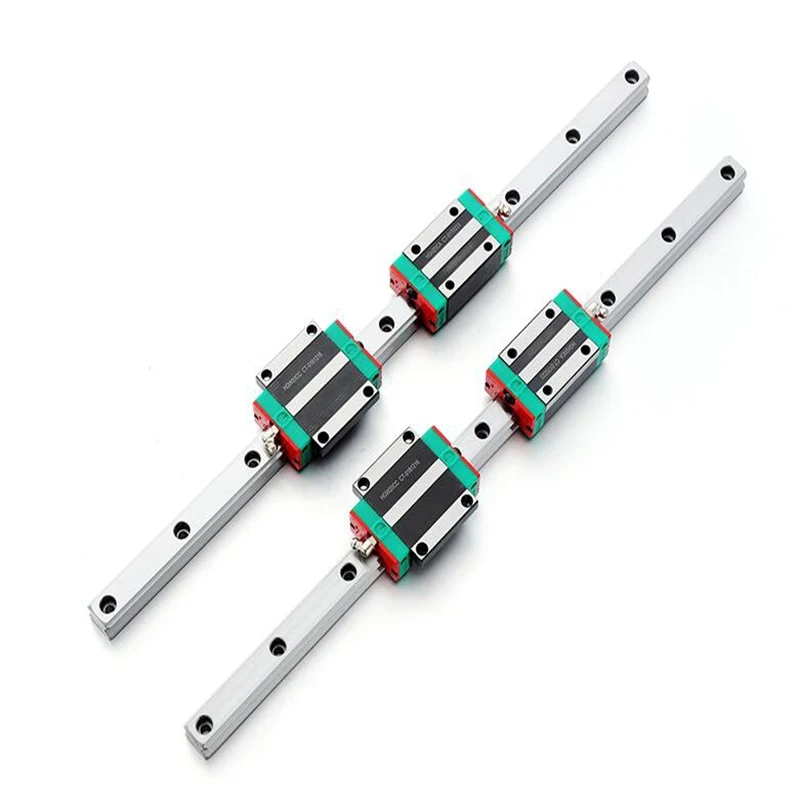

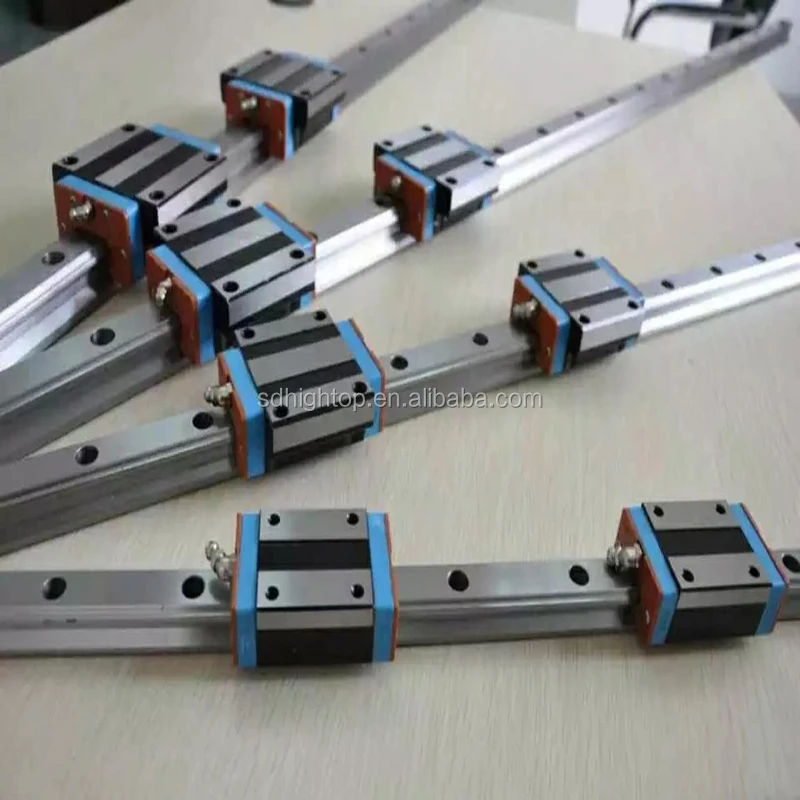

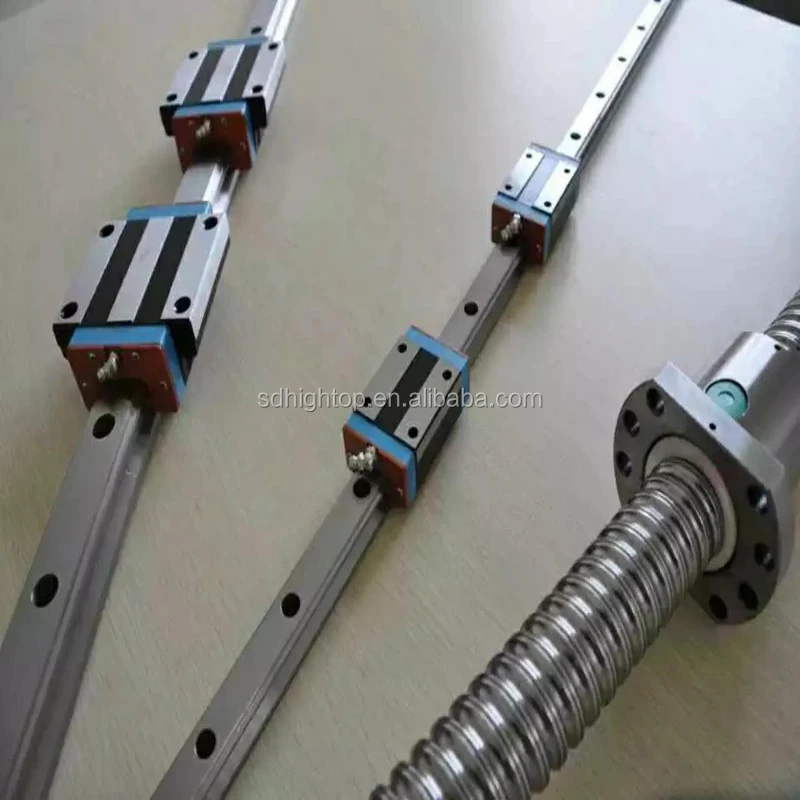

Images of Sliding rail system linear motion guide Linear Linear Block for cnc

If you order from our factory ,for five stars level after sales service :

1:24 hours on line service ,support Chinese, English, Spanish, French, German, Russian ,technical guidance.

When meets machine failure problem,our factory will ensure that the problem is solved within 1 hour

2:Povide machine install video .

3:Provide logistics information ,like shipping by sea , shipping by express DHL,FEDEX delivery, real-time tracking service.

4:If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided .

About Us

China Machinery Co. ,Ltd (CNMC), established in 1980, is an important and a large construction engineering equipment joint-stock enterprise Group of Shandong province, It has several wholly-owned subsidiaries, company headquarters is located at Jining Shandong province.

We have CE Certificate,SGS Product Certificate, ISO9000 Quality Control Certificate and BV Supplier Certificate, Our machine had win much good reputation through its quality and nice performance. Nowadays Our products have been exported to 127 countries and regions over the world.
