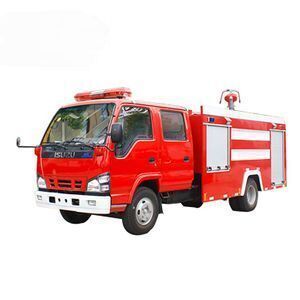

Japan brand Luxury water jet fire engine fighting pump truck

Supplier: Hubei Xindongri Special Vehicle Co., Ltd.
Region: Hubei, China
Contact: Mr Eric Shen
Price: $24800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Payment Terms:	T/T;	Transmission Type:	Manual;
Drive type:	4*2;	Horsepower:	150 - 250hp;
Type:	Rescue;	Emission Standard:	EURO 5;
Tire:	7.00-16;	Brand Name:	XDR;
Tank Capacity:	3001 - 5000L;	Tank Volume:	3ton;
Condition:	New;	Place of Origin:	Hubei China;
Speed:	95;	Chassis brand:	ISUZU;
Drive Wheel:	4x2;	Cab:	2+3;
Fuel Type:	Diesel;	Wheelbase:	3360mm;
Product Name:	Japan brand fire fighting truck;	Tank material:	Carbon Steel. Stainless Steel;
Port:	Shanghai,China port;	Engine:	88kw;

Product Description

Fire truck is also called as the fire fighting truck and fire engine. It is used to fight fire or for other emergency rescuing specially. For functions, it is divided into several kinds, including Pump truck, Ladder truck, and other trucks with some special equipment. The fire truck is usually kept in fire bureau, and is driven to the accident location by the fire fighter. Most fire trucks are painted in red, but still some rare places that is painted in yellow. The siren is usually taken as the standard device for the truck. In fact, fire truck is the common name for the truck that is equipped with various fire fighting devices and tools. It is the main equipment in fire fighting area and is the basic mobile fire fighting equipments.

Name	Japan truck mounted Fire Engine Truck
Item	Specifications	Item	Specifications
Truck Parameter
Model	YZR5072GXFSG20/Q	Chassis Model	QL1070A5HWY
Gross Weight (kg)	6530	Overall dimensions (mm)	6360×2000×2740
Payload Weight (kg)	1980	Tank Volume(mm)	water 2.5ton
Curb Weight (kg)	4170	Wheelbase (mm)	3360
Engine Parameter
Model	4KH1CN5HS diesel	Brand	Japan brand
Power/Displacement (kw/ml)	88/2999	Emission Level	Euro 5
Specification
Max speed (km/h)	95	Front Track (mm)	1504
Cab	2+3	Rear Track (mm)	1425
Leaf Spring	8/6+5	Front/Rear Overhang (mm)	1015/1890
Number of Tyres	6	Approach / DepartureAngle(°)	24/12
Tyre Specification	7.00-16 14PR	Axle Load (kg)	2080/4620
Number of axles	2
Special Function
Tank Capacity (L)	water 2500L
Fire Monitor	Model:PS20 rate of flow:20L/S/1MPa,water range:≥50m
Fire Pump(Normal Pressure)	1. Normal pressure model::CB10/20,rate of flow:20L/s, pressure:1.0MPa
	2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO
