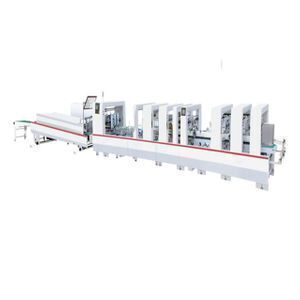

Automatic Folder Gluer Machine for Boxes and Cartons

Click here to contact

Product details

Local Service Location:	Viet Nam,Saudi Arabia,Indonesia,Mexico,UAE;	Place of Origin:	China;
Supply Ability:	10 Unit/Units per Month;	Driven Type:	Electric;
Brand Name:	CHAMPION;	Packaging Detail:	PALLET;
Showroom Location:	Viet Nam,Saudi Arabia,Indonesia,Mexico,UAE;	Packaging Material:	Paper;
Automatic Grade:	Automatic;	Port:	SHANGHAI;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Applicable Industries:	Printing Shops;
Key Selling Points:	Easy to Operate;	Warranty:	1 year;
Voltage:	380;	Payment Terms:	L/C,T/T;
Application:	Food,Beverage,Commodity,Medical,Apparel;	Type:	Gluing Machine;
Packaging Type:	Cartons,Case;	Condition:	New;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Certification:	CE;

Product Description

Dear sir:

Pls find our specification and payment term as below :

Payment	TT / LC
Delivery	60-120 days

if there is any question , please feel free to contact us.

Side plates & feed gate with pneumatic hoisting device for easy operation.
Sheet holding sticks with vibration system for smooth and consistent feeding.
Independent A/C motor with variable speed adjustment for even distance of sheets.

Tow-carrier-belt structure, Pre-folding device for left 180º and right 135º, effectively perform the 1st & 3rd folding line of the products, make auto filling easier.
Segmented upper-carrier-belt with special design, no need for belt tension adjustment, make adjustments flexibly and effectively.
Special design for upper-carrier-belt to prevent damage on elastic press foot while sheets blocking up caused by improper operation.

Three-carrier-belt structure and segmented upper-carrier-belt, same function with pre-folding section, suitable for different boxes production.
Easy install with bottom lock accessories, more friendly for operation.
Modular design for bottom lock accessories, easier for adjustment.
Equip with two mechanical upper gluing device (left and right), Special design avoids glue splashing at high speed production and easy removal for cleaning and maintenance.

Equip with two mechanical lower gluing device (left and right), Special design avoids glue splashing at high speed production and easy removal for cleaning and maintenance.
Special telescopically design for outer-fold-belt, adjustable position for different products, no need for belt tension adjustment with less adjustment time.
Special blocking belt structure of folding belt, reduces wear, increases belt life.
Special pressing wheel structure of folding belt, easier for adjustment.

Lengthened conveyor structure for more firmly glued on products.
Extra sponge belt for giving better pressing at indentation area of box stacks.
Pneumatically pressure conveyor, easy adjustment and give better glued effect.
Synchronization with main machine under auto mode, to increase stability of box stacks.

Sheet type	200-450g cardboard & F,E flute board

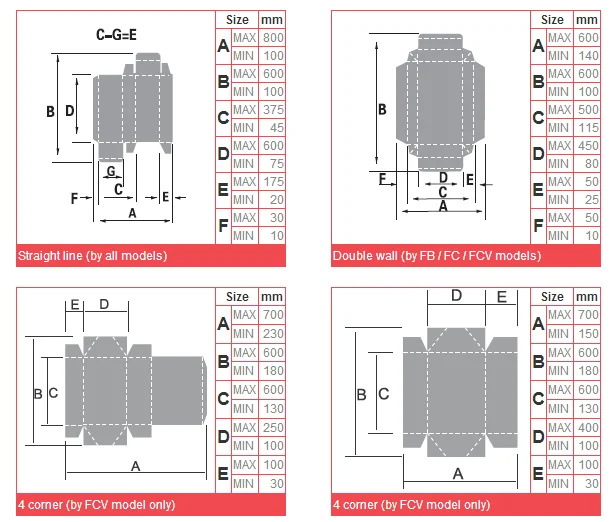

Box type	Straight line / Double wall / Crash-lock bottom
Max. speed	Max. 300m / min
Glue type	water base glue
Max. sheet width	800mm
Power required	13.5Kw / AC380V / 50HZ
Machine weight	6000Kg
