Aluminum embossing machine with uncoiler and coiler
-
Supplier: Nantong Zhenhuan Trade Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Franks Cao -
Price: $15000.00 /set -
Min. Order: 1 set
| Power: | 7.5kW; | Place of Origin: | China; |
| Supply Ability: | 100 Set/Sets per Year; | Machine size: | 2600 x 900 x 1300mm; |
| Weight: | 2000kg; | Packaging Detail: | Aluminum embossing machine will be shipped by wooden case.; |
| Brand Name: | Zhenhuan; | Dimension(L*W*H): | 2600 x 900 x 1300mm; |
| Payment Terms: | L/C,T/T; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Driven Type: | Electric; | Roller mateirals: | 42CrMo; |
| Automatic Grade: | Automatic; | Certification: | none; |
| Suitable materials: | aluminum coils; | Roller size: | 320 x 700mm; |
| Application: | Machinery & Hardware; | Packaging Type: | Foil; |
| Embossing type: | Male-Female; | Pattern: | Custom made; |
| Condition: | New; | Type: | Embossing Machine; |
| Voltage: | 380V; | Packaging Material: | Metal; |
| Machine code: | ZH-S700; | Motor power: | 7.5kW; |
| Port: | Shanghai; | Pressure control: | Screw rod pressure; |
| Roller hardness: | HRC53-55; |

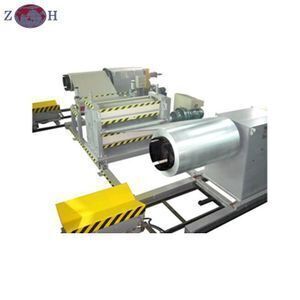

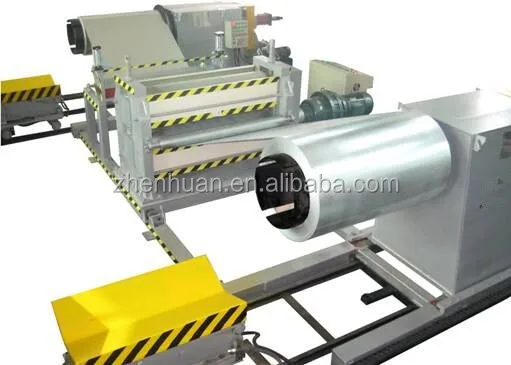

Aluminum Embossing Machine with Uncoiler & Coiler
I Main technical data

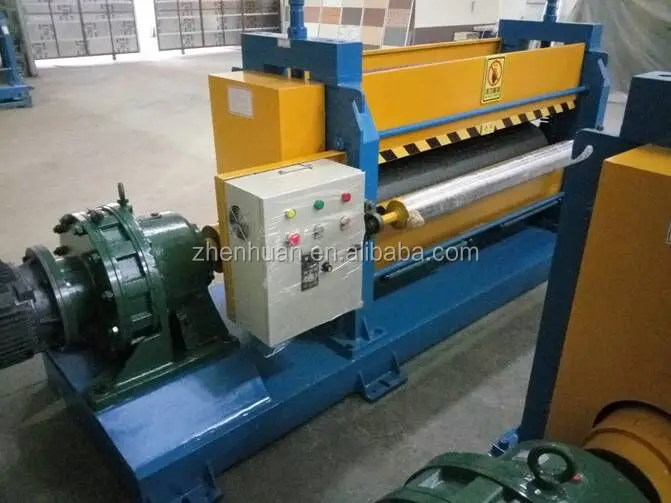

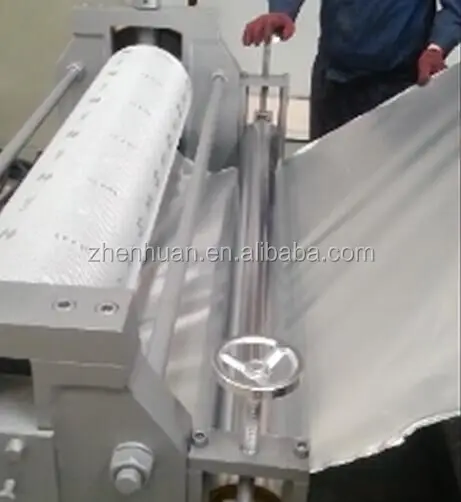

Embossing machine
Item | Data |
Machine code | ZH-S700 |
Roller size | Φ320 x 700mm |
Pattern | Custom made |
Suitable material | 0.8 x 600mm aluminum coils |
Material of roller | Alloy steel solid forging, 42CrMo |
Hardness of roller | HRC53-55 |
Embossing type | Male-Female type |
Pressure control | Screw rod pressure |
Working speed | 0-18m/min |
Motor power | 7.5kW, 380V, 50Hz. |
Machine size | 2600 x 900 x 1300mm |

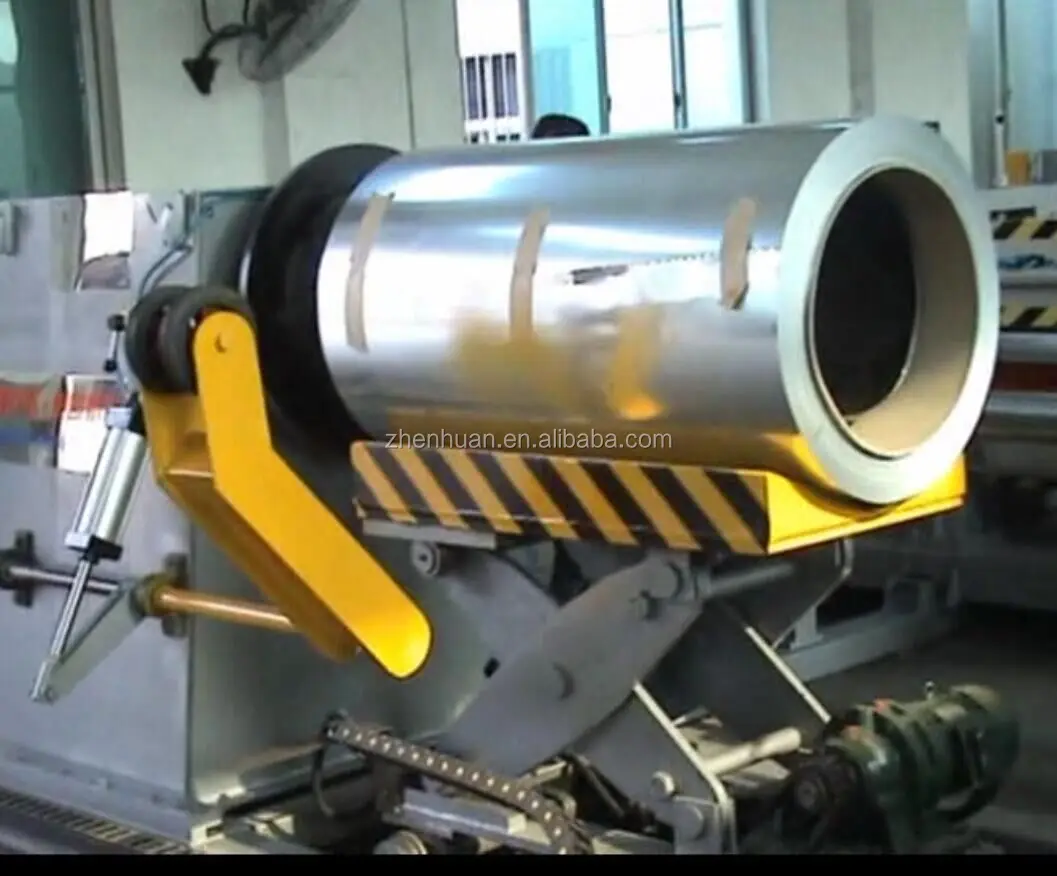

Uncoiler
Item | Data |
The I.D of coils | Φ405-505×700mm |
Coils loading | Bridge crane |
The max. weight of spool | 500kg |
Brake | Magnetic powder brake control |
Control type | Oil cylinder |
Machine dimension | 3300 x 1200 x 1500mm |
Coiler
Item | Data |
The I.D of spool | Φ405-505×700mm |
Transportation method | Bridge crane |
The max. weight of coils | 500kg |
Brake | Magnetic powder brake control |
Power | 11kW |
Machine dimension | 3500 x 1200 x 1500mm |
