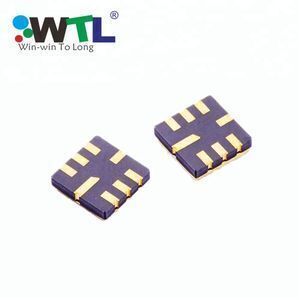

RoHS Compliant 5.0*5.0mm 5050 Saw Resonator 433.92MHz for Wireless Remote

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.19 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

OEM/ODM:	Welcome;	Payment:	T/T, Western Union, PayPal,Credit Card;
Supply Ability:	1000000 Piece/Pieces per Month Saw Resonator;	Warranty:	Global 180 Days Return;
Certificate:	ISO9001,ISO14000,SGS,RoHS;	Packaging Detail:	Tape and Reel(RoHS Compliant 5.0*5.0mm 5050 Saw Resonator 433.92MHz for Wireless Remote);
Brand Name:	WTL;	Operation Temperature Range:	-20℃ to +85℃;
Port:	Shenzhen;	Samples:	Accept;
Insertion Loss:	1.5dB;	Package:	5.0*5.0mm;
Place of Origin:	Guangdong China;	Model Number:	WTL2.02459ZX;
Frequency:	433.92MHz;	Payment Terms:	L/C,T/T,Western Union,credit card, paypal;
About Us:	19 Years Experience;

RoHS Compliant 5.0*5.0mm 5050 Saw Resonator 433.92MHz for Wireless Remote

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

RoHS Compliant 5.0*5.0mm 5050 Saw Resonator 433.92MHz for Wireless Remote

Electrical Specification

DC Voltage VDC	10V
AC Voltage Vpp	10V 50Hz/60Hz
Operation temperature	-20℃ to +85℃
Storage temperature	-45℃ to +85℃
Source Power	0dBm

Item			Unites	Minimum	Typical	Maximum
Center Frequency			MHz	433.845	433.920	433.995
Insertion Loss			dB		1.5	2.5
Quality Factor		Unload Q			12800
Quality Factor		50Ω Loaded Q			2000
Temperature Stability	Turnover Temperature		℃	10	25	40
Temperature Stability	Freq.temp.Coefficient		ppm/℃		0.032
Frequency Aging			ppm/yr		<±10
DC. Insulation Resistance			MΩ	1.0
RF Equivalent RLC Model	Motional Resistance R1		Ω		18	30
	Motional Inductance L1		μH		86
	Motional Capacitance C1		fF		1.5
Transducer Static Capacitance C0			pF		1.9

Packaging & Shipping

Our Services

1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ

1.What is the general lead-time of the products?

Product	Lead Time
HC49 Series	1-2 weeks
SMD Crystal	1-4 weeks
DIP Oscillator	1-2 weeks
SMD Oscillator	1-3 weeks
TCXO	2-8 weeks
Watch Crystal	1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.

3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.

4.What is the WTL main material?

Type	Vendor
Crystal Bar	South Urals,Russia- Crystal Factory, TF
Base	SMI/NTK/KYOCERA(JP)
IC	NPC- Japan
Top Cover	Hua Nu Dike/Yoshikawa Corporation (JP)
Conductive Glue	Three Bond – (JP)
