Rubber Vulcanizer Supplier

Product details
Type:Vulcanizer;Capacity:10 T;
Year:custom;After-sales Service Provided:Field maintenance and repair service;
cooling temerature scope:room temperature~+5℃;Place of Origin:Guangdong China;
Supply Ability:80 Set/Sets per Month rubber vulcanizer;Port:shenzhen;
distance of pressure plate:100mm;Dimension(L*W*H):1000*500*1500mm;
Tire Machine Type:Other Tire Machine;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,rubber vulcanizer suitable any paytment way;
cold pressure plate:300*300mm;Brand Name:ZL;
Dimension:100*500*1500mm (W*D*H);Packaging Detail:rubber vulcanizer is packed in a polybag, then packed as export safety wooden case;
Power(W):10.6HP;model:rubber vulcanizer;
Weight:658kg;Voltage:380V;
Condition:New;Certification:CE ISO;
temperature range:temperature range~300℃;oil cylinder stroke:max 200mm;
oil cylinder speed:11sm/s;Warranty:2 years;
Key Selling Points:Multifunctional;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Construction works ,Rubber Vulcanizer Supplier;
hot pressure plate:300*300mm;

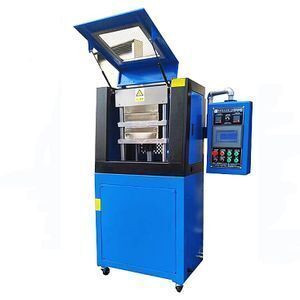

Rubber vulcanizer

Product Description

Instruction:

The material is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature,make the material shaping,testing and serving as the basis for the ingredient of mass production.



Technical Parameters:

Capacity

10~50ton  ( Option )

Temp. Range

Room temp. ~300℃

Temp. Controller

LED Indicator,press key set input, the value indicate output

Timer

LED display,time range 0.1S~99min~9.9hr

Heating type

Electrical Heating module

Hot pressure plate

300×300mm ( can be customized)

Cold pressure plate

300×300mm ( can be customized)

Distance of pressure plate

100mm

Pressure material

SKD chromium-molybdenum alloy

Pressure surface

Mirror chrome plated

Cooling temperature scope

Room temp. ~+5℃

Cooling type

Tap water cooling/compressor cooling water(optional)

Oil pressure system

The proportion hydraulic pressure current capacity loop circuit control

system, the GPY oil pump driver high performance electroencephalographic

matching high accuracy non resistance piston of oil cylinder carry

out constant speed rate control mode, can p reelection one, two

times pressure and time.

Oil cylinder stroke

Max 200mm

Oil cylinder speed

11mm/s

Pressure gauge

0~350kg/sq.cm

power

10.6HP

Dimension W×D×H

1000×500×1500 mm

Power supply

3, AC380V,20A

Weight

About 658kg
