UT-A2100 Portable Heat Press Machine PVC Conveyor Belt Vulcanizing Machine Air-cooled Crimping Machine

Supplier: Tianjin Utuo Business Co., Ltd.
Region: Tianjin, China
Contact: Ms Alice Li
Price: $3850.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power (kW):	8.8 kW	Video shipment inspection:	if
brand:	uto	Supply capacity:	100 pieces per month
Belt Width:	300mm-3000mm	cooling system:	air transport
payment terms:	L/C, Western Union, D/P, T/T	Health status:	new
Main selling points:	competitive price	port:	Tianjin
Applicable industries:	Clothing store, building supply store, manufacturing plant, machinery repair shop, food and beverage factory, farm, retail, food store, print shop, construction, energy and mining, food and beverage store, advertising agency	Weight (kg):	116 kg
Advantage:	portable	Mechanical test report:	if
Auxiliary materials:	High temperature resistant Clot/PVC PU film	place of origin; place of origin:	Tianjing, China
Stitching time:	12 minutes	Packaging Details:	Flight Cases and Wooden Cases
Voltage:	220/380V	type:	Vulcanizing machine
Core components:	motor, water pump	Material:	aluminum alloy
Warranty:	1 year	Maximum temperature:	200℃
Package preview:		Showroom location:	not any
Marketing Type:	2019 Hot Products	Effective width:	130mm
usage:	PVC PU with welding	Core component warranty:	1 year

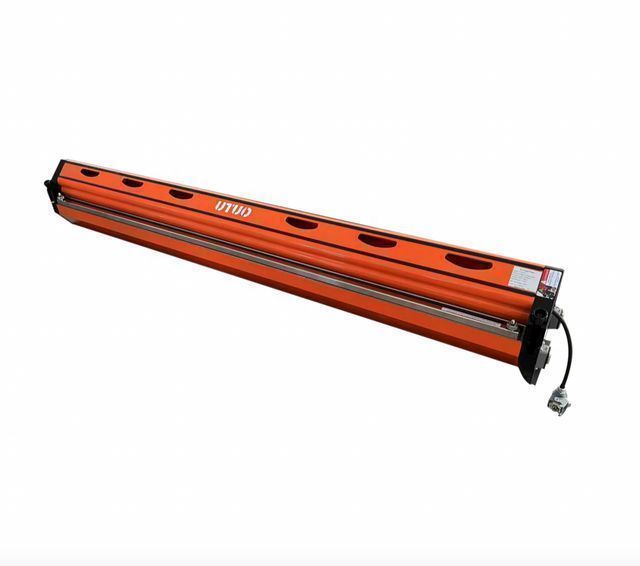

Portable heat welding machine PVC conveyor belt vulcanizing machine

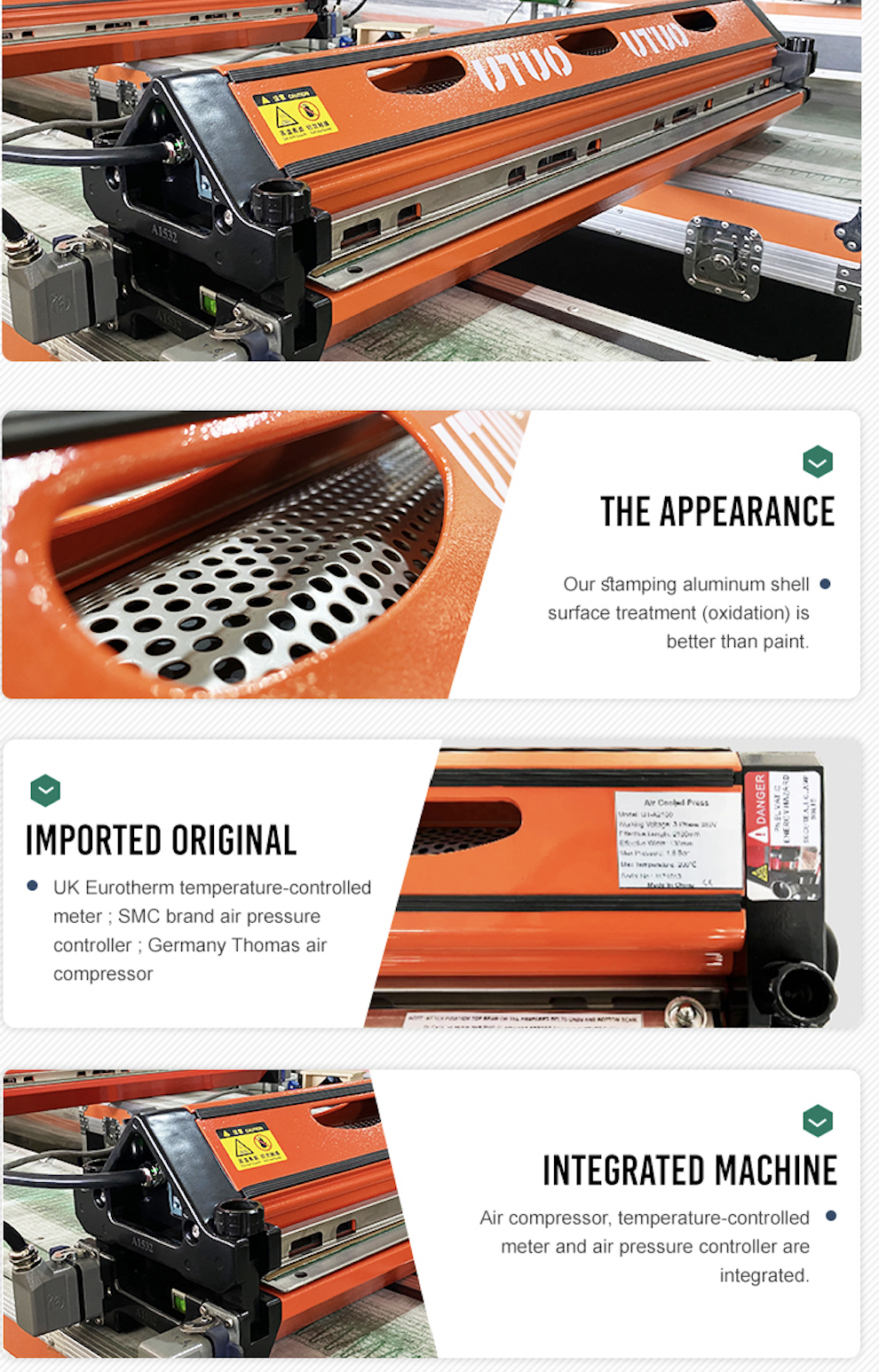

The air-cooled press is suitable for 300mm-2100mm belt models. The press is divided into upper and lower parts, each with stainless steel plate, silicon rubber heating element and temperature measuring probe. The width of the heating surface is 130MM. Fully automatic programming process with built-in controllers (pressure, heating, holding time and cooling) with four multi-directional wheels and a HA bellows.

In the instrument design framework, the whole process is automatically controlled, the cooling temperature and pressure have been determined, once the temperature reaches the set temperature, the holding time is automatically started, and the cooling fan is automatically started after the holding time is set.

Application: PVC conveyor belt, PU conveyor belt.

Voltage: 220V or 380V

Fast splicing: within 12 minutes including heating and cooling time

Portable Heat Splicer Data Sheet PVC Conveyor Belt Curing Machine

Model	UT-A300	UT-A600	UT-A900	UT-A1200	UT-A1500	UT-A1800	UT-2100
Effective length	385mm/15.2 inches	685mm / 27″	985mm /38.8″	1285mm/50.6 inches	1585mm/ 62.4″	1885 mm / 74.2"	2185mm/86"
effective width	130 mm/5.1 inches	130 mm/5.1 inches	130 mm/5.1 inches	130 mm/5.1 inches	130 mm/5.1 inches	130 mm/5.1 inches	130 mm/5.1 inches
weight reduction	16 kg	16 kg	30 kg	34 kg	41 kg	56 kg	65 kg
weight upper	9 kg	13 kg	17 kg	21 kg	26 kg	44.2 kg	51 kg
gross weight	25 kg	36 kg	47 kg	55 kg	67 kg	100.2 kg	116 kg
total height	220mm	220mm	220mm	220mm	220mm	330mm	330mm
length	405mm	605mm	1105mm	1405mm	1705mm	2030mm	2310mm
maximum. pressure	2 bar / 28 psi	2 bar / 28 psi	2 bar / 28 psi	2 bar / 28 psi	2 bar / 28 psi	1.83 bar / 26.5 psi	1.83 bar / 26.5 psi
maximum temperature	200℃/390℉	200°C/ 390°F	200°C/ 390°F	200°C/ 390°F	200°C/ 390°F	200°C/ 390°F	200°C/ 390°F
Package dimensions	850x450x550mm	1150x450x550mm	1450x450x550mm	1750450550mm	2050450550mm	2350450650mm	2650450650mm
(length x width x height)	850x450x550mm	1150x450x550mm	1450x450x550mm	1750450550mm	2050450550mm	2350450650mm	2650450650mm
gross weight	53.6 kg	70.3 kg	90 kg	105 kg	122 kg	169.3 kg	209 kg
