Plasma electrode anti collision sensor cutting cutter cut torch 40 s45 PT40S/6M 1/4G back striking 100LPM 40amp

Supplier: RHK TECH Welding Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Cathy Yu
Price: $45.80 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

Product name:	Plasma torch PT40/4M 1/4G back striking;	Welding Capacity:	Excellent;
Packaging Detail:	Exporting standard carton:1pc in strong box , 5pcs in carton.;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Brand Name:	RHK;	Gas Pressure:	4.5-5.0 Bar;
Port:	shanghai;	Gas:	Air/N2;
Certificate:	CE;	Model Number:	PT40S;
Supply Ability:	5000 Set/Sets per Month;	Current:	40Amp;
Gas Flow:	100 LPM;	Lgnition:	Without HF;
Model:	Plasma torch PT40/4m direct;	Post Flow:	35 sec.recommended;
Place of Origin:	Jiangsu China;

Product Description

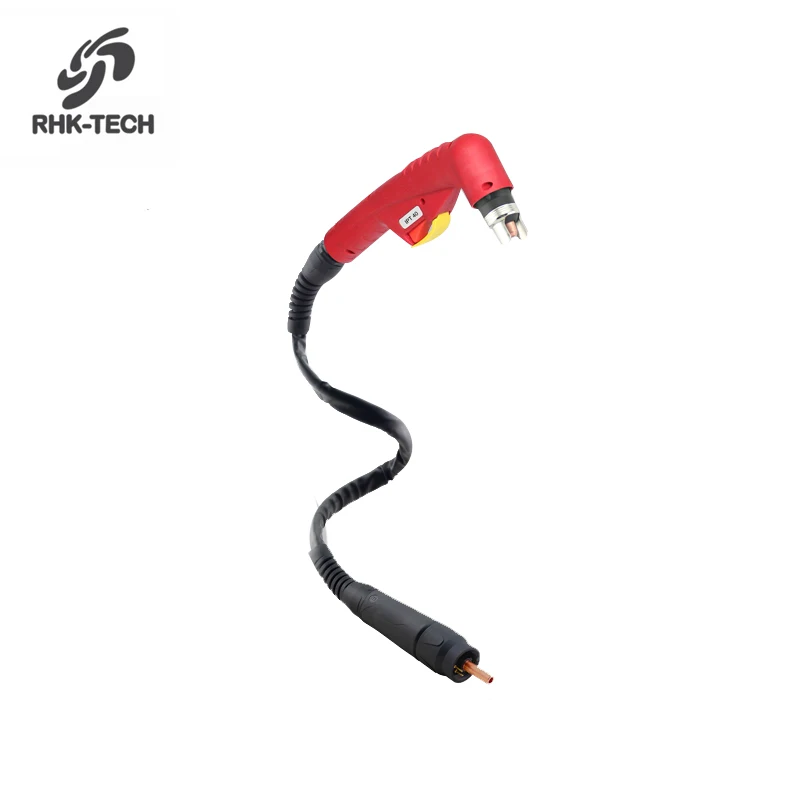

PT40

Technical	Data
Commodity Name	Plasma Torch
Current	40 AMP
Duty Cycle	60%
Gas	Air/N2
Gas Pressure	4.5-5.0 Bar
Gas folw	100 LPM
Lgnition	Without HF
Post Flow	35 Sec recommended
Standard Length	6M

Complete torch

Ref	Description
	Plasma torch PT40/4M direct
	Plasma torch PT40/4M direct back striking
	Plasma torch PT40/4M direct 1/4G
	Plasma torch PT40/4M direct 1/4G back striking
	Plasma torch PT40/6M direct 1/4G
	Plasma torch PT40/6M direct 1/4G back striking
	Plasma torch PT40/6M direct 1/4G separated
	Plasma torch PT40/6M direct 1/4G separated back striking
	Plasma torch PT40/6M central Adaptor
	Plasma torch PT40/6M central Adaptor back striking

Spare parts for plasma torch

Position	Ref	Description
1		Double pointed spacer/LT60
2		Outside nozzle
2.1	PC0116	Outside nozzle 6 holes
2.2		Outside nozzle/maximum life
3		Tip
3.1	PD0116-06	Tip Φ0.6mm/10-20A PT25-40
3.2	PD0116-08	Tip Φ0.8mm/20-30A PT25-40
3.3	PD0116-09	Tip Φ0.9mm/30-40A PT25-40
4		Tip
4.1		Tip Φ0.6mm/10-20/back striking
4.2		Tip Φ0.8mm/20-30/back striking
4.3		Tip Φ0.9mm /30-40A /back striking
4.4		Tip Φ1.0mm /40-50A/back striking
5		Tip Φ0.9mm/30-40A/back striking
6		Tip
6.1		Flat tip Φ0.9mm /30-40A/back striking
6.2		Flat tip Φ1.0mm /40-50A/back striking
7		Tip
7.1		Extended tipΦ0.6mm//10-20A/back striking
7.2		Extended tipΦ0.8mm/20-30A/back striking
8		Extended tipΦ0.9mm/30-40/back striking
9	PE0106	Diffuser PT25-40
10	PR0110	Electrode Plasma PT25-60
11		Electrode Plasma PT25-60 back striking
12		Extended electrode Plasma PT25-60 back striking
13		Plasma torch head PT40
13a		“O” ring Φ15*18mm
14		Plasma handle manual/PT20-60/Red
