Air and water inflatable packer for grouting fracturing sealing and Permeability testing
- 10.00 piece
| Type: | Packer; | Packaging Detail: | in seaworthy package; |
| Port: | Qingdao, Tianjin; | Applicable Industries: | Energy & Mining; |
| Usage: | grouting hydro fracturing sealing and Permeability testing; | Payment Terms: | L/C,T/T; |
| Hole Size: | B, N, H, P Size; | Supply Ability: | 5000 Piece/Pieces per Month; |
| Name: | Air and water inflatable packer; |

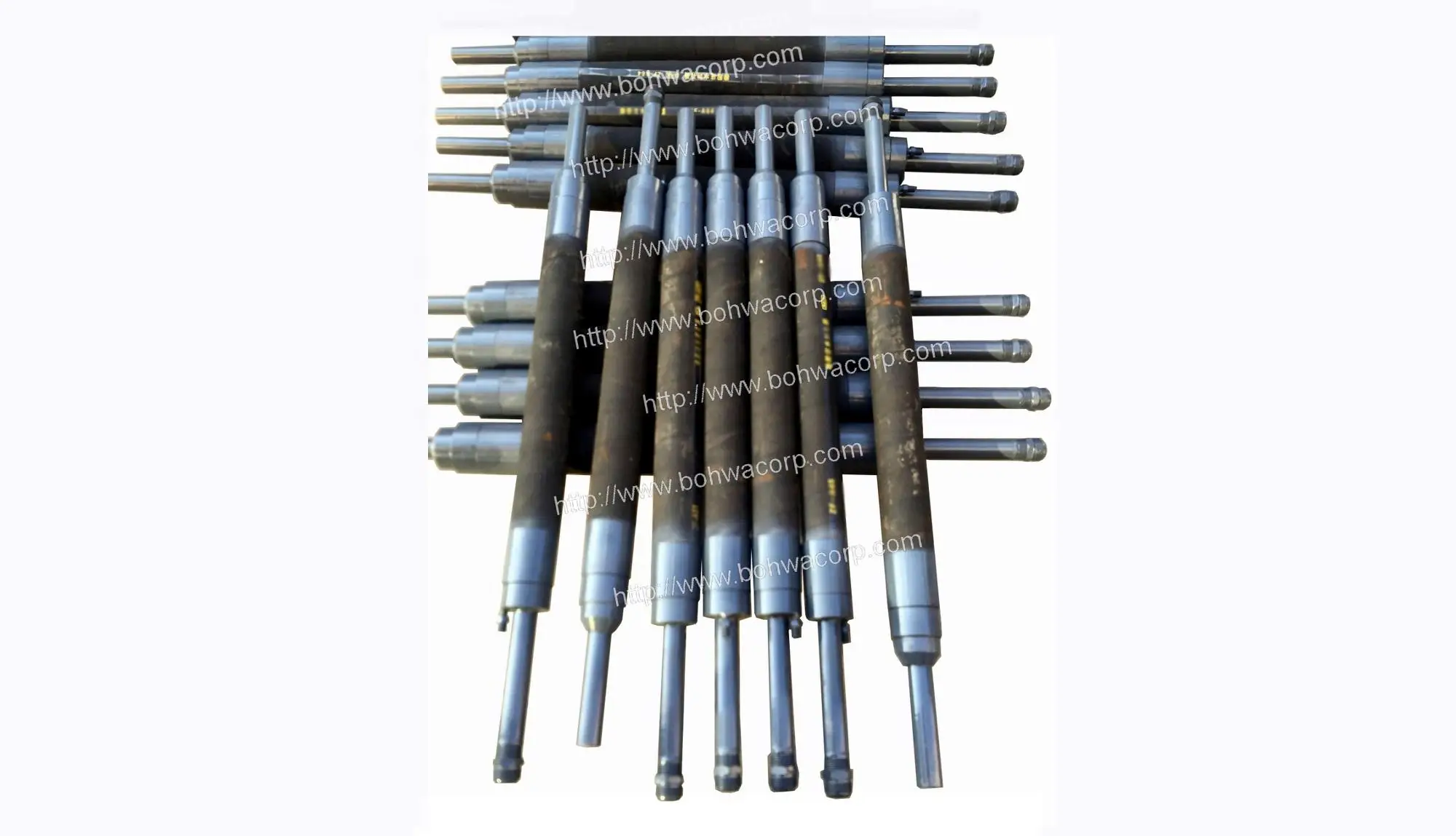

Air and water inflatable packer for grouting, oil fracturing sealing, and permeability testing
Adapted to a wide range of B, N, H, P drilling hole diameters. The packers are highly flexible and can be inflated with different fluids, durable and versatile.
Other Dia. can be customized.
APPLICATIONS:
1. Pressure Grouting in Fractured or Unconsolidated Borehole Or Rock Formations
2. Water Infusion for Dust Control in Coal Mines
3. Methane Gas Control and Collection in Mines
4. Sealing Elements in Soil or Boreholes
5. Water Sampling Testing
6. Hydraulic Fracturing Testing
7. Permeability Testing
8. Quality Control Testing of Tubes
9. Bore-Hole Fluid Sampling,
10. Bore-Hole Wall Impression Testing
11. Industrial Piping Hydro-Testing,
12. Water Wells Repair
13. Aquifers Monitoring

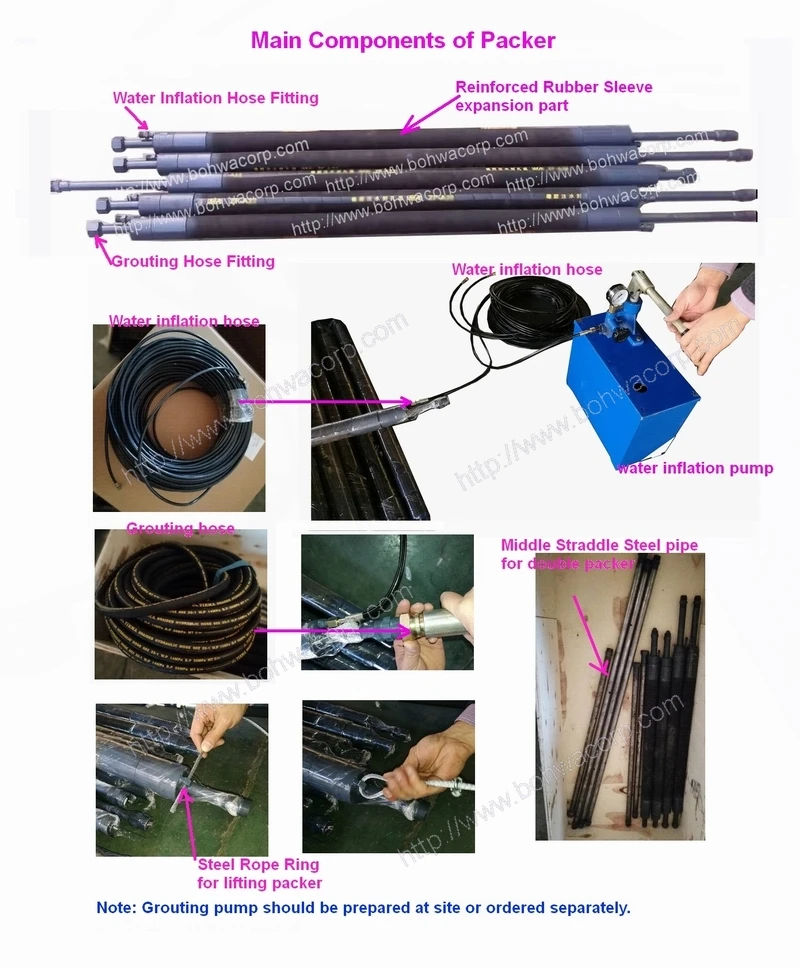

STRUCTURE:

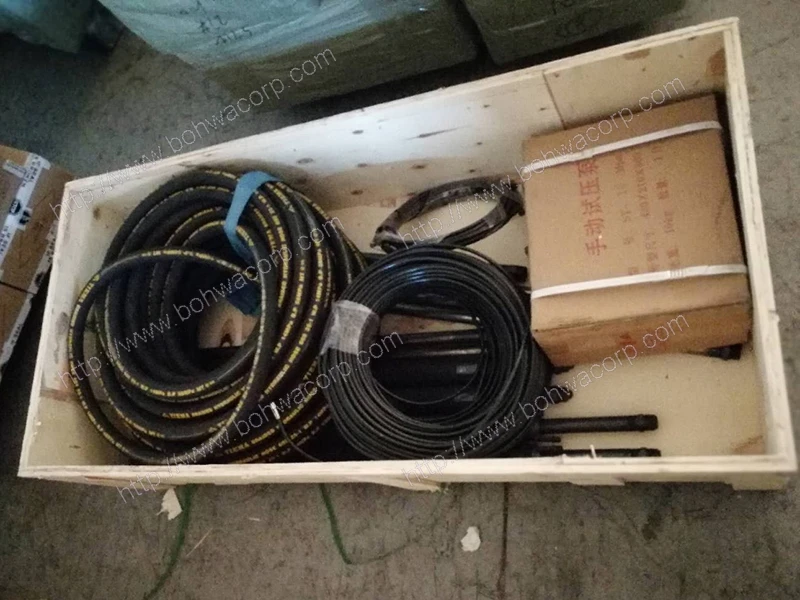

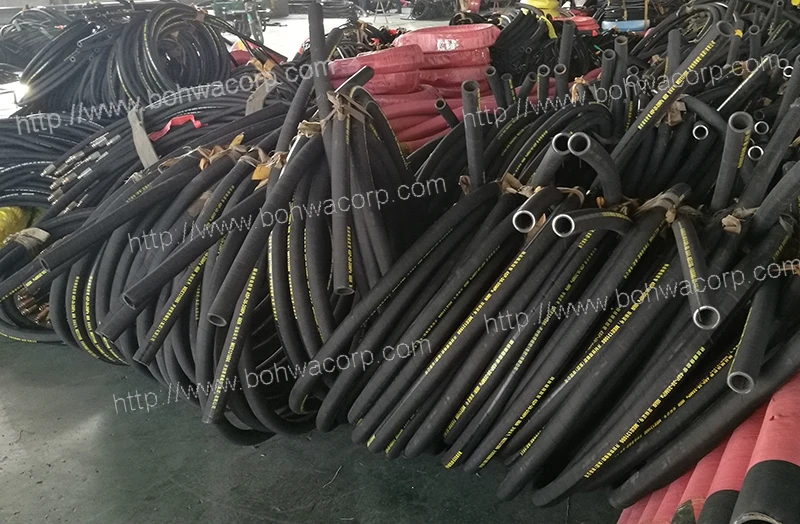

It is a versatile tool for a wide range of hole sizes and depths. Standard construction includes steel metal parts and a reinforced rubber sleeve element, rubber grouting hose, water/air inflation hose, manual water pump for supplying inflation water, straddle steel pipes, etc.
Rubber membrane reinforced
Abrasive resistant rubber
Extensible Steel fabric
All above elements, size and length can be customized
| Packer Size | O.D. Deflated,mm | Expansion O.D. mm | Suitable Hole Dia. Mm | Work Pressure ≤Mpa | Pressure Mpa | |
| Proof | Max. Burst | |||||
| φ32-2 | 50±1.3 | 90 | 60 | 6 | 12 | 24 |
| φ38-2 | 55±1.3 | 95 | 65 | 5 | 10 | 20 |
| φ45-2 | 63±1.3 | 100 | 75 | 4 | 8 | 16 |
| φ45-4 | 69±1.5 | 100 | 75 | 16 | 24 | 32 |
| φ51-2 | 69±1.5 | 110 | 90 | 4 | 8 | 16 |
| φ51-4 | 75±1.5 | 110 | 90 | 16 | 24 | 32 |
| φ64-2 | 84±2.0 | 120 | 100 | 3 | 6 | 12 |
| φ64-4 | 90±2.0 | 120 | 100 | 8 | 12 | 16 |
| φ76-2 | 94±2.0 | 130 | 110 | 3 | 6 | 12 |
| φ76-4 | 99±2.0 | 130 | 110 | 8 | 12 | 16 |
| φ89-2 | 109±2.0 | 140 | 130 | 3 | 6 | 12 |
| φ102-2 | 122±2.0 | 160 | 150 | 3 | 6 | 12 |
Note: To save your time, it is important to know following basic information when choosing the rubber hose
1) Usage:
2) Borehole Dia.
3) Gland Rubber Sleeve Length (if any requirement),
4) Single or double packer request:
5) Steel joint pipe length (Straddle zone length if any request in double packer)
