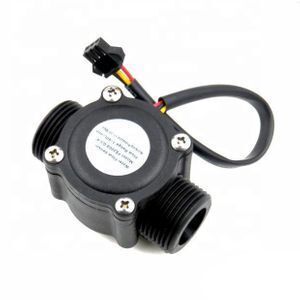

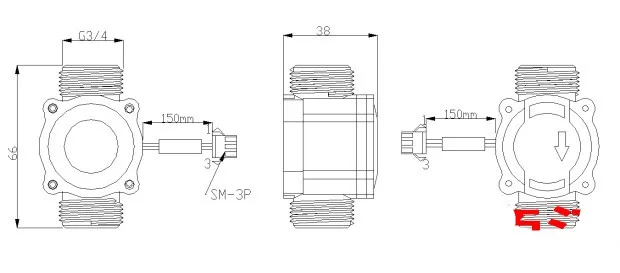

FS300A water flow sensor g3/4 high precision flow meter automatic selling water meter

Product features:

1. This product is light and convenient in appearance, small in size and easy to install.

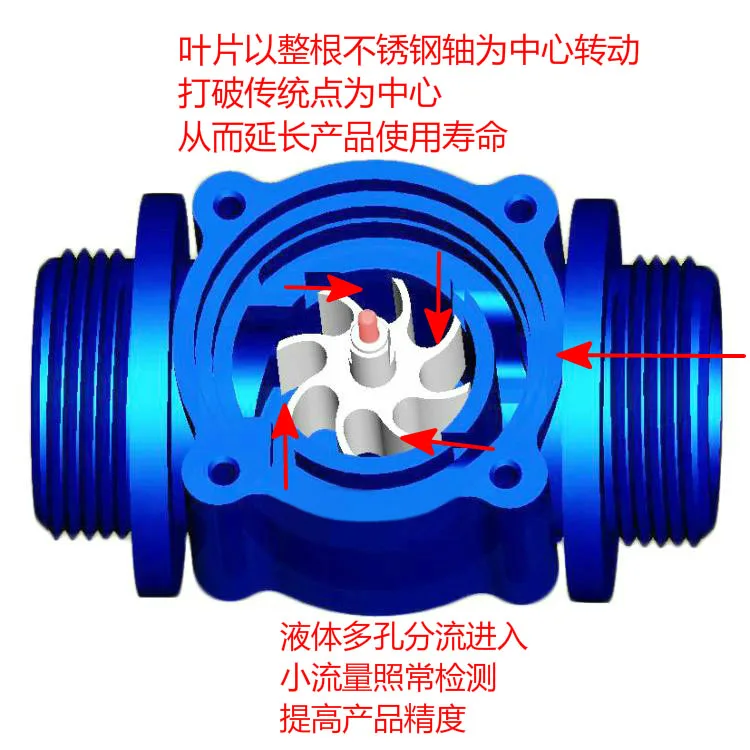

2, the inner set with stainless steel bead shaft, impeller from the traditional rotation around the point to extend the life of the face.

3, porous shunt water small flow does not leak, and keep the blade constant rotation, sealing ring with the upper and lower force structure never leak.

4. Hall components are imported, isolated and waterproof.

5. All raw materials meet ROHS testing standards.

Product profile:

The water flow sensor is mainly composed of plastic valve body, water flow rotor assembly and hall sensor.It is installed at the water inlet end of the water heater and is used to measure the inflow rate as water passes through the flow rotor assembly.

The magnetic rotor rotates and the rotation speed changes with the flow rate.

The hall sensor outputs the corresponding pulseThe signal is fed back to the controller, which judges the size of water flow and regulates it.

Precautions for use:

Severe shock and chemical erosion are strictly prohibited.

Throwing or bumping is strictly prohibited.

Medium temperature should not exceed 100 degrees.

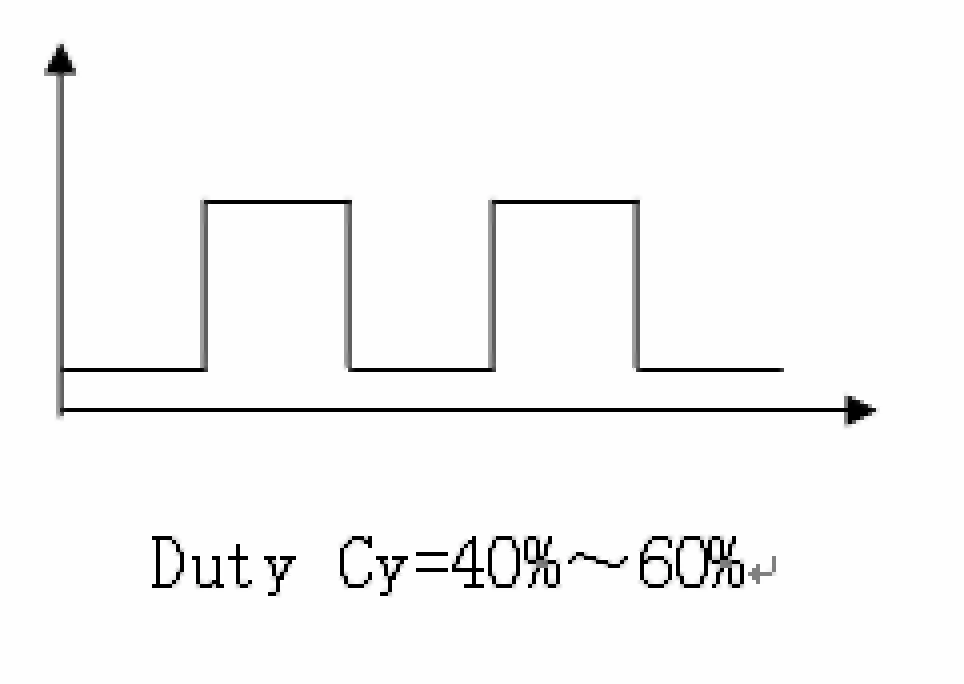

Output waveform: square wave

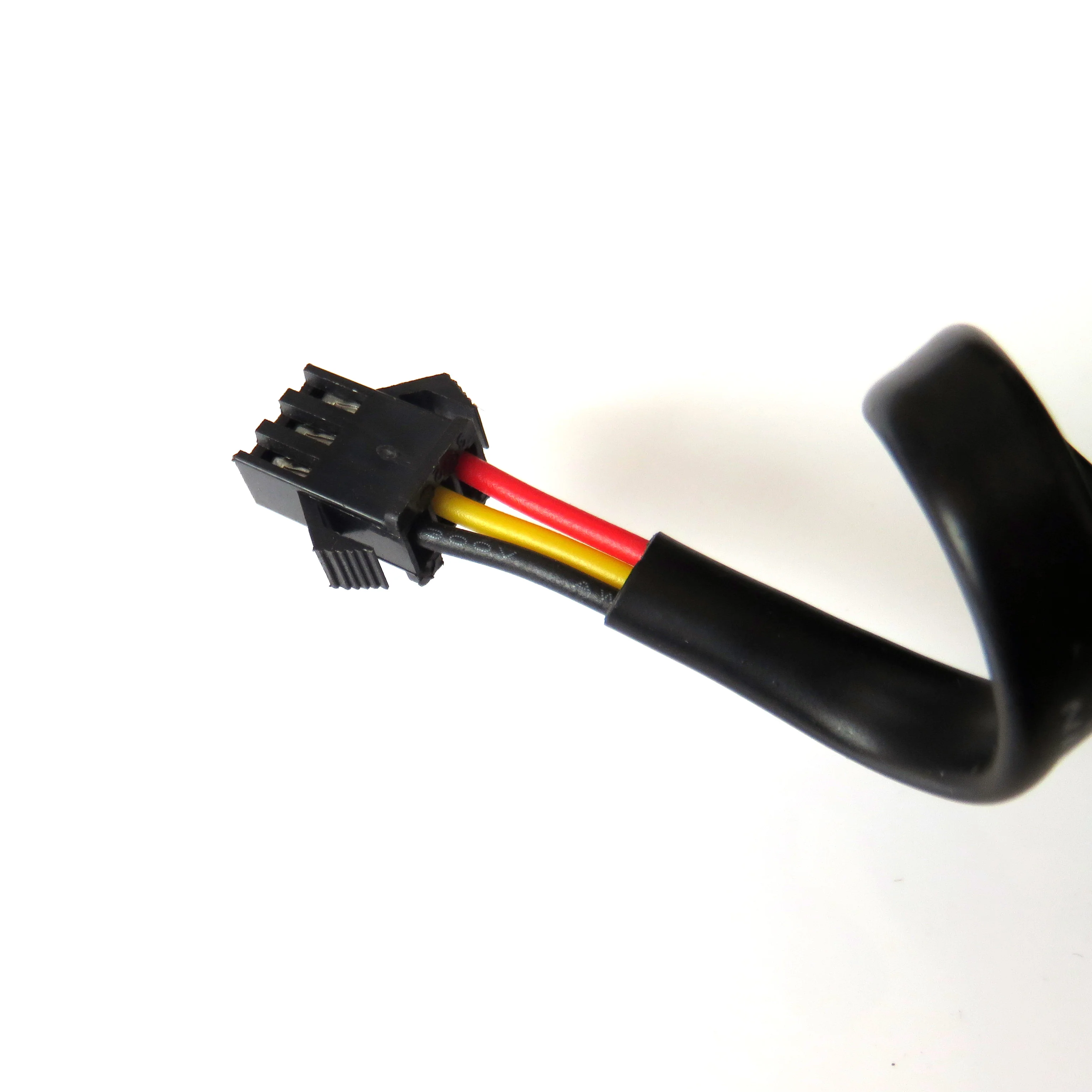

Outgoing line:

1 red IN to the positive pole

2. Yellow OUT signal output line

3 black GND with negative electrode

Frequency: F=5.5*Q(L/Min) error: ±2%That is, frequency calculation = constant 5.5* unit flow (L/min) * time (s) flow range: 1-60l /min

Technical parameters

Scope of application:		Suitable for water heater, card reader, automatic selling machine, and other flow measuring equipment!
The basic parameters	1,Minimum rated working voltage	DC4.5 5V-24V
	2,15 mA(DC 5V)
	3,Maximum operating current	DC 5~18 V
	4,Load capacity	≤10 mA(DC 5V)
	5,Operating temperature range	≤80℃
	6,Operating humidity range	35%~90%RH(no frost)
	7,Allow the pressure	The water pressure is below 1.75Mpa
	8,Keep the temperature	-25~+ 80℃
	9,Save the humidity	25%~95%RH
The technical requirements	1,High output pulse level	>DC 4.5 V (input voltage DC 5v)
	2,Output pulse low level
	3,Fine degree of(flow -- pulse output)	1~60 L/min±1% within
	4,Output pulse duty ratio	50±10%
	5,Output rise time	0.04μS
	6,Output descent time	0.18μS
	7,Flow - pulse characteristics	Horizontal test pulse frequency (Hz)=[6*Q]±2%(horizontal test) (Q is flow rate L/min)
	8,Impact resistance	The product is packaged and falls freely to the concrete surface from the height of 50cm in the direction of X,Y and Z. There is no abnormality.Within 10% change in accuracy.
	9,Insulation resistance	Hall sensor and insulation resistance between copper body above 100 m Ω. (DC 500 v)
	10,Heat resistance	Placed in the environment of 80±3℃ for 48h, returned to the normal temperature of 1-2h without abnormal, and parts without cracks, relaxation, expansion, deformation and other phenomena, accuracy change within 10%.
	11,Cold tolerance
	12,Wet resistance	Placed in the environment of -20±3℃ for 48h, returned to the normal temperature of 1-2h without abnormal, and parts without cracks, relaxation, expansion, deformation and other phenomena, accuracy change within 10%.
	13,The intensity of drawing	The pull force of 10N was applied on the lead wire for 1 minute, without any loosening or breaking, and the performance was unchanged.
	14,The durability of	At normal temperature, 0.1mpa water pressure is applied from the water inlet to connect 1S and turn off 0.5s for a cycle.There was no abnormality in the 300,000 tests.
