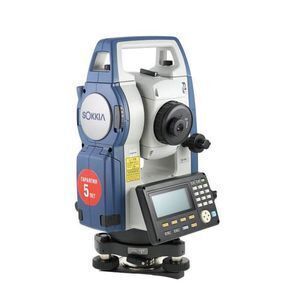

high-accuracy Original Sokkia IM52 Reflector-less Total Station

Supplier: Shenzhen Pengjin Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr PJ Manager
Price: $2500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Brand Name:	Sokkia;	Supply Ability:	100 Unit/Units per Month;
Port:	SZ or HK;	Name:	Sokkia IM-52;
warranty:	1 year;	Payment Terms:	L/C,T/T,Western Union;
accuracy:	2";	Model Number:	Sokkia IM-52;
Display:	Dual faces;	Packaging Detail:	net weight:5kg, external carton: 444652cm;
Place of Origin:	Japan;

High-accuracy Original Sokkia IM52 Reflector-less Total Station

Product Description

High Quality, High Return!
1.Construction and Survey Application Software
2.Fast & Accurate & Powerful Measuring Distance Feature
3.500m Long Range Refectorless Measurement
4.Rugged & Waterproof Design
5.Reliable Large Volume Internal Memory

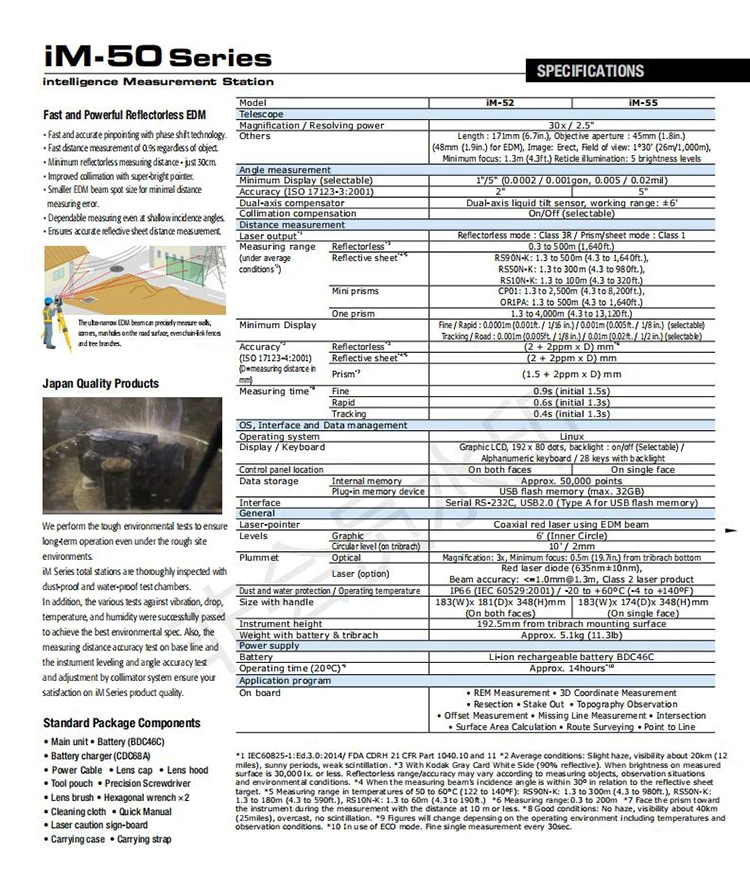

Specification

Model	iM-52
Telescope
Magnification/Resolving power	30x / 2.5"
Others	Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1¡ã30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels
Angle measurement
Minimum Display (selectable)	1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001)	2"
Dual-axis compensator	Dual-axis liquid tilt sensor, working range: ¡À6'
Collimation compensation
Laser output	Reflector mode: Class
