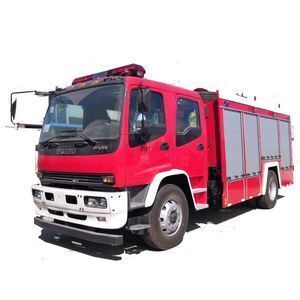

Japan brand new fire truck, china fire truck, fire fighting truckwith good price for sale

Vehicle parameters

Vehicle Model

EHY5160GXFSGQ

Vehicle Brand

ISUZU

Overall dimensions

8360X2485X3420mm

Curb weight

9700kg

Water tank volume

5500L

Chassis parameters

Chassis model

QL1180XMFRY

Chassis brand

ISUZU

Overall dimensions

7570×2490×2810mm

Wheel base

4500mm

Front/rear wheel track

1960/1855mm

Front/rear suspension

1335/2225mm

Approach/departure angle

15/17°

Maximum speed

95km/h

Chassis Manufacturer

QingLing Motors (Group) Co., Ltd.

Cab

Configuration

FVR,double rows cab,allowable 3+3 passengers,with air conditioner, central locking, electric windows, USB audio, cab can be flipped.

Color

Red,other color is optional

Engine

Model

6HK1-TCL

Emission

Euro 5

Type

6 cylinders, in-line, 4-stroke, Exhaust gas turbo, air-to-air inter-cooling, diesel engine

Rated power

240hp

Displacement

7790ml

Manufacturer

Isuzu Engine (Chongqing) Co., Ltd.

Tire

Size

295/80R22.5 tubeless tyre

Number

6+1 nos

Front axle

6.3 tons

Rear axle

13.0 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Isuzu MLD six speed transmission,6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper-Body specification

Water tank

Volume

5500L

Material

high quality carbon steel plate, anti-rust treatment inside.

Fire fighting pump

Model

Shanghai Rongshen CB10/40

Max working pressure

1.251Mpa

Max allowable entrance pressure

0.4Mpa

Flux:

Water 40L/S

Suction depth

≥ 7m

Suction time

≤35s

Fire knozzle

Model:

Shandong Yunhu PS40

Range:

≥ 55m

working pressure

≤1.0(Mpa)

Horizontal rotation angle

360 º

color

The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck
