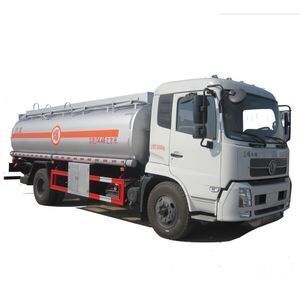

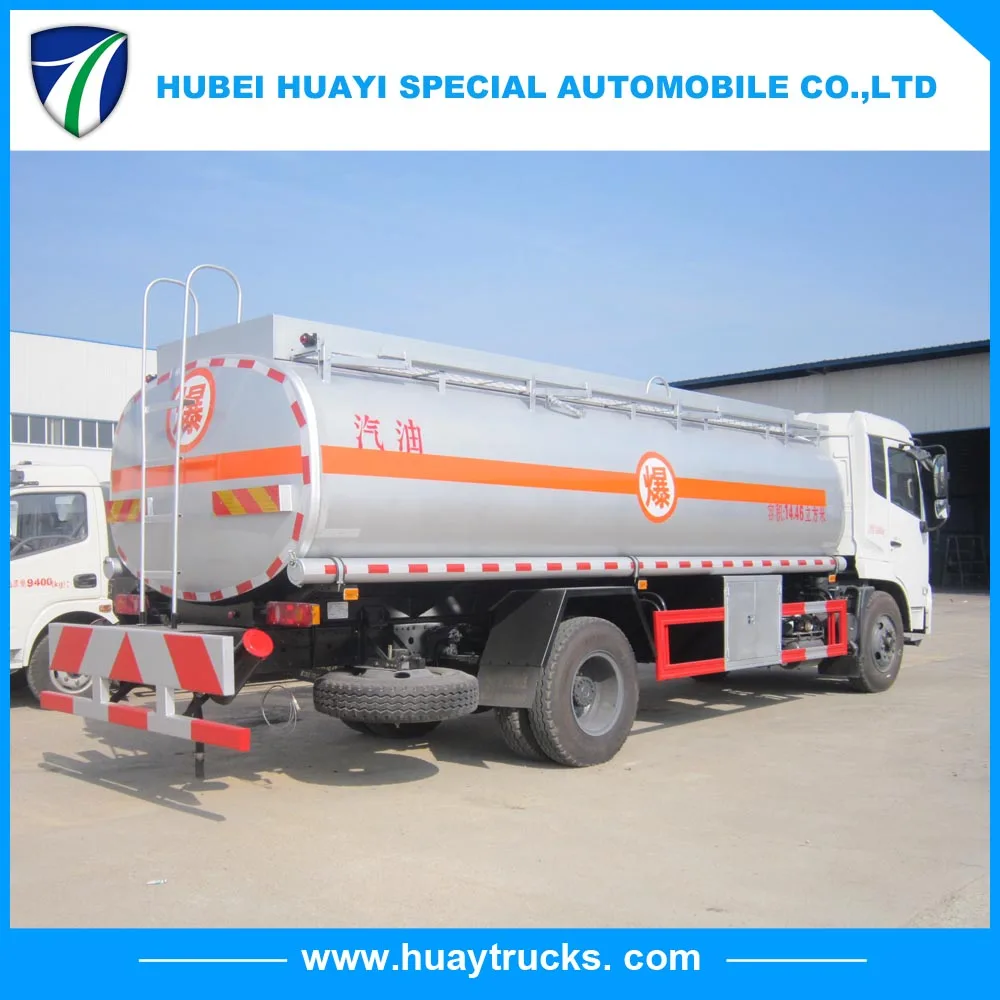

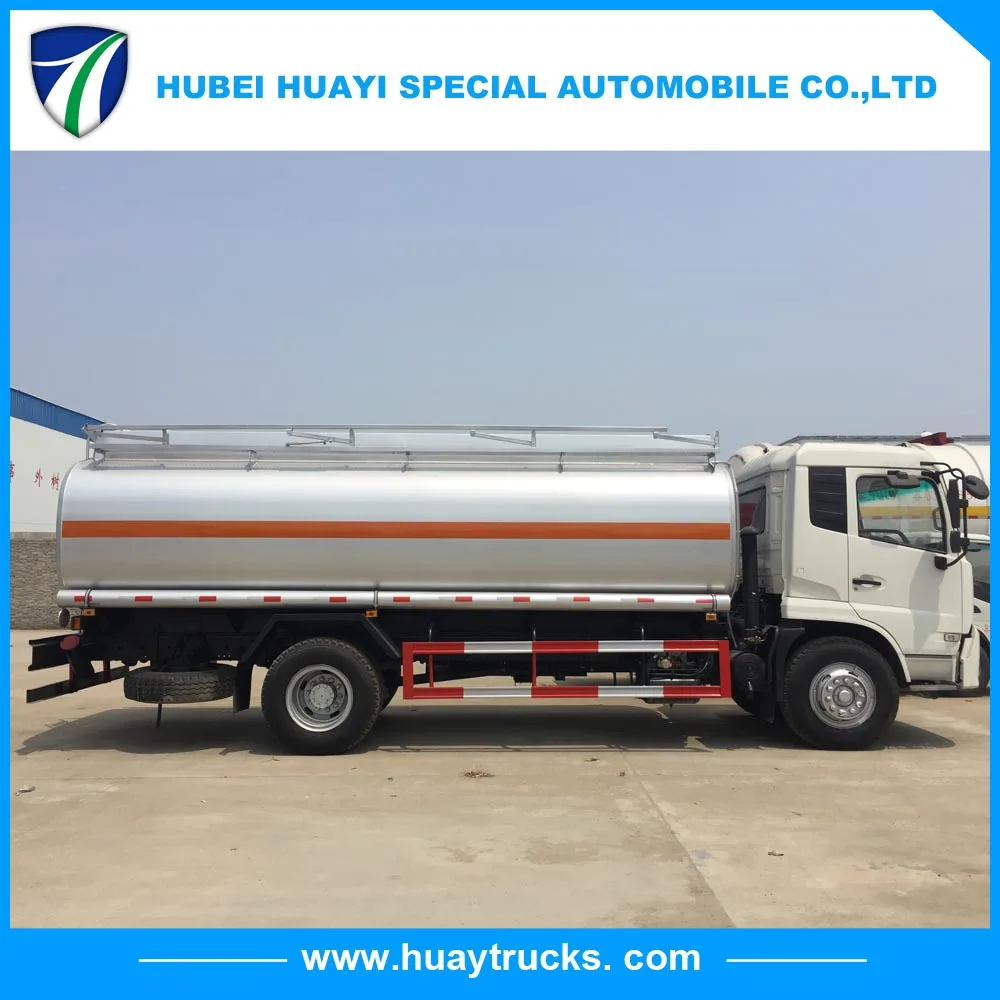

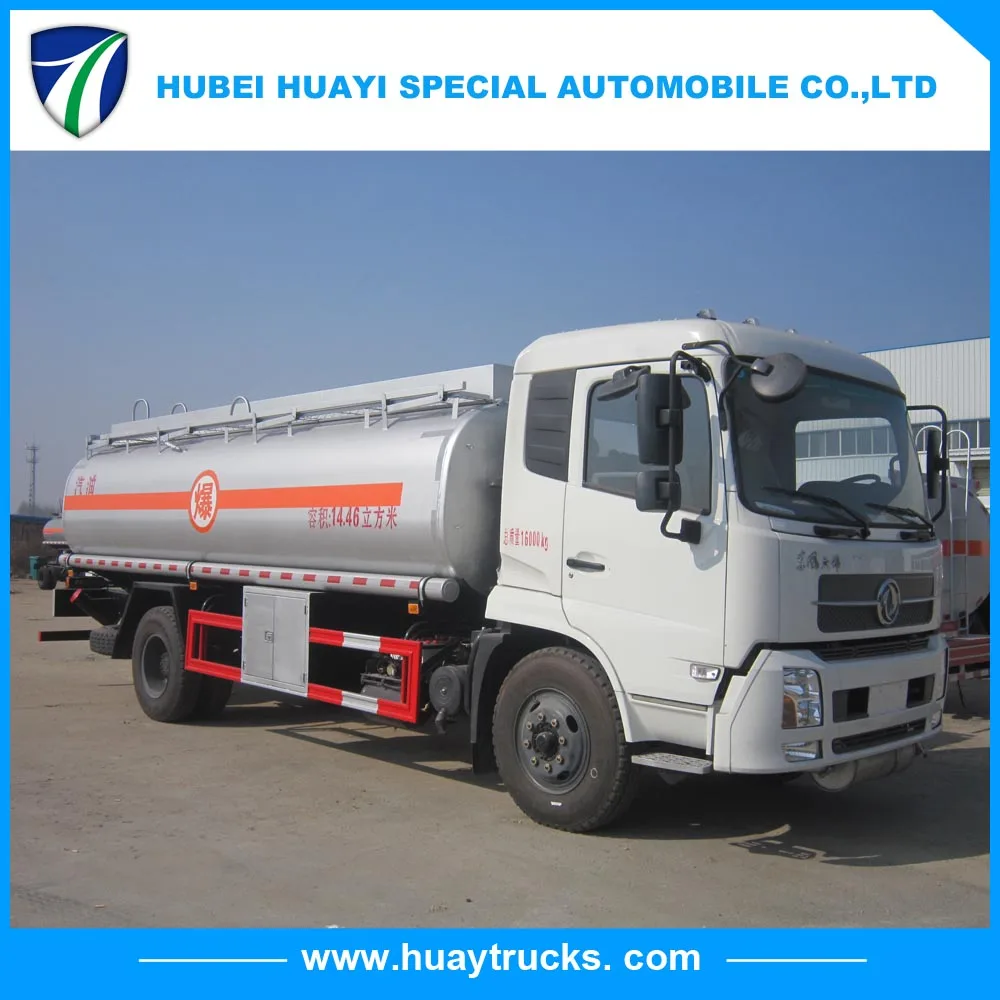

Dongfeng Kingrun 4x2 15000L fuel tank truckfuel tanker truck, oil tank truck factory supply

Chassis parameters

Chassis model

EQ1164GKJ

Chassis brand

DONGFENG

Overall dimensions

8290x2370x2760mm

Wheel base

4500mm

Front/rear wheel track

1880/1800mm

Front/rear suspension

1430/2160mm

Approach/departure angle

20/13°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

D913 a row and a half deluxe cab(with sleeping berth),,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 3 passengers

Color

white,other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

640N·m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

9.00-20 nylon tire

Number

6+1 nos

Clutch

push type diaphragm spring clutch,Φ395mm

Frame

(250x80x[7+4])mm

Fuel tank

160L,steel

Front axle

3.6T

Rear axle

9.0T main reduction ratio 5.286

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox DF6S750, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Steel wire tire

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Fuel tank structure parameters

Tank dimensions

6200×2050×1445mm

Tank volume

15000L

Tank material

Carbon steel

Tank thickness

5mm

Color and Logo

Optional

Standard configuration

Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.

Selective configuration

Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.
