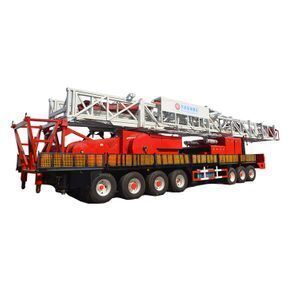

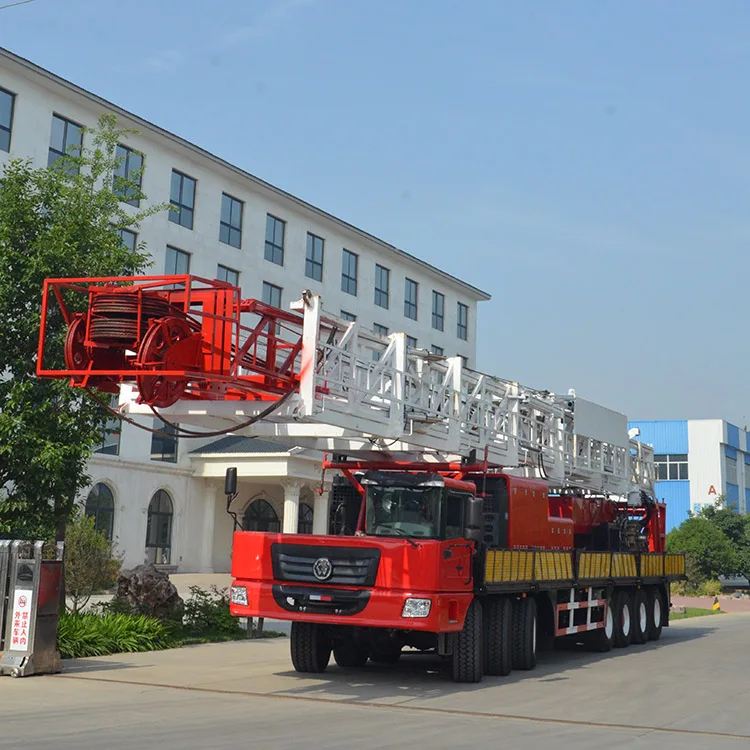

API Standard Oil Field workover rig XJ750 oilfield workover rig 750HP

Supplier: Puyang Wanglian Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms. Mary Guo
Price: $450000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power Type:	Diesel;	Applicable Industries:	oilfield;
Certification:	ISO API;	Brand Name:	Wanglian;
Condition:	New;	After-sales Service Provided:	Overseas third-party support available;
Type:	Rotary Drilling Rig;	Voltage:	24V;
Place of Origin:	Henan China;	Mast height:	38;
Max.Hook Load(KN):	1800;	Model:	XJ750;
Engine power kW(HP):	2*403;	Model Number:	XJ750;
Warranty:	1 Year;	Weight:	80t;
Usage:	Oil Well;	Workover depth m:	8000;
Size (length, width, height):	22.6m3.3m4.64m;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Supply Ability:	2 Set/Sets per Month oilfield workover rig;	Port:	China main port;
Authentication:	API;	Product name:	API Standard Oil Field workover rig XJ750 oilfield workover rig 750HP;
Full weight kg:	80000;	Dimension(LWH):	22.6m3.3m4.64m;
After-sales Service Provided:	Free spare parts, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service;	Packaging Detail:	API Standard Oil Field workover rig XJ750 oilfield workover rig 750HP packaging. And some accessories are shipped in containers.Drilling rig turkey drilling rig machine borehole drilling rig;

API Standard Oil Field workover rig XJ750 oilfield workover rig 750HP

Main Technical Parameters
Model		XJ750Truck mounted Workover Rig
Maximum Static Hook Load KN		1800 KN
Rated Hook Load KN		1500KN
Hook Speed m/s		0.11-1.15
Travel System		5X6
Mast Height m		36(Double-section, hydraulic telescopic)
Drive Type		14x8 or 12×8
Travel Speed km/h		0-45
Minmum Clearance from the Ground(mm)		270
Min turning Dia(m)		21
Full Weight(kg)		75000
Total Power(hp)		2x403
Drilling Floor	Height (m)	5
	Surface(m)	5.8×7
Size mm	Length	22300
	Width	3000
	Heigth	4450
Workover Depth (m)		8000

1.Q:Why choose us?
A:We're the factory! We can control the quality and lead time by ourselves, also we can supply you very competitive price.

2.Q:What is the material of your products?
A: The material is Steel. We can also choose material as customers’ requirements.

3.Q: What is the warranty time of your products?
A: The warranty time is 12months from the date of the commissioning, or 18months from the factory delivery, the first shall prevail. All quick-wear spare parts will be provided for free within the warranty period. After the warranty, we also can ensure that you can buy any necessary spare parts with favorable price within 5 years.

4.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.

API Standard Oil Field workover rig XJ750 oilfield workover rig 750HP
