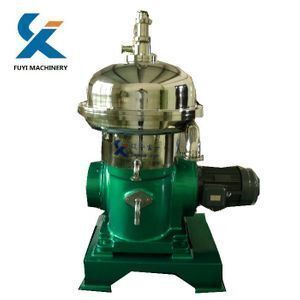

Fuyi centrifugal milk cream separator machine

Supplier: Liaoning Fuyi Machinery Co., Ltd.
Region: Liaoning, China
Contact: Ms Molly Sun
Price: $14500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Food & Beverage Factory;	Brand Name:	Fuyi;
Certification:	ISO 9001 :2008 & BV;	Processing Types:	Milk;
Dimension(LWH):	8305601300;	Single gross weight:	200 KG;
Application:	Milk skimming;	Power(W):	1.5 kw;
Package Type:	Export standard wooden packing ot customer order;	After-sales Service Provided:	Field maintenance and repair service;
Processing:	Separater;	Place of Origin:	Liaoning China;
Voltage:	customer order;	Single package size:	90X65X150 cm;
Selling Units:	Single item;	Weight:	180;
Operation:	PLC control;	Warranty:	1 year;
Condition:	New;	Model Number:	DHC250;

Milk pasteurisation

The pasteurisation line is the heart of every dairy. It ensures the necessary heating process according to the legal regulations and the technological require-ments respectively.

Besides the heat exchanger, a main component of the pasteuriser is the skimming separator which splits the milk into cream and skim milk and eliminates at the same time non-milk particles.

So, our range of wellproven milk separators together with our important process engineering expertise is a perfect basis for designing high standard milk pasteuriser units.

Our pasteurisers are used to produce a wide range of dairy products such as liquid milk (whole / standardized / skim), Rjashenka (high heated milk), cheese milk, yogurt milk, kefir milk, fresh cheese milk, whipping cream, coffee cream, cream for smetana, crème fraiche, butter making cream and others.

Milk disc centrifuge

Disk centrifuge is high efficiency,large capacity and advanced automatic machinery which is suitable for the lower suspension liquid and proportion dissolve liquid.It is the essential machinery for pharmaceutical,chemical,bioproducts and beverage etc.The principle is based on the centrifugal forces,so it can achieve the separation purpose.The Disc Stack Centrifuge superior to the other separator or centrifuge is the advanced automatic system.

Disk centrifuge can be categorize for two type based on the automatic system level:

Model DHC is the fully automatic operation,discharging,running and cleaning by the PLC controller.Another model DRY is the manual discharging which is better for the lower solid content liquid material.

Milk disc centrifuge application

1.Milk and whey cream skimming
2.Clarification of milk and whey
3.Bacteria removal from milk and whey
4.Cream concentration
5.Standardization of milk, cream and whey cream

1)Milk separator and purifier mainly used skim milk, whey separation, butter, wheat shock shower, casein, cheese production, such as anhydrous butter production process of centrifuge enrichment. And the material contact parts are made of stainless steel, in line with food hygiene requirements.

2) The Milk Cream Separator Machine: can also be used to liquid-solid twophase separation of similar materials in the industry of juice, beverage and Chinese traditional medicine, etc.

3)The machine adopts automatic control, and has the advantages such as high efficiency, low material consumption, convenient operation and economic maintenance cost.

4)The clear liquid is pumped out by centripetal pump, the sludge is discharged automatically and partly.

5)The milk cream separator machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.

Milk and Whey Cream Skimming
Separators	Skimming 500-20,000L/HR	DHC-250/500L/HR
DHC-300/1000L/HR
DHC-400/2000L/HR
DHC-500/5000L/HR
DHC-550/20000L/HR

Clarification of milk and whey
Separators	Milk/Whey 1000-20,000L/HR	DHC-250/1000L/HR
DHC-300/2000L/HR
DHC-400/5000L/HR
DHC-500/1000L/HR
DHC-550/50000L/HR
Cream Separation
Separators	Cream 300-20,000L/HR	DHC-250/300L/HR
DHC-300/1000L/HR
DHC-400/2000L/HR
DHC-500/5000L/HR
DHC-550/20000L/HR

Disc centrifuge parameters

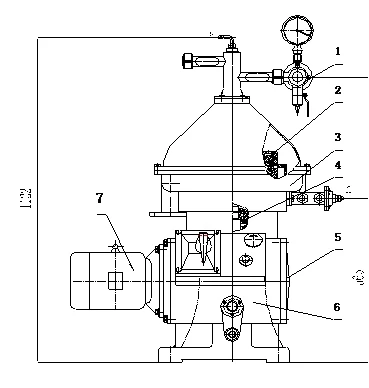

The centrifuge is mainly parts is as photo shown .

1. Inlet and outlet device. 2. Bowl Parts 3. Centrifuge cover 4. Vertical Shaft 5. Horizontal Shaft

6. Machinery Body 7. Driving Motor

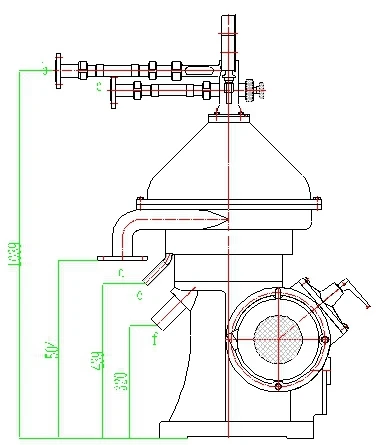

The following photo shown the main pipe of the centrifuge .

b. Liquid inlet Diameter Φ9 c. Clarify outlet Φ20 d. Discharge outlet Φ50

e. Operation water outlet Φ16 f. Operation water outlet Φ40

Standardized milk centrifuge machine material data

Bowl body , hood and locking ring S.S304

Solids cover and frame hood S.S

Frame bottom parts green cast iron , cald with

In and outlet parts S.S

Gasket and o-ring Nitrile rubber

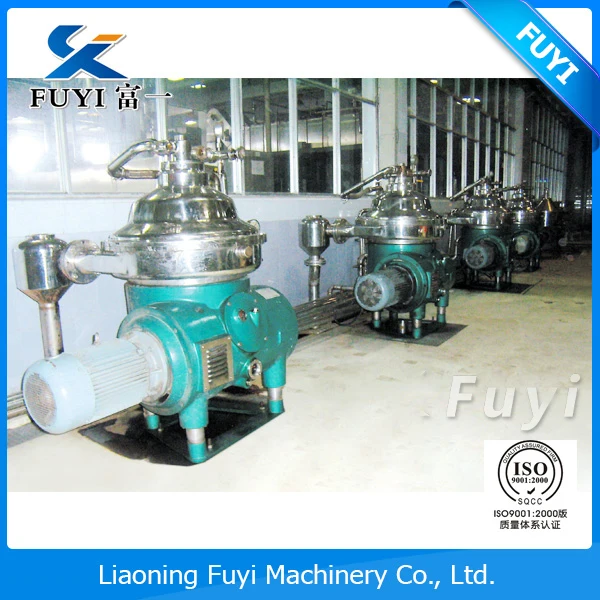

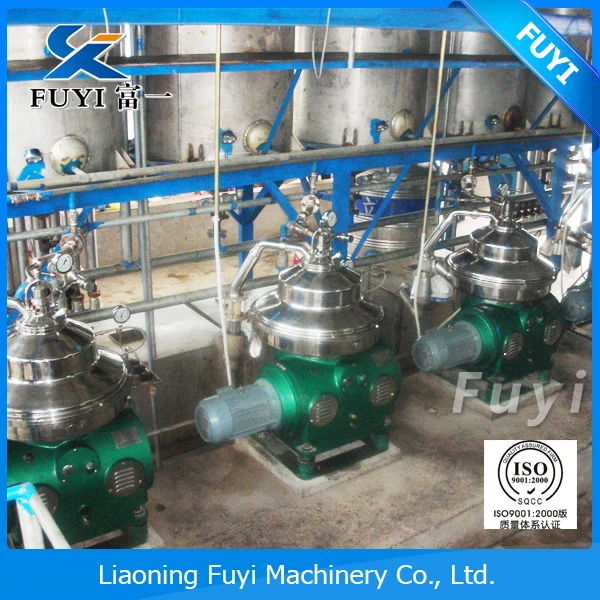

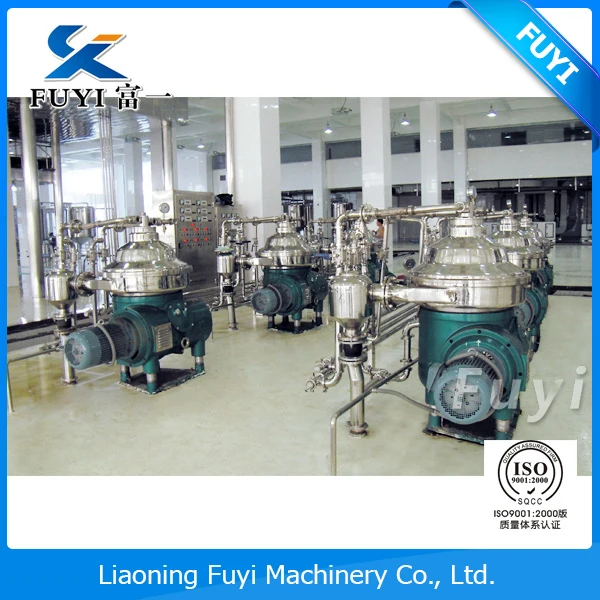

Our comapny machine

Our Services

the suggestions from our customers, and offers the all-day, all-directional and top-grade market services.
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.
4. 24-hour hot line: 86-18104024665 . Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
